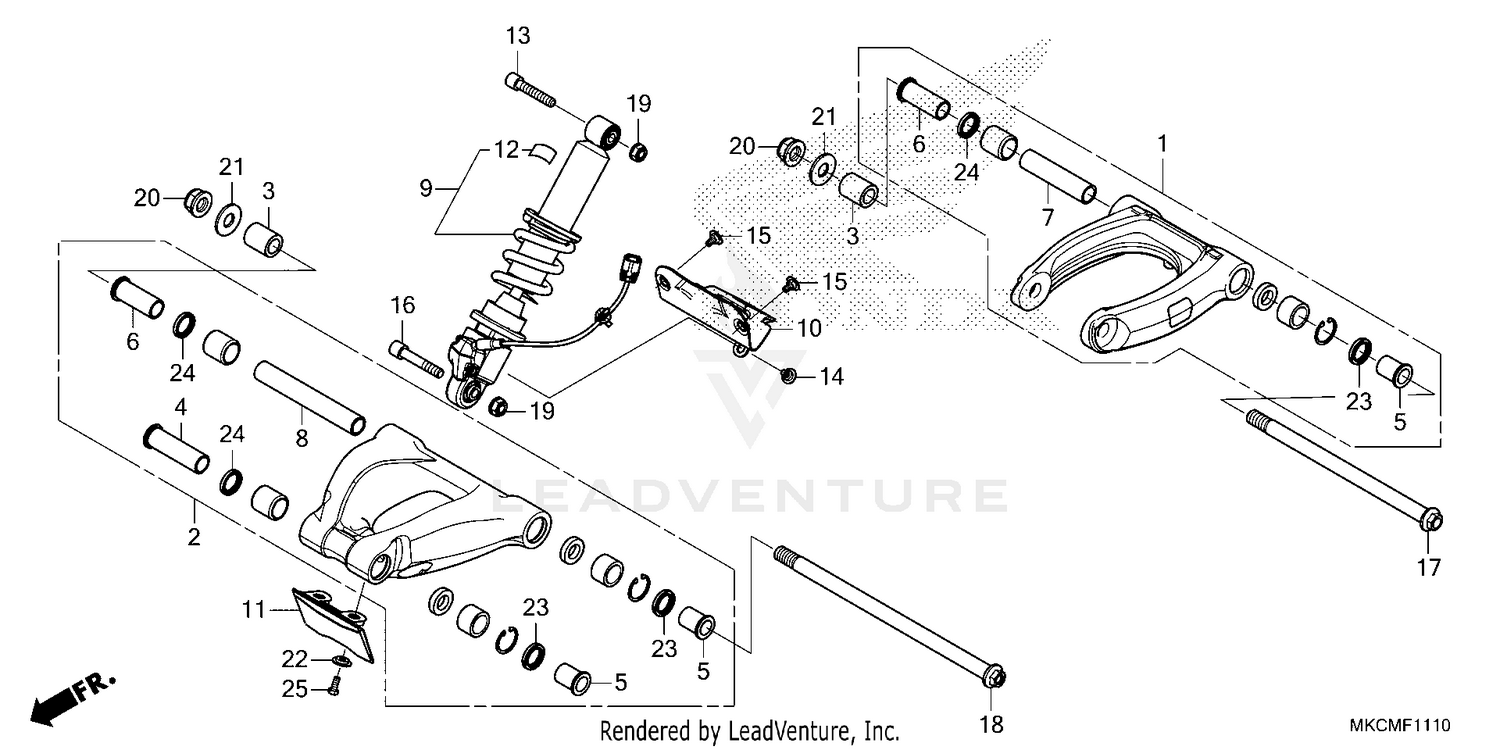

| Ref | Part Number | Description |
|---|
| 1 |
51350-MKC-A00ZC |
ARM ASSY., FR. (UPPER) (TYPE3) Price: $509.11 |
| 2 |
51360-MKC-A00ZC |
ARM ASSY., FR. (LOWER) (TYPE3) Price: $687.69 |
| 3 |
51363-MKC-A00 |
BOLT, FR. PIVOT ADJUSTING Price: $26.07 |
| 4 |
51364-MKC-A00 |
COLLAR A, R. PIVOT DISTANCE Price: $23.98 |
| 5 |
51365-MKC-A00 |
COLLAR, L. PIVOT DISTANCE Price: $15.64 |
| 6 |
51366-MKC-A00 |
COLLAR B, R. PIVOT DISTANCE Price: $21.55 |
| 7 |
51367-MKC-A00 |
COLLAR, FR. ARM DISTANCE (UPPER) Price: $12.38 |
| 8 |
51368-MKC-A00 |
COLLAR A, FR. ARM DISTANCE (LOWER) Price: $19.40 |
| 9 |
51400-MKC-AE1 |
CUSHION ASSY., FR. Price: $2,007.85 |
| 10 |
51405-MKC-A00 |
COVER, ARM (LOWER) Price: $147.20 |
| 11 |
61115-MKC-A00 |
FLAP, AIR GUIDE Price: $20.45 |
| 12 |
87516-KV6-610 |
LABEL, RR. DAMPER CAUTION (ENGLISH) Price: $5.64 |
| 13 |
90110-ML7-000 |
BOLT, SOCKET (10X55) Price: $6.20 |
| 14 |
90114-MGE-000 |
SCREW, SPECIAL (5X11) Price: $2.96 |
| 15 |
90114-MKC-A00 |
SCREW, SPECIAL (5X15) Price: $3.45 |
| 16 |
90171-MKC-A00 |
BOLT, SOCKET (10X58) Price: $9.58 |
| 17 |
90172-MKC-A00 |
BOLT, FR. ARM PIVOT (UPPER) Price: $51.91 |
| 18 |
90173-MKC-A00 |
BOLT, FR. ARM PIVOT (LOWER) Price: $61.18 |
| 19 |
90304-GE8-003 |
NUT, U (10MM) NUT, SELF-LOCK (10MM) Price: $4.62 |
| 20 |
90305-MCB-610 |
NUT, SPECIAL U (16MM) Price: $9.62 |
| 21 |
90501-MKC-A00 |
WASHER, ARM PIVOT Price: $6.33 |
| 22 |
90554-MBT-610 |
WASHER, KNUCKLE Price: $2.55 |
| 23 |
91253-HL1-A01 |
OIL SEAL (22X30X5) Price: $7.29 |
| 24 |
91283-ML7-003 |
DUST SEAL (22X29X4) (ARAI) Price: $7.44 |
| 25 |
92101-05012-0G |
BOLT, HEX. (5X12) This part replaces 92101-05012-0A. Price: $1.08 |
