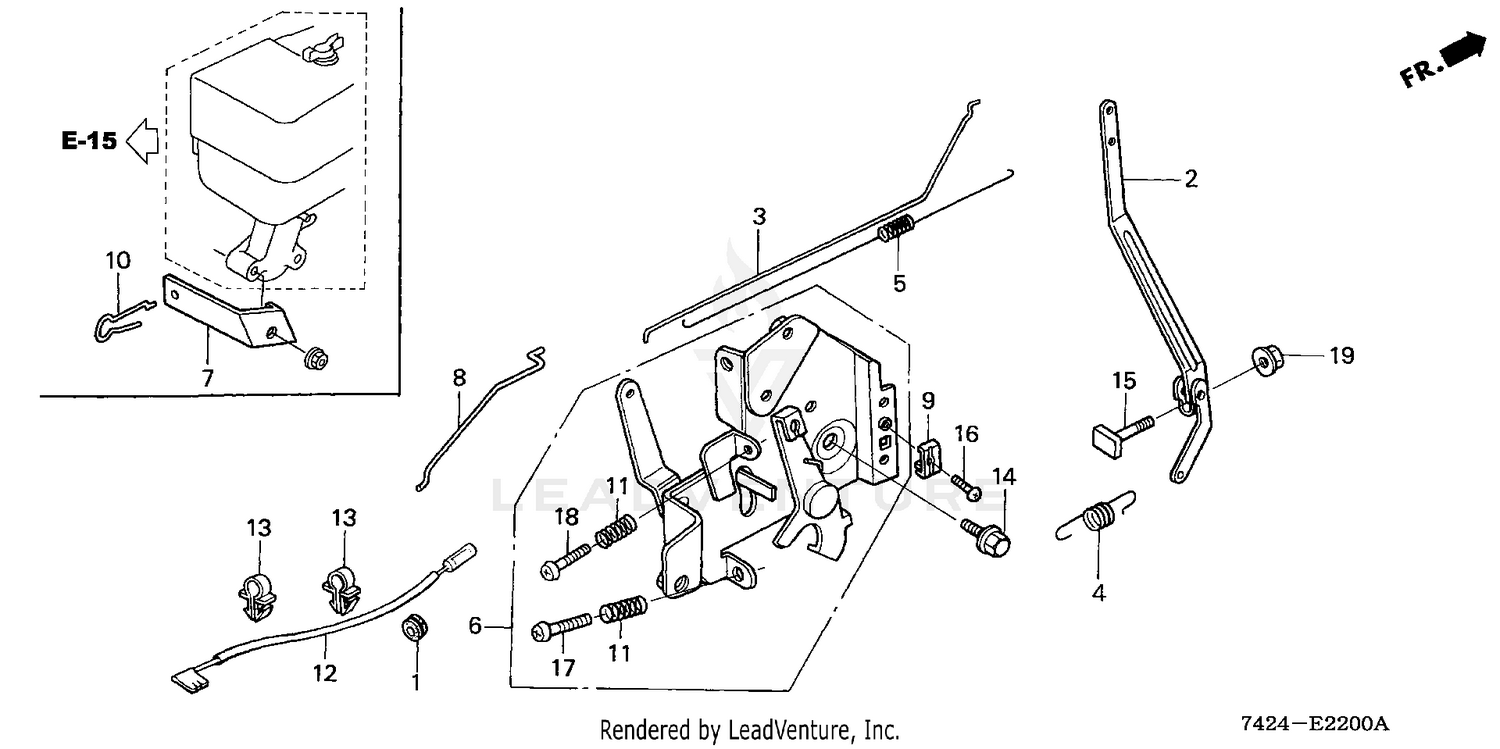

| Ref | Part Number | Description |
|---|
| 1 |
11347-371-300 |
GROMMET, ADJUSTING COVER (Honda Code 0403352). Price: $2.58 |
| 2 |
16551-ZE6-000 |
ARM, GOVERNOR (Honda Code 1452887). Price: $14.40 |
| 3 |
16555-ZE6-000 |
ROD, GOVERNOR (Honda Code 1452895). Price: $4.94 |
| 4 |
16561-ZE6-010 |
SPRING, GOVERNOR Price: $4.40 |
| 5 |
16562-ZE6-000 |
SPRING, THROTTLE RETURN (Honda Code 1452911). Price: $5.00 |
| 6 |
16570-ZE6-G02 |
CONTROL Price: $33.08 |
| 7 |
16573-ZE6-G41 |
SEE PART DETAILS - PRI; STAY, CHOKE Price: $5.80 |
| 9 |
16576-891-000 |
HOLDER, CABLE (Honda Code 0800466). Price: $5.08 |
| 10 |
16577-ZE6-G40 |
PIN, CHOKE Price: $4.42 |
| 11 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 12 |
36101-ZE9-L30 |
SEE PART DETAILS - PRI; WIRE, STOP SWITCH Price: $26.94 |
| 13 |
36103-ZE1-000 |
HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819. Price: $2.48 |
| 14 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 15 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 16 |
93500-05016-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557). Price: $1.14 |
| 17 |
93500-05020-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0197731). Price: $1.04 |
| 18 |
93500-05025-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X25) (Honda Code 0145565). Price: $1.18 |
