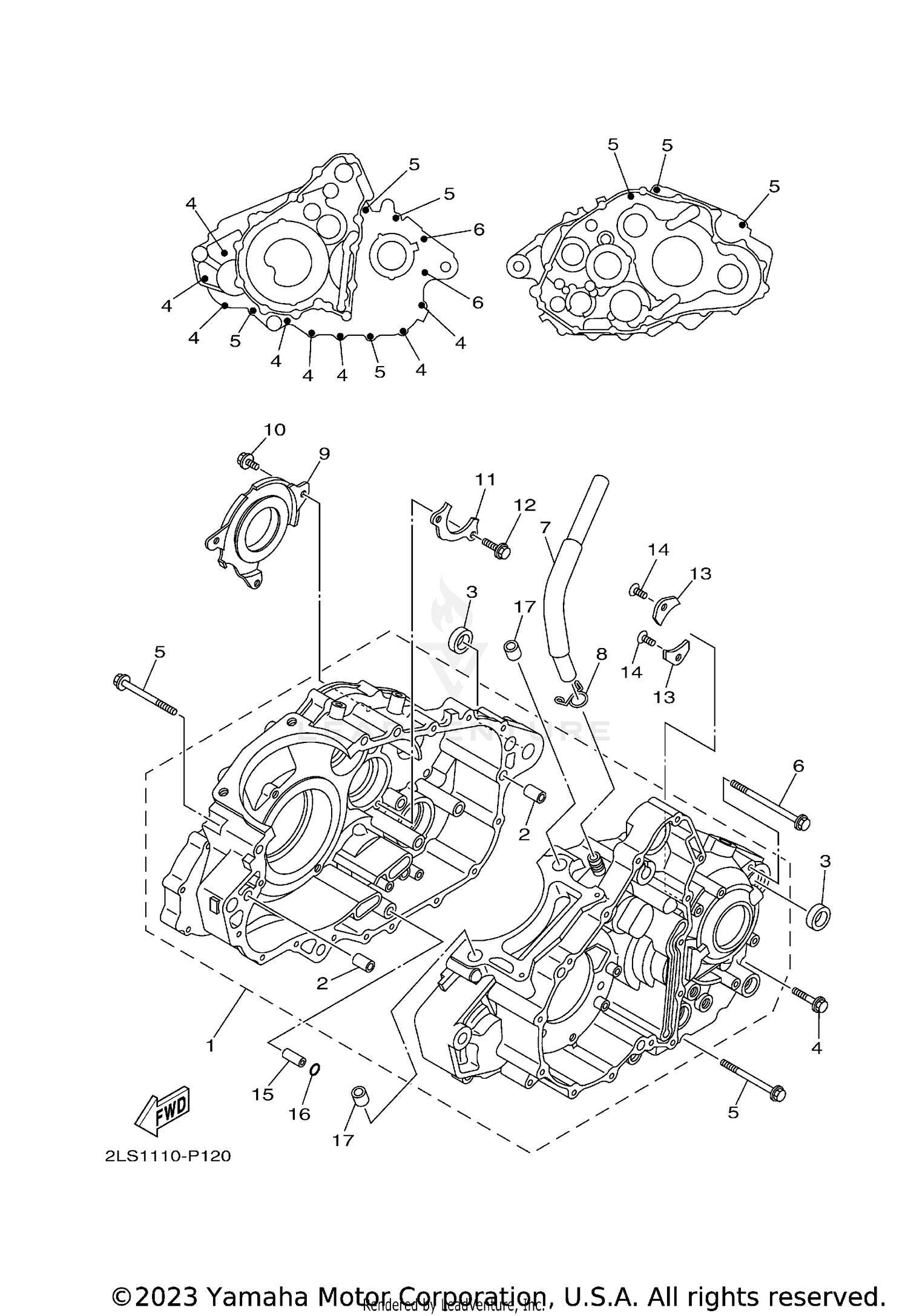

| Ref | Part Number | Description |
|---|
| 1 |
1PE-15100-09-00 |
CRANKCASE ASSY Price: $1,395.99 |
| 2 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 3 |
90387-17009-00 |
COLLAR Price: $17.49 |
| 4 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 5 |
95022-06070-00 |
BOLT, FLANGE Price: $2.40 |
| 6 |
95022-06090-00 |
BOLT, FLANGE Price: $2.50 |
| 7 |
2LS-E1166-00-00 |
PIPE, BREATHER 1 Price: $5.99 |
| 8 |
90467-140A4-00 |
CLIP Price: $10.49 |
| 9 |
1S3-11165-00-00 |
PLATE, BREATHER Price: $18.99 |
| 10 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06081-00. Price: $3.55 |
| 11 |
1S3-15383-00-00 |
PLATE, BEARING COVER Price: $8.49 |
| 12 |
95022-06020-00 |
BOLT, FLANGE This part replaces 90105-06082-00. Price: $3.90 |
| 13 |
4JT-15381-01-00 |
PLATE, BEARING COVER Price: $14.49 |
| 14 |
90151-06052-00 |
SCREW This part replaces 90149-06074-00. Price: $9.49 |
| 15 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 16 |
93210-07135-00 |
O-RING Price: $6.99 |
