Parts Catalog

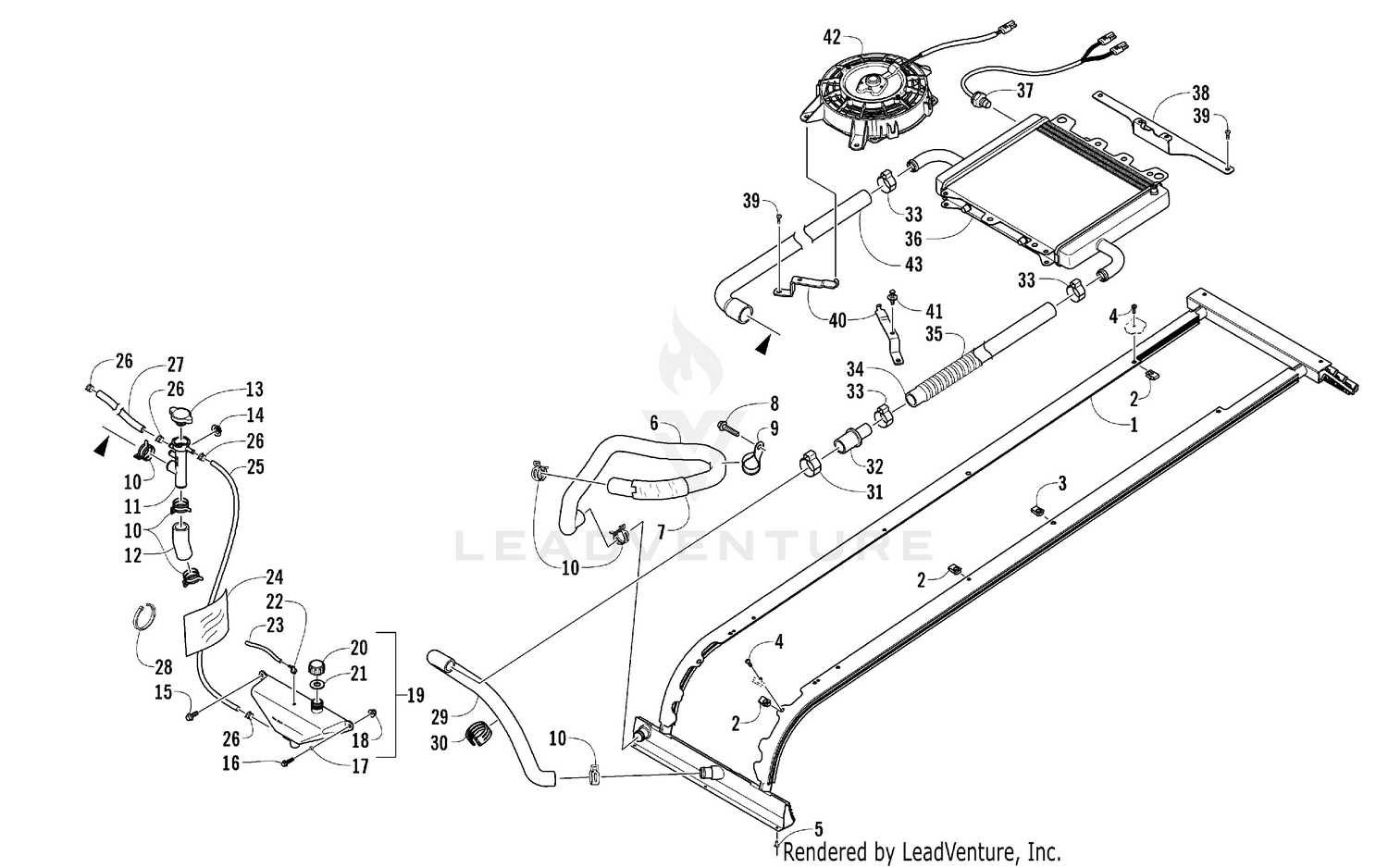

COOLING ASSEMBLY [97581]

Parts (42)

Ref	Part Number	Description
1	4706-111	Exchanger, Heat Price: $547.51
2	1623-637	Clip, U-Nut Price: $2.61
3	0423-577	Clip, U-Nut Price: $0.46
4	8470-520	Screw, Machine Price: $0.48
5	8060-686	Rivet - Zinc Price: $0.46
6	0610-757	Hose, Coolant - Engine/Heat Exchanger Price: $22.95
7	0610-790	Loom, Coolant Hose - 5 ft Price: $155.95
8	8408-020	Screw, Cap Price: $3.75
9	4606-388	Bracket, Coolant Hose Price: $22.99
10	1623-322	Clamp, Hose Price: $5.09
11	1670-998	Neck, Filler Price: $19.35
12	0610-753	Hose, Coolant - Coolant Tank/Engine Price: $24.20
13	2606-284	Cap Price: $35.95
14	0423-357	NUT, STAMPED-1/4" (SD 25001 SOH) Price: $1.08
15	8408-630	Screw, Cap Price: $1.08
16	8408-625	Screw, Cap Price: $0.59
17	5606-560	Spacer Price: $4.35
18	8427-602	Nut, Hex Price: $0.23
20	0670-035	Cap, Coolant Tank Price: $50.95
21	1623-834	Gasket Price: $2.30
22	2670-132	Fitting, Vent Price: $1.79
23	0610-010	Hose, Vent - 25 ft Price: $17.29
24	0619-206	Foil, Protective Price: $237.95
25	0610-935	Hose, Vent - 5 ft Price: $93.95
26	1623-278	Clamp, Hose Price: $1.19
27	0610-789	Hose, Coolant - Bypass Price: $40.95
28	0123-788	Tie, Cable - 8 in Price: $0.23
29	0610-784	Hose, Coolant - Heat Exchanger Price: $71.95
30	0623-540	Tie, Cable - Triple Price: $1.92
31	1623-656	Clamp, Hose Price: $4.35
32	0613-014	UNION,HOSE-.75"X1" Price: $2.19
33	1623-203	Clamp, Hose Price: $5.34
34	0610-807	HOSE,RADIATOR-LH Price: $10.95
35	1619-354	Conduit, Flexible - 5 ft Price: $27.95
36	0613-013	RADIATOR - ASSY (2009 BC) Price: $399.95
37	0413-045	SWITCH, SENSOR-TEMP Price: $72.95
38	0745-353	BRKT,RADIATOR REAR-PTD Price: $25.95
39	8476-625	Screw, Machine Price: $1.92
40	0745-354	BRKT,RADIATOR RH-PTD Price: $22.99
40	0745-355	BRKT,RADIATOR LH-PTD Price: $22.99
41	0623-362	Rivet, Reinstallable Price: $0.71
42	0413-145	FAN,COOLING-6" Price: $245.95
