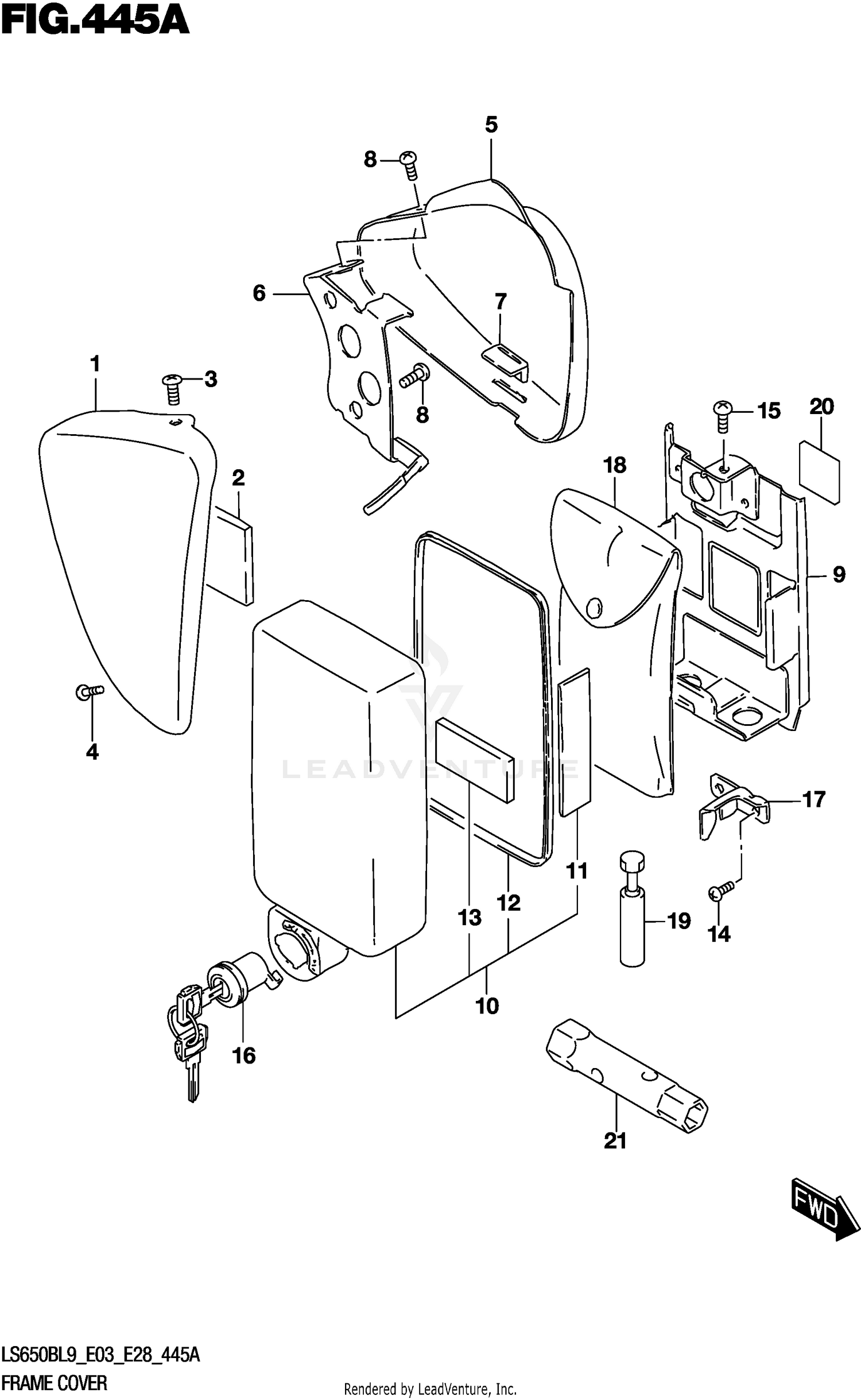

FRAME COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47100-24CB0-YKV | COVER ASSY Price: $130.80 |
| 2 | 13719-84150 | CUSHION (40X40X5) Price: $3.65 |
| 3 | 02142-0510B | SCREW This part replaces 02142-0510A. Price: $2.15 |
| 5 | 47200-24CB0-YKV | COVER ASSY Price: $130.80 |
| 6 | 47180-24B03 | BRACKET Price: $26.14 |
| 7 | 47117-45000 | CUSHION Price: $2.40 |
| 8 | 02122-0612A | SCREW Price: $1.73 |
| 9 | 47430-24B01 | HOLDER Price: $26.24 |
| 10 | 47440-24B30 | COVER Price: $62.76 |
| 11 | 33652-07D00 | PROTECTOR (80X80X2) This part replaces 33652-38A10. Price: $6.98 |
| 14 | 02142-0510B | SCREW This part replaces 02142-0510A. Price: $2.15 |
| 15 | 02112-0610A | SCREW Price: $1.80 |
| 16 | 95700-24871 | LOCK SET Price: $64.26 |
| 17 | 47434-24B00 | PLATE Price: $5.36 |
| 18 | 09800-21102 | TOOL ASSY This part replaces 09800-21055. Price: $24.97 |
| 19 | 96220-24B00 | GAUGE ASSY Price: $38.49 |
