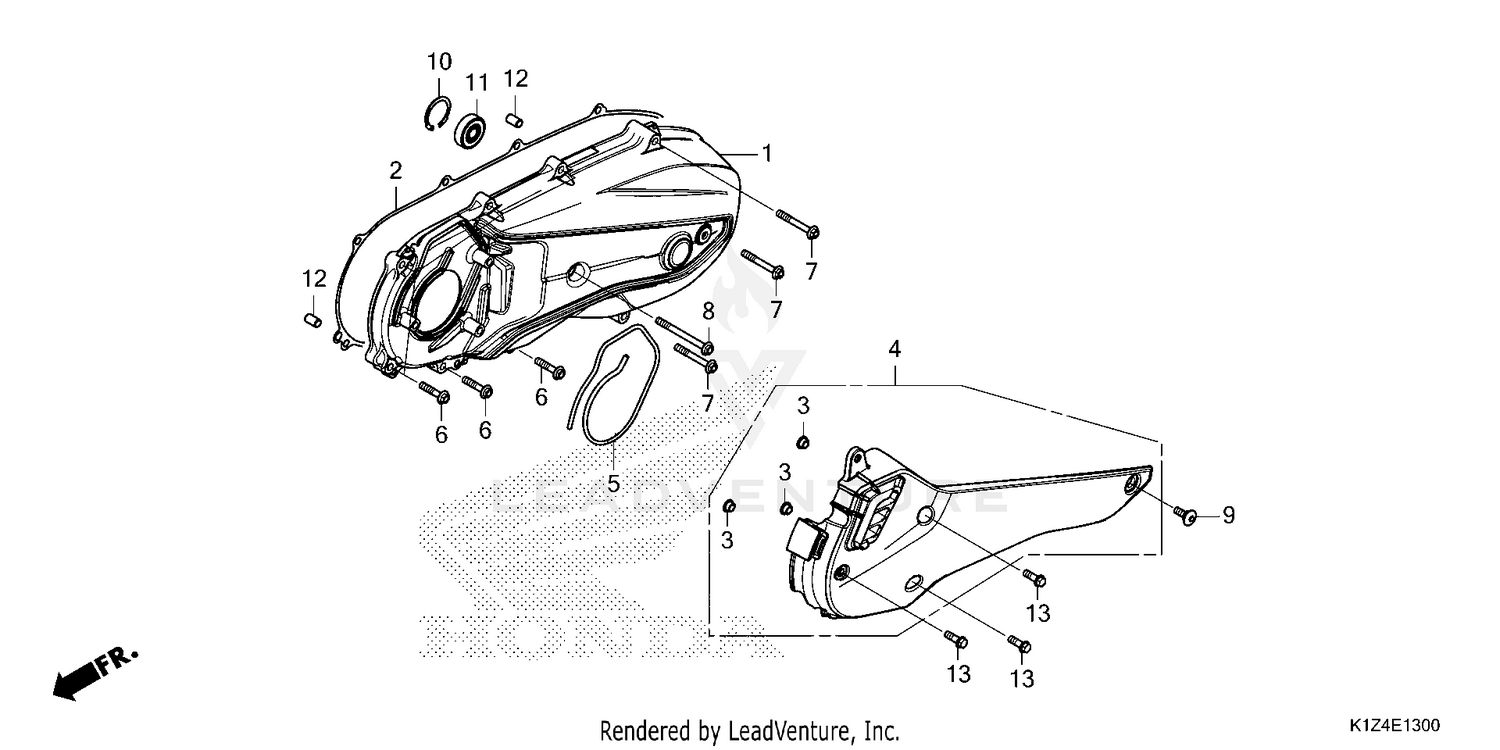

LEFT SIDE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11341-K1Z-J10 | COVER, L. SIDE Price: $39.62 |
| 2 | 11395-K1N-V01 | GASKET, L. COVER (NICHIAS) Price: $2.49 |
| 3 | 19416-KEY-900 | COLLAR Price: $0.89 |
| 4 | 19640-K1Z-J10 | DUCT, L. COVER Price: $8.04 |
| 5 | 19649-K01-900 | SEAL, L. COVER Price: $8.05 |
| 6 | 90004-K0R-V00 | BOLT, FLANGE (6X28) (LNSH) Price: $0.25 |
| 7 | 90004-K1Z-J10 | BOLT, FLANGE (6X45) (LNSH) Price: $0.51 |
| 8 | 90006-K0R-V00 | BOLT, FLANGE (6X65) (LNSH) Price: $0.40 |
| 9 | 90101-K29-900 | BOLT, SOCKET (6X18) Price: $3.69 |
| 10 | 90652-KVB-900 | CIRCLIP (INNER) (32MM) Price: $0.71 |
| 11 | 91005-K1Z-J10 | BEARING (6002UU) (NSK) Price: $45.31 |
| 12 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
