Parts Catalog

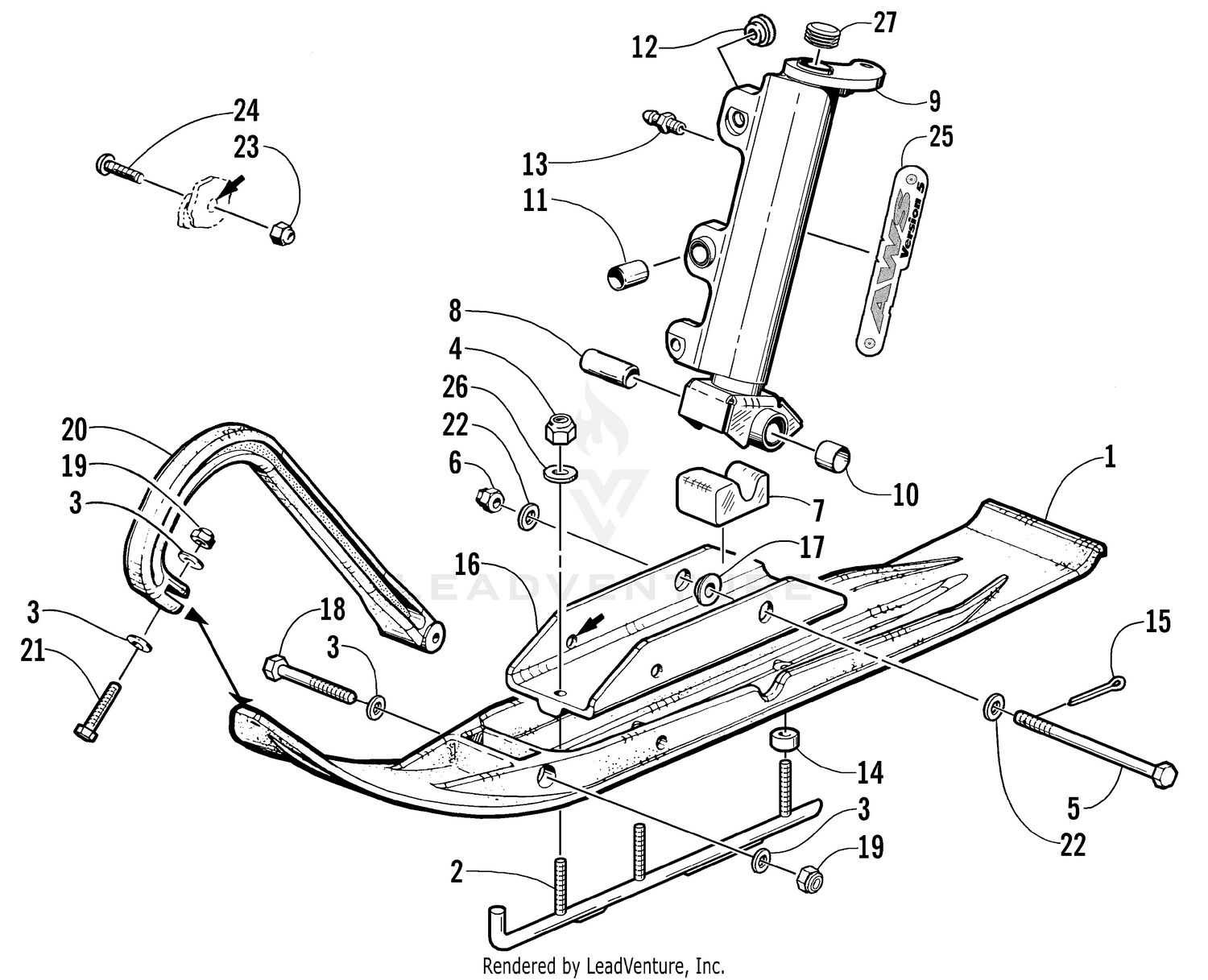

SKI AND SPINDLE ASSEMBLY [76995]

Parts (24)

Ref	Part Number	Description
1	0703-595	Ski, Plastic Price: $239.95
2	0703-344	Wearbar Price: $91.95
3	8050-247	Washer Price: $0.70
4	8040-486	Nut, Lock Price: $1.20
5	0623-552	Screw, Cap Price: $13.28
6	0123-296	Nut, Lock Price: $7.23
7	0603-036	Damper, Ski Price: $19.35
8	2603-548	AXLE,SPINDLE Price: $20.56
10	0603-158	Bearing Price: $9.64
11	0603-083	Bearing Price: $4.79
12	0623-647	Screw, Self-Tapping Price: $1.20
13	0623-010	Fitting, Grease Price: $2.66
14	0603-616	Spacer Price: $22.99
15	0123-458	Pin, Cotter Price: $0.46
17	0603-621	Insert, Ski Saddle Price: $4.15
18	8002-143	Screw, Cap Price: $1.80
19	8041-426	Nut, Hex - Thin Lock Price: $0.46
20	0603-624	HANDLE,PLASTIC-BLACK Price: $34.95
21	8002-135	SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y Price: $0.49
22	0623-728	Washer Price: $3.26
23	8041-366	Nut, Lock Price: $0.35
24	8017-581	SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y Price: $7.23
25	4611-418	Decal, "AWS" - Spindle Price: $74.95
26	8050-277	Washer, Flat Price: $0.35
