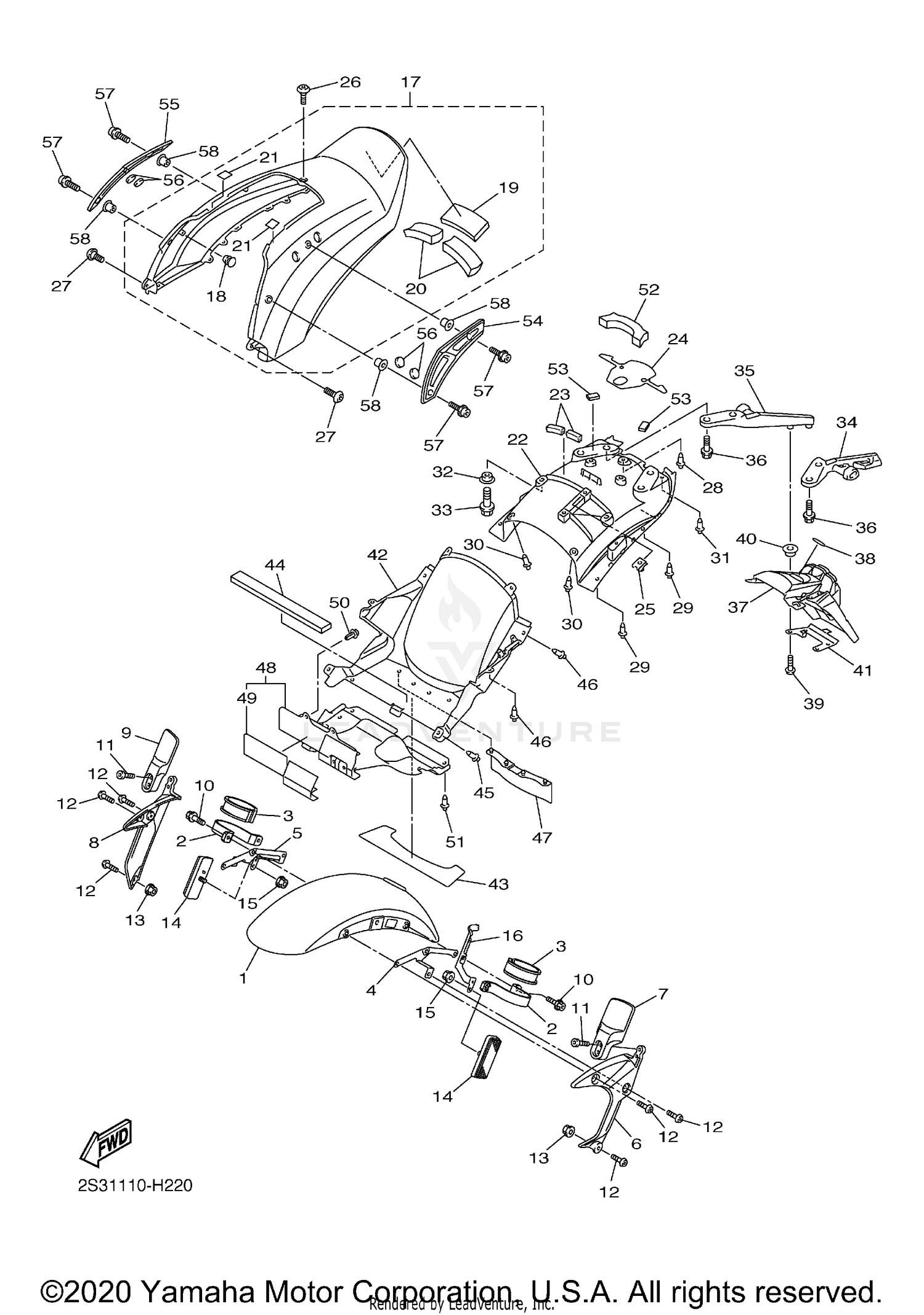

| Ref | Part Number | Description |
|---|
| 2 |
2S3-21513-00-00 |
STAY, FENDER 1 Price: $137.99 |
| 3 |
2S3-21541-00-00 |
DAMPER 1 Price: $11.99 |
| 4 |
2S3-21512-00-00 |
BRACKET, FENDER Price: $34.99 |
| 5 |
2S3-21586-00-00 |
BRACKET Price: $39.99 |
| 10 |
90110-06152-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06342-00. Price: $9.49 |
| 11 |
91314-06014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.50 |
| 12 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 13 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 14 |
11H-85110-01-00 |
REFLECTOR ASSY Price: $30.99 |
| 15 |
95604-05200-00 |
NUT, U FLANGE Price: $2.40 |
| 16 |
2S3-85112-01-00 |
BRACKET, REFLECTOR 1 Price: $32.99 |
| 18 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 19 |
2S3-84553-00-00 |
DAMPER Price: $4.40 |
| 20 |
2S3-2112D-00-00 |
DAMPER 3 Price: $4.30 |
| 21 |
1UF-15379-00-00 |
SEAL Price: $7.49 |
| 22 |
2S3-2162R-00-00 |
FENDER 2 Price: $71.99 |
| 23 |
2S3-28347-00-00 |
MOLE 3 Price: $7.49 |
| 24 |
2S3-21669-00-00 |
SEAL Price: $22.99 |
| 25 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 26 |
90111-05059-00 |
BOLT,HEX. SOCKET BUT This part replaces 90110-05201-00. Price: $2.80 |
| 27 |
90111-05059-00 |
BOLT,HEX. SOCKET BUT This part replaces 90110-05201-00. Price: $2.80 |
| 28 |
90269-06008-00 |
RIVET Price: $9.49 |
| 29 |
90269-06008-00 |
RIVET Price: $9.49 |
| 30 |
90269-06008-00 |
RIVET Price: $9.49 |
| 31 |
90269-06008-00 |
RIVET Price: $9.49 |
| 32 |
90387-07027-00 |
COLLAR Price: $9.49 |
| 33 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 34 |
2S3-21689-10-00 |
BRACKET, REAR STAY 2 Price: $175.99 |
| 35 |
2S3-2161A-10-00 |
BRACKET 3 Price: $175.99 |
| 36 |
95814-06020-00 |
BOLT, FLANGE Price: $9.49 |
| 37 |
2S3-21629-00-00 |
GUARD, MUD Price: $63.99 |
| 38 |
4KN-2836B-10-00 |
TUNING FORK MARK Price: $19.99 |
| 39 |
92014-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 40 |
90387-06242-00 |
COLLAR Price: $7.49 |
| 41 |
2S3-2164F-00-00 |
STAY 1 Price: $15.49 |
| 42 |
2S3-2163A-00-00 |
COVER, REAR FENDER 1 Price: $79.99 |
| 43 |
2S3-2172P-00-00 |
SEAT Price: $12.49 |
| 44 |
2S3-2414N-00-00 |
DAMPER, PLATE 4 Price: $8.49 |
| 45 |
90269-06008-00 |
RIVET Price: $9.49 |
| 46 |
90269-06008-00 |
RIVET Price: $9.49 |
| 47 |
2S3-21621-00-00 |
FLAP Price: $13.49 |
| 48 |
2S3-2476U-00-00 |
PROTECTOR,1 Price: $65.99 |
| 49 |
2S3-24193-00-00 |
SEAT, TANK PROTECTOR Price: $16.49 |
| 50 |
90269-07010-00 |
RIVET Price: $4.70 |
| 51 |
90269-06008-00 |
RIVET Price: $9.49 |
| 52 |
2S3-2112C-00-00 |
DAMPER 2 Price: $6.49 |
| 53 |
2S3-2112J-00-00 |
DAMPER 4 Price: $0.85 |
| 54 |
2S3-2171E-10-00 |
COVER, SIDE 5 Price: $91.99 |
| 55 |
2S3-2171X-10-00 |
COVER, SIDE 6 Price: $91.99 |
| 56 |
2S3-21747-00-00 |
DAMPER Price: $7.49 |
| 57 |
90110-05057-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
