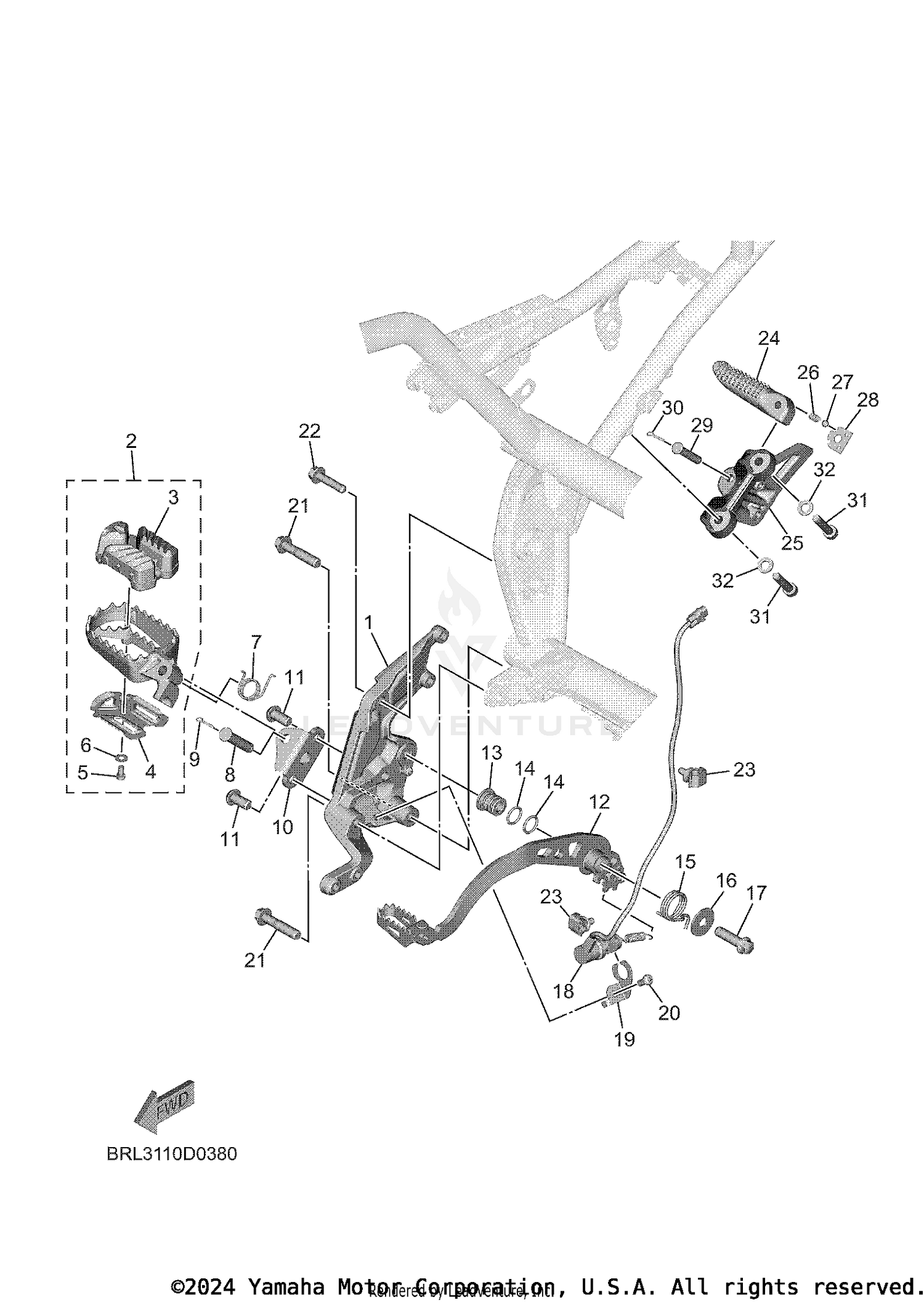

| Ref | Part Number | Description |
|---|
| 1 |
BXD-F7443-00-00 |
BRACKET 3 Price: Call Us |
| 2 |
BAG-F7404-00-00 |
FOOTREST ASSY 2 Price: $126.99 |
| 5 |
97012-05010-00 |
BOLT Price: $0.65 |
| 6 |
92990-05200-00 |
WASHER, PLAIN This part replaces 92902-05200-00. Price: $5.00 |
| 7 |
90508-20080-00 |
SPRING, TORSION Price: $2.90 |
| 8 |
91702-10045-00 |
PIN, CLEVIS Price: $6.49 |
| 9 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 10 |
3D7-21447-00-00 |
BRACKET, FOOTREST Price: $21.99 |
| 11 |
90149-10033-00 |
SCREW This part replaces 90149-10031-00. Price: $6.49 |
| 12 |
BW3-27200-02-00 |
PEDAL, BRAKE This part replaces BW3-27200-01-00. Price: $128.99 |
| 13 |
5YK-F7213-00-00 |
COLLAR Price: $10.49 |
| 14 |
93210-15566-00 |
O-RING This part replaces 93210-15414-00. Price: $8.49 |
| 15 |
5EL-27216-00-00 |
SPRING, RETURN Price: $7.49 |
| 16 |
90201-10060-00 |
WASHER, PLATE Price: $14.45 |
| 17 |
90105-10293-00 |
BOLT, FLANGE This part replaces 90105-10292-00. Price: $6.49 |
| 18 |
BXD-82530-00-00 |
STOP SWITCH ASSY Price: Call Us |
| 19 |
5PS-2144G-00-00 |
STAY, STOP SWITCH Price: $4.85 |
| 20 |
92012-06012-00 |
BOLT, BUTTON HEAD This part replaces 90111-06065-00. Price: $4.70 |
| 21 |
95024-10045-00 |
BOLT, FLANGE Price: $9.49 |
| 22 |
90105-08063-00 |
BOLT, FLANGE Price: $9.49 |
| 23 |
90464-08012-00 |
CLAMP Price: $3.65 |
| 24 |
BJV-F7441-00-00 |
FOOTREST, REAR 2 Price: Call Us |
| 25 |
BNW-F742L-00-00 |
BRACKET 5 Price: $169.99 |
| 26 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 27 |
93501-04011-00 |
BALL Price: $9.49 |
| 28 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 29 |
91702-08040-00 |
PIN, CLEVIS Price: $4.85 |
| 30 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 31 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91312-08040-00. Price: $9.49 |
