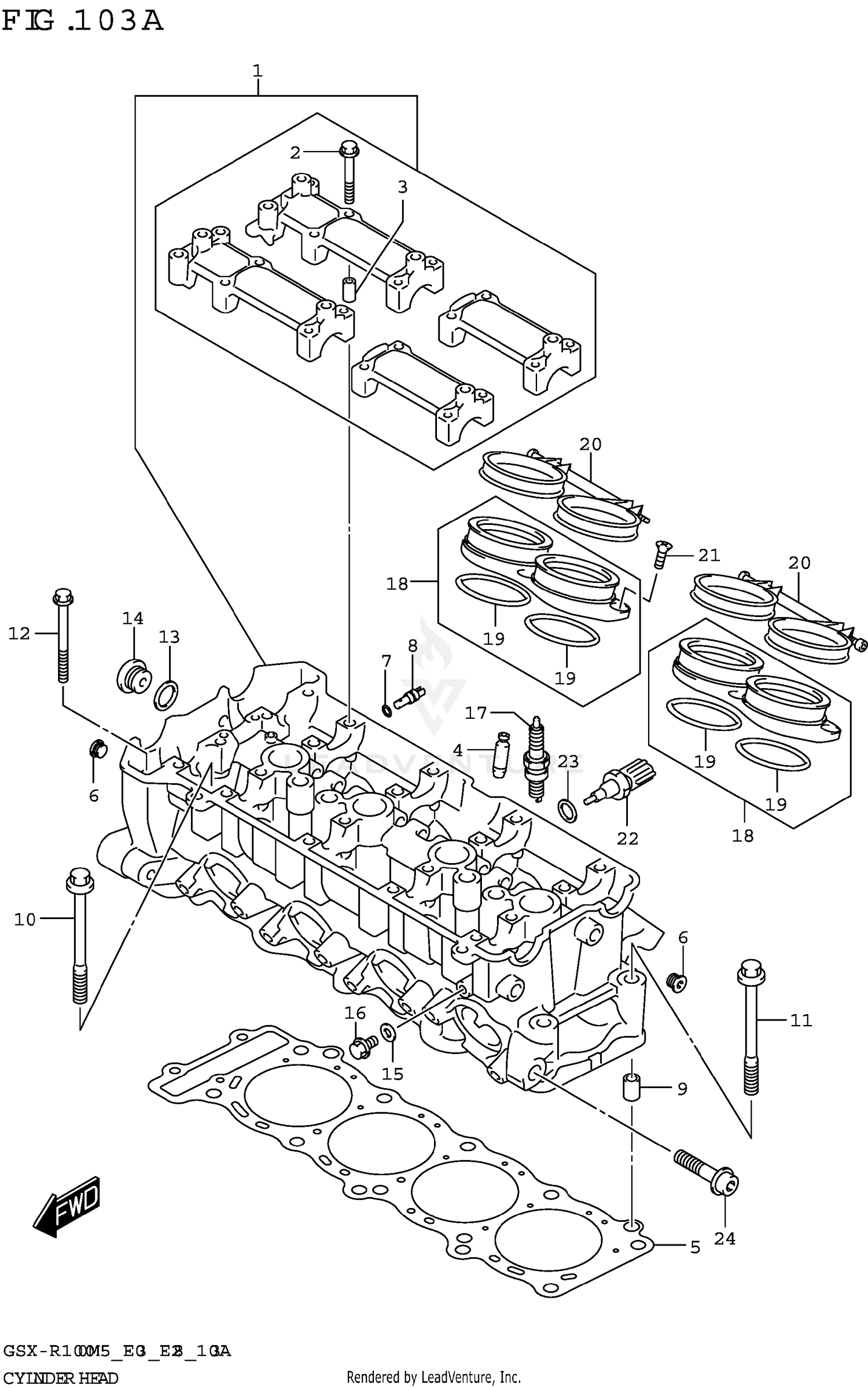

CYLINDER HEAD
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-17K00 | HEAD ASSY,CYLINDER Price: $1,815.38 |
| 6 | 09248-10006 | PLUG (10X5) Price: $4.93 |
| 7 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 8 | 09493-80005 | JET (#80) Price: $17.07 |
| 9 | 04211-11169 | PIN Price: $2.15 |
| 10 | 11117-29G00 | BOLT,CYLINDER HEAD (10X95) Price: $11.04 |
| 11 | 11117-29G20 | BOLT,CYLINDER HEAD (10X95) Price: $8.65 |
| 13 | 09168-16009 | GASKET (16X22X0.8) Price: $3.02 |
| 14 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 15 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 16 | 01550-0612A | BOLT Price: $2.37 |
| 18 | 13101-17K00 | PIPE ASSY,INTAKE Price: $68.37 |
| 20 | 13170-17K00 | CLAMP,INTAKE PIPE Price: $27.23 |
| 21 | 02122-0616A | SCREW Price: $1.73 |
| 22 | 13650-49X00 | SENSOR,TEMP Price: $111.41 |
| 23 | 09168-12017 | GASKET (12X17X1) Price: $2.37 |
