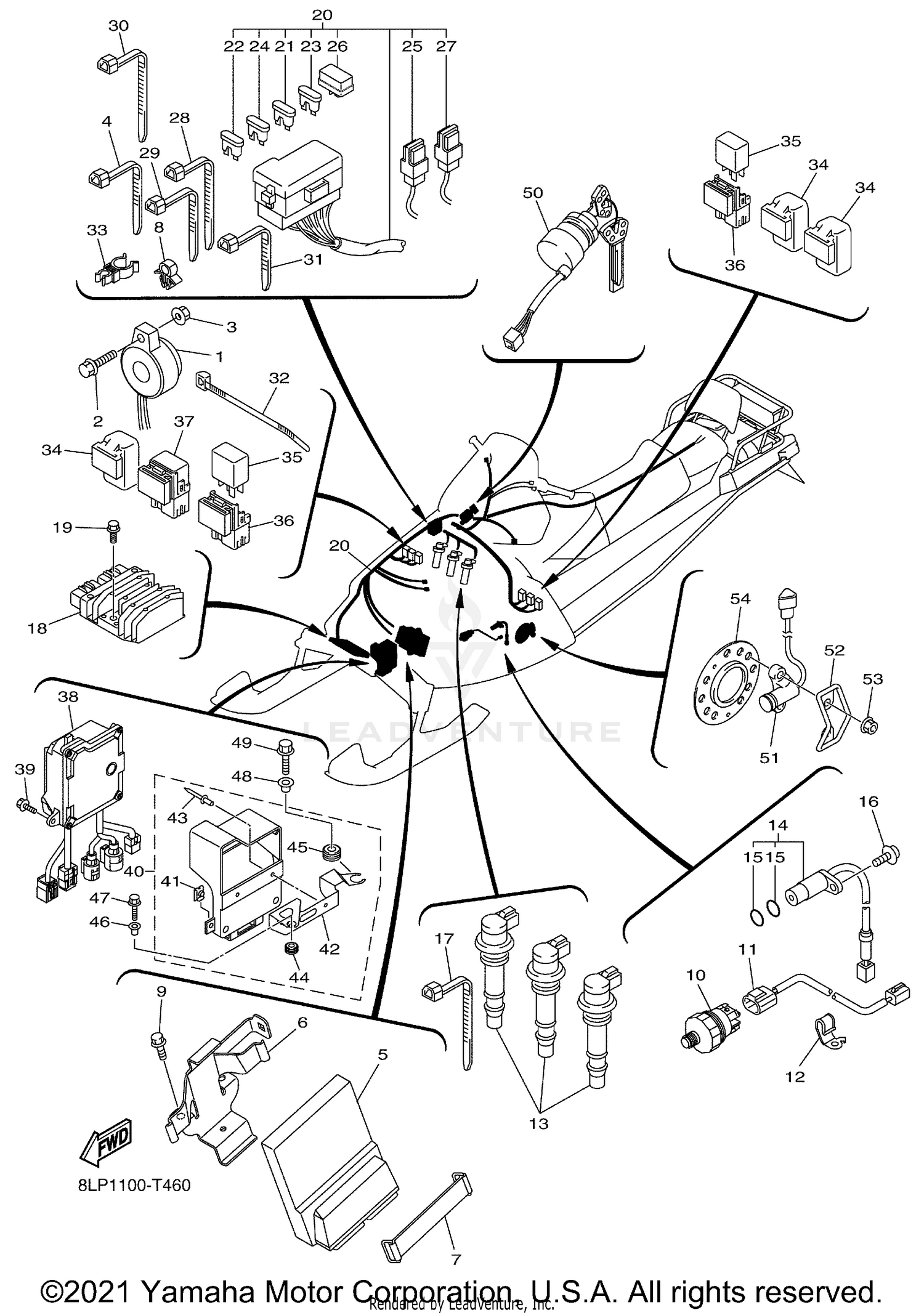

| Ref | Part Number | Description |
|---|
| 1 |
8GL-83383-00-00 |
BUZZER Price: $105.99 |
| 2 |
90159-05035-00 |
SCREW, WITH WASHER Price: $9.49 |
| 3 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 5 |
8LP-8591A-00-00 |
ENGINE CONTROL UNIT ASSY Price: $1,021.99 |
| 6 |
8KW-85991-00-00 |
BRACKET, UNIT Price: $29.99 |
| 7 |
2T4-82131-00-00 |
BAND, BATTERY Price: $9.99 |
| 8 |
90464-07016-00 |
CLAMP Price: $2.20 |
| 9 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95822-06016-00. Price: $1.95 |
| 10 |
8FP-82504-01-00 |
OIL PRESSURE SWITCH ASSY This part replaces 8FP-82504-00-00. Price: $71.99 |
| 11 |
8GL-82318-00-00 |
WIRE, SUB-LEAD Price: $29.99 |
| 12 |
90465-08030-00 |
CLAMP Price: $6.49 |
| 13 |
8ES-82310-00-00 |
IGNITION COIL ASSY Price: $172.99 |
| 14 |
8GL-81670-01-00 |
PICK-UP ASSY This part replaces 8GL-81670-00-00. Price: $152.99 |
| 15 |
5VY-8A8E1-00-00 |
O-RING 1 Price: $7.49 |
| 16 |
90110-06219-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06218-00. Price: $8.49 |
| 18 |
1D7-81960-01-00 |
RECTIFIER & REGULATOR ASSY Price: $349.99 |
| 19 |
90105-06185-00 |
BOLT, FLANGE Price: $1.99 |
| 20 |
8LP-82590-00-00 |
WIRE HARNESS ASSY Price: $1,170.99 |
| 21 |
67F-82151-30-00 |
FUSE (3A) This part replaces 5JJ-82151-50-00. Price: $5.49 |
| 22 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 23 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 24 |
5JJ-82151-20-00 |
FUSE (20A-BL) Price: $8.49 |
| 25 |
JR9-82151-00-00 |
SLOW BLOW FUSE This part replaces 5PS-82151-00-00. Price: $13.49 |
| 26 |
4WA-81980-00-00 |
DIODE ASSY Price: $32.99 |
| 27 |
4FM-82151-00-00 |
FUSE (30A) Price: $8.49 |
| 28 |
90464-15195-00 |
CLAMP Price: $4.41 |
| 30 |
25G-83936-01-00 |
BAND, SWITCH CORD This part replaces 90464-12045-00. Price: $5.49 |
| 32 |
90464-35132-00 |
CLAMP Price: $10.49 |
| 33 |
90464-14005-00 |
CLAMP Price: $3.85 |
| 34 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 35 |
8HG-81951-10-00 |
RELAY ASSY (8HG-10) Price: $17.49 |
| 36 |
8HG-81952-00-00 |
HOLDER, RELAY Price: $3.95 |
| 37 |
8GN-81950-00-00 |
RELAY ASSY (8GN-00) Price: $33.99 |
| 38 |
8HG-859A0-11-00 |
POWER STEERING CONTROL UNIT ASS Price: $961.99 |
| 39 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95802-06020-00. Price: $3.50 |
| 40 |
8LP-2740A-01-00 |
BRACKET SUB ASSY ( Price: $59.99 |
| 41 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 42 |
8LP-2836A-00-00 |
BRACKET 1 Price: $31.99 |
| 43 |
90267-48059-00 |
RIVET, BLIND (4.8X12.3) Price: $3.55 |
| 44 |
90480-13003-00 |
GROMMET Price: $6.49 |
| 45 |
90480-18435-00 |
GROMMET Price: $3.80 |
| 46 |
90387-061F9-00 |
COLLAR Price: $9.49 |
| 47 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 48 |
90387-08016-00 |
COLLAR Price: $11.49 |
| 49 |
95817-08030-00 |
BOLT, FLANGE This part replaces 95822-08030-00. Price: $9.49 |
| 50 |
8HV-82510-00-00 |
MAIN SWITCH ASSY Price: $113.99 |
| 51 |
8GK-83755-12-00 |
SENSOR, SPEED Price: $186.99 |
| 52 |
8GC-2198G-00-00 |
COVER 2 Price: $41.99 |
| 53 |
95717-08300-00 |
NUT, FLANGE This part replaces 95702-08300-00. Price: $3.05 |
