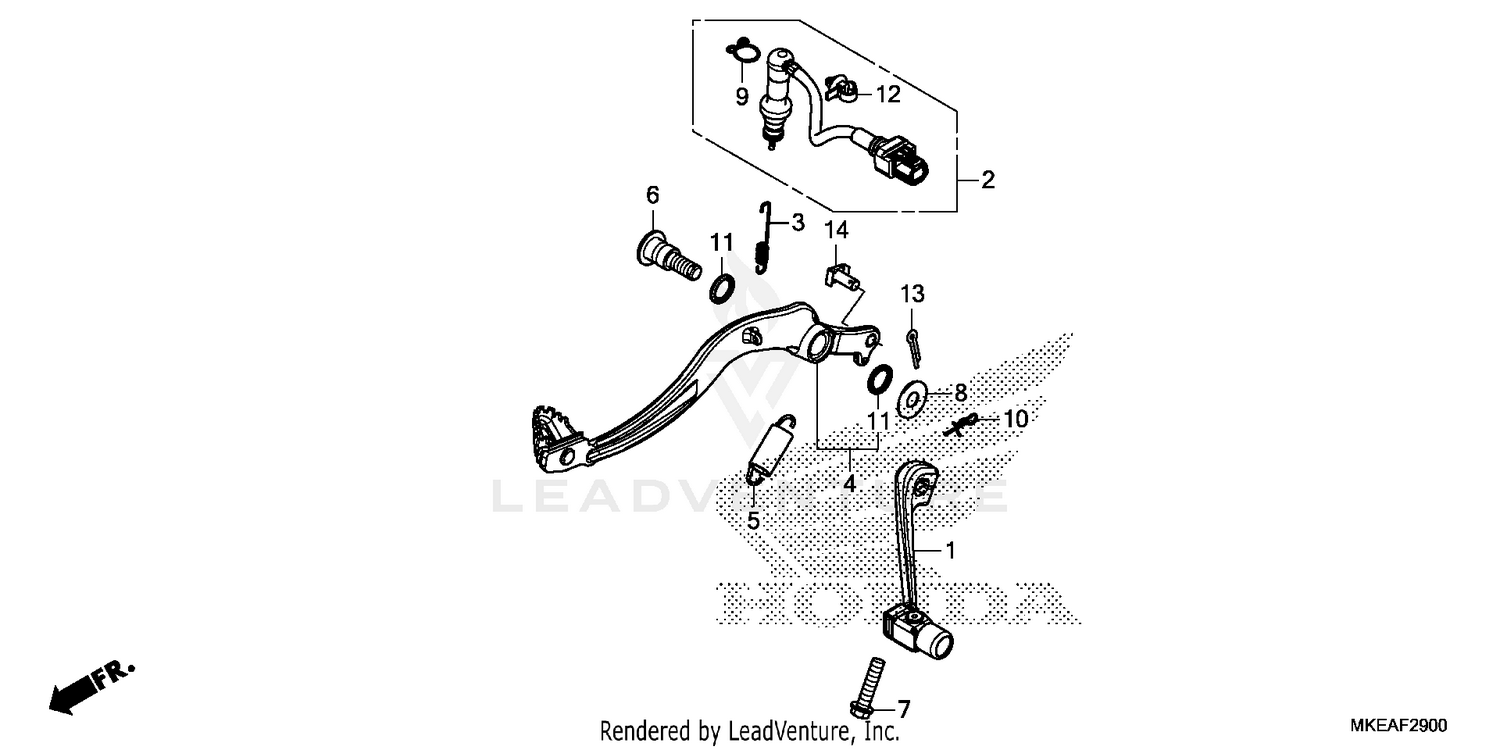

| Ref | Part Number | Description |
|---|
| 1 |
24700-MKE-A50 |
PEDAL, CHANGE Price: $151.55 |
| 2 |
35350-MKE-A51 |
SWITCH ASSY., RR. STOP Price: $40.76 |
| 3 |
35357-MGS-D30 |
SPRING, STOP SWITCH Price: $5.20 |
| 4 |
46510-MKE-A50 |
PEDAL, RR. BRAKE Price: $159.31 |
| 5 |
46511-KZ4-J00 |
SPRING ASSY., RR. BRAKE RETURN Price: $9.38 |
| 6 |
46513-MEY-670 |
SHAFT, BRAKE PIVOT Price: $17.29 |
| 7 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 8 |
90512-KRN-730 |
WASHER (26X10.5) Price: $2.96 |
| 9 |
90651-MGE-641 |
CLIP, SWITCH COVER Price: $2.05 |
| 10 |
90705-PFF-300 |
PIN, SNAP (8MM) Price: $4.35 |
| 11 |
91251-444-000 |
DUST SEAL (15X20X2.5) Price: $5.44 |
| 12 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 13 |
94201-20120 |
PIN, COTTER (2.0X12) Price: $1.08 |
