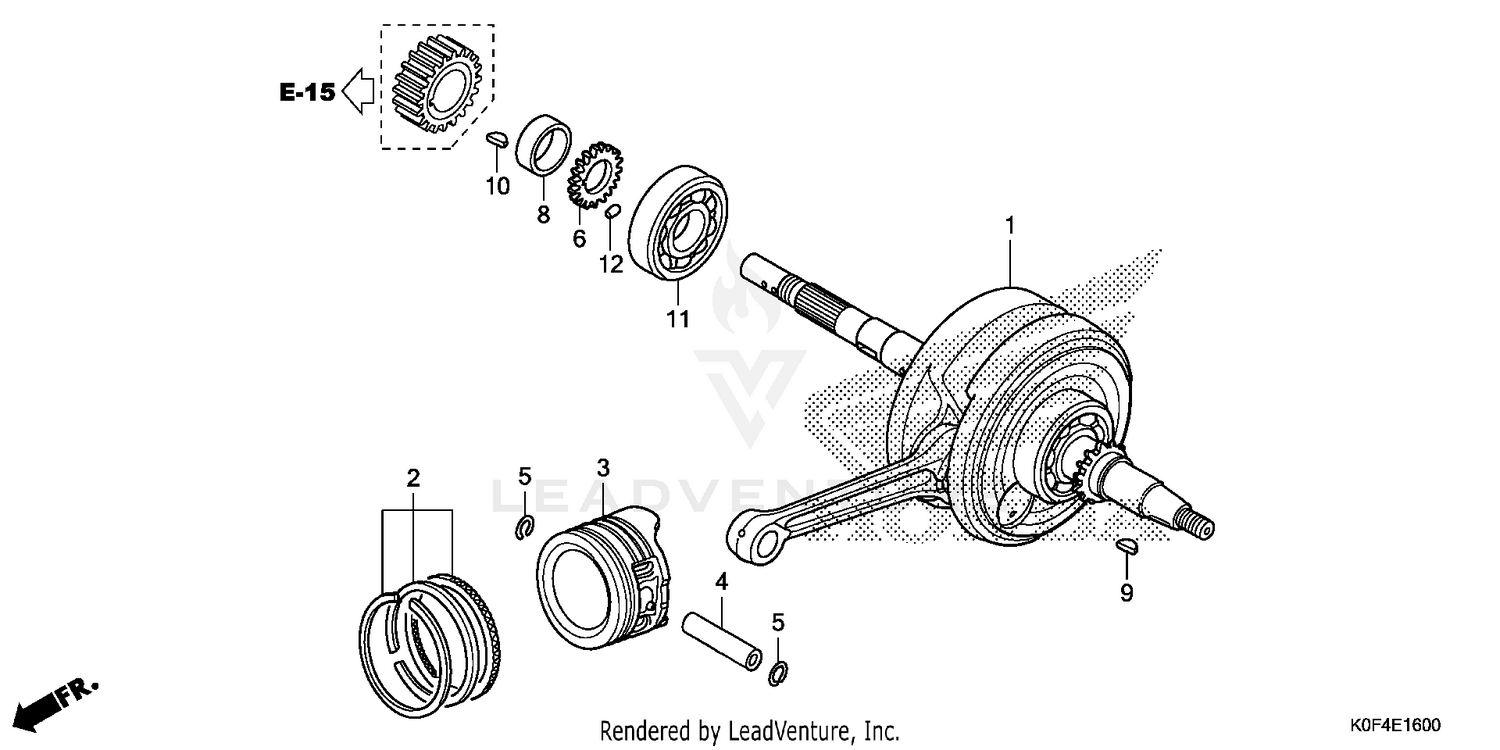

CRANKSHAFT@PISTON
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13000-K26-B00 | CRANKSHAFT Price: $157.51 |
| 2 | 13012-KYZ-900 | RING SET, PISTON (STD) (RIKEN) Price: $15.18 |
| 3 | 13101-KYZ-900 | PISTON Price: $48.49 |
| 4 | 13111-GB0-910 | PIN, PISTON Price: $14.15 |
| 5 | 13115-GN5-910 | CLIP, PISTON PIN (13MM) Price: $0.87 |
| 6 | 15341-KPH-900 | GEAR, OIL PUMP DRIVE (19T) Price: $10.80 |
| 8 | 23125-KPG-T00 | COLLAR, PRIMARY DRIVEN Price: $2.64 |
| 9 | 90701-HB6-010 | KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000. Price: $4.76 |
| 10 | 90741-KGH-900 | KEY, WOODRUFF (4MM) Price: $2.58 |
| 11 | 91001-KWS-901 | BEARING, RADIAL BALL (63/22) (NSK) Price: $26.36 |
