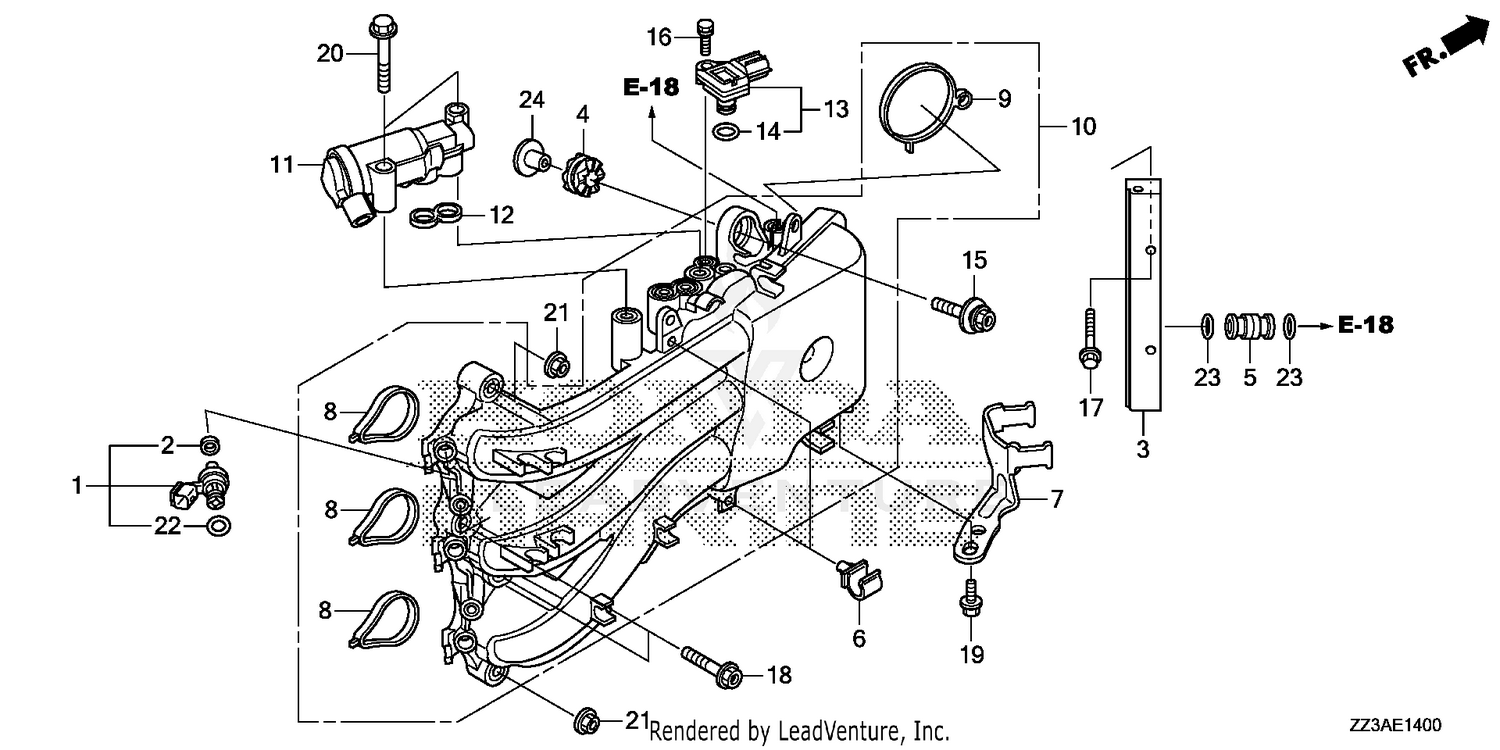

| Ref | Part Number | Description |
|---|
| 1 |
16400KTZK01 |
THROTTLE BODY ASSY. (GQMBA A) Price: Call Us |
| 1 |
16450-ZZ3-003 |
INJECTOR ASSY., FUEL Price: $105.36 |
| 2 |
16450KRJ901 |
INJECTOR ASSY., FUEL Price: Call Us |
| 2 |
16472-KPC-D50 |
RING, SEAL Price: $2.82 |
| 3 |
16451KTF640 |
CLIP, INJECTOR Price: Call Us |
| 3 |
16620-ZZ5-010 |
LINE, FUEL Price: $164.76 |
| 4 |
16733-ZW5-000 |
GROMMET, VAPOR SEPARATOR Price: $9.10 |
| 4 |
17528KTF641 |
HOSE COMP., FUEL FEED Price: Call Us |
| 5 |
16752-ZY3-A00 |
JOINT, FUEL PIPE Price: $10.06 |
| 5 |
17568KRJ900 |
CLAMPER, FUEL HOSE Price: Call Us |
| 6 |
16896-ZY9-003 |
CLAMP B, FUEL TUBE Price: $3.84 |
| 6 |
17568KTZD00 |
CLAMPER, FUEL HOSE Price: Call Us |
| 7 |
16914-ZZ3-000 |
STAY, FUEL STRAINER Price: $11.86 |
| 7 |
16914-ZZ3-010 |
STAY, FUEL STRAINER Price: $12.62 |
| 7 |
17570KTF640 |
STAY COMP., HOSE CLAMPER Price: Call Us |
| 8 |
17105-ZZ3-000 |
GASKET, IN. MANIFOLD Price: $14.58 |
| 8 |
17711S0X003 |
RETAINER (ORANGE) (TOKAI) Price: Call Us |
| 9 |
17107-ZZ5-003 |
GASKET, THROTTLE BODY Price: $17.78 |
| 9 |
90122752000 |
BOLT, SPECIAL, 6MM Price: Call Us |
| 10 |
17110-ZZ3-003 |
MANIFOLD, INLET Price: $982.52 |
| 10 |
91301PLC000 |
O-RING, 7.47X3.6 Price: Call Us |
| 11 |
36550-ZZ5-003 |
VALVE ASSY., ELECTRONIC AIR CONTROL Price: $245.64 |
| 11 |
91302PLC000 |
O-RING, 7.85X3.53 Price: Call Us |
| 12 |
36551-ZY6-003 |
GASKET, ELECTRONIC AIR CONTROL VALVE Price: $14.88 |
| 12 |
957010601200 |
BOLT, FLANGE, 6X12 Price: Call Us |
| 13 |
37830-RNA-A01 |
SENSOR ASSY., MAP Price: $117.64 |
| 14 |
37835-PGK-A01 |
O-RING Price: $11.78 |
| 15 |
90014-ZY9-M01 |
BOLT-WASHER (8X35) Price: $3.74 |
| 16 |
90029-ZY3-000 |
BOLT-WASHER (5X18) Price: $0.84 |
| 17 |
90031-ZY3-000 |
BOLT, FLANGE (6X32) Price: $1.42 |
| 18 |
90036-ZY3-030 |
BOLT, FLANGE (8X32) Price: $1.30 |
| 19 |
90056-ZY9-M01 |
BOLT, FLANGE (6X12) Price: $1.50 |
| 20 |
90026-ZZ5-M01 |
BOLT, FLANGE (8X45) Price: $2.56 |
| 21 |
90205-ZY9-M01 |
NUT, FLANGE (8MM) Price: $2.36 |
| 22 |
91301-KPH-701 |
O-RING (7.3X2.2) Price: $3.88 |
| 23 |
91301-MJ0-003 |
O-RING (7.8X1.9) (ARAI) Price: $2.86 |
| 24 |
91504-ZY9-M03 |
COLLAR (8.5X14.5) Price: $7.74 |
