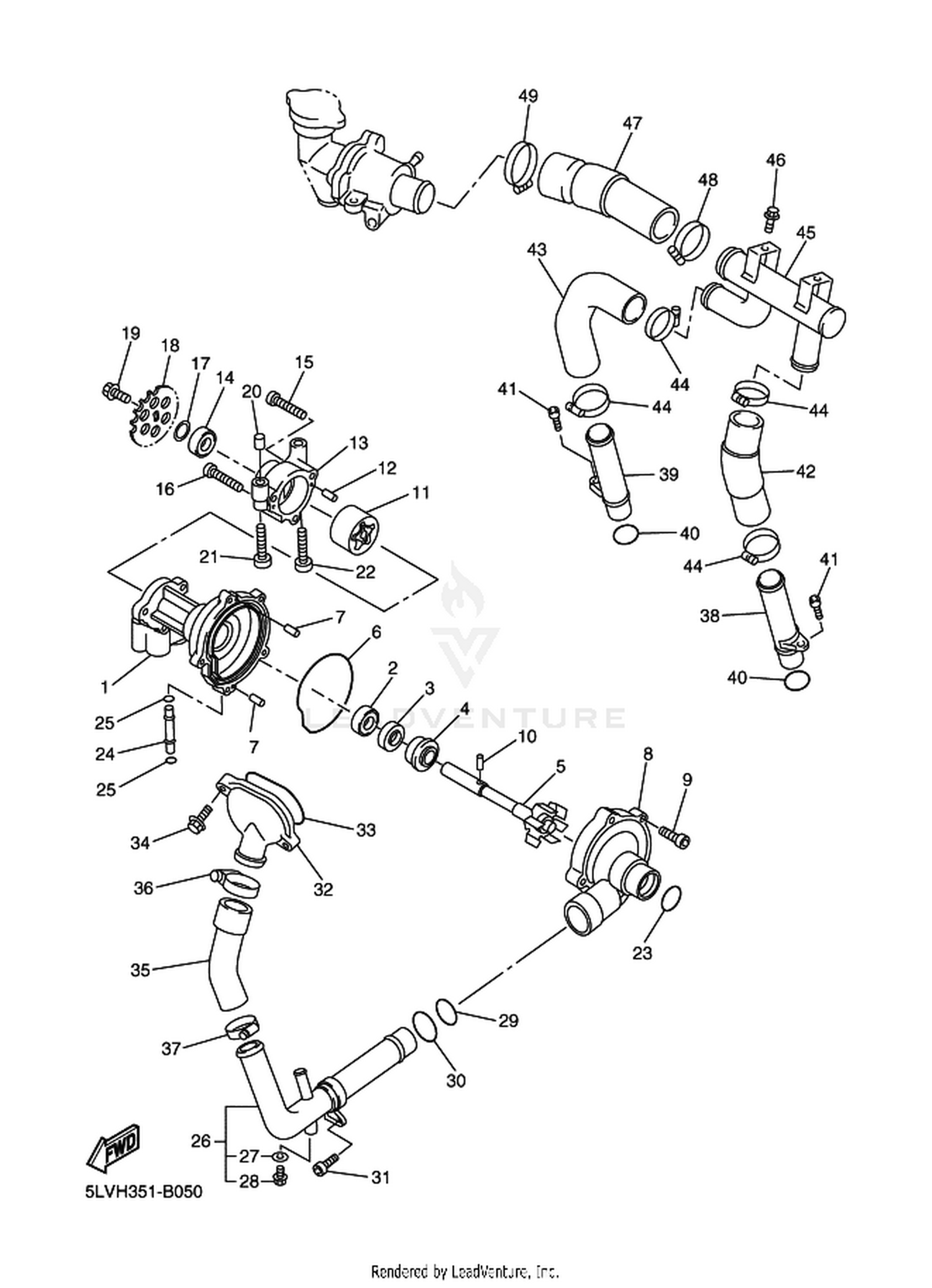

| Ref | Part Number | Description |
|---|
| 1 |
4XV-12421-00 |
HOUSING, WATER PUMP Price: Call Us |
| 2 |
93306-00106 |
BEARING Price: Call Us |
| 3 |
93102-12372 |
OIL SEAL Price: Call Us |
| 4 |
11H-12438-10 |
SEAL, MECHANICAL Price: Call Us |
| 5 |
4XV-12450-00 |
IMPELLER SHAFT ASSY Price: Call Us |
| 7 |
93604-10011 |
PIN, DOWEL Price: Call Us |
| 8 |
4XV-12422-00 |
COVER, HOUSING Price: Call Us |
| 9 |
91317-06025 |
BOLT Price: Call Us |
| 10 |
93603-17070 |
PIN, DOWEL Price: Call Us |
| 11 |
4XV-13310-00 |
ROTOR ASSY 1 Price: Call Us |
| 12 |
93603-12007 |
PIN, DOWEL Price: Call Us |
| 13 |
4XV-13336-00 |
HOUSING, ROTOR Price: Call Us |
| 14 |
93306-00106 |
BEARING Price: Call Us |
| 15 |
91317-06035 |
BOLT Price: Call Us |
| 16 |
91317-06040 |
BOLT Price: Call Us |
| 17 |
90201-12541 |
WASHER, PLATE Price: Call Us |
| 18 |
4XV-13355-00 |
SPROCKET, DRIVEN Price: Call Us |
| 19 |
90105-06154 |
BOLT, FLANGE Price: Call Us |
| 20 |
91808-30031 |
PIN, DOWEL Price: Call Us |
| 21 |
90110-06026 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 22 |
90110-06063 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 23 |
93210-357A2 |
O-RING Price: Call Us |
| 24 |
4XV-12485-00 |
PIPE 5 Price: Call Us |
| 25 |
93210-06667 |
O-RING Price: Call Us |
| 26 |
5LV-12481-01 |
PIPE 1 Price: Call Us |
| 27 |
90430-06014 |
GASKET Price: Call Us |
| 28 |
90153-06029 |
SCREW, HEXAGON Price: Call Us |
| 29 |
93210-235A1 |
O-RING Price: Call Us |
| 30 |
93210-27370 |
O-RING Price: Call Us |
| 31 |
90110-06226 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 32 |
4XV-12469-00 |
JOINT 1 Price: Call Us |
| 33 |
93210-47675 |
O-RING Price: Call Us |
| 34 |
95024-06020 |
BOLT, FLANGE Price: Call Us |
| 35 |
4XV-12576-00 |
HOSE 1 Price: Call Us |
| 36 |
90450-38040 |
HOSE CLAMP ASSY Price: Call Us |
| 37 |
90450-35001 |
HOSE CLAMP ASSY Price: Call Us |
| 38 |
5LV-12482-00 |
PIPE 2 Price: Call Us |
| 39 |
5LV-12483-00 |
PIPE 3 Price: Call Us |
| 40 |
93210-18417 |
O-RING Price: Call Us |
| 41 |
91317-06016 |
BOLT Price: Call Us |
| 42 |
5LV-12577-00 |
HOSE 2 Price: Call Us |
| 43 |
5LV-12578-00 |
HOSE 3 Price: Call Us |
| 44 |
90450-28014 |
HOSE CLAMP ASSY Price: Call Us |
| 45 |
5LV-12485-00 |
PIPE 5 Price: Call Us |
| 46 |
95827-06010 |
BOLT, FLANGE Price: Call Us |
| 47 |
5LV-12579-00 |
HOSE 4 Price: Call Us |
| 48 |
90450-35001 |
HOSE CLAMP ASSY Price: Call Us |
