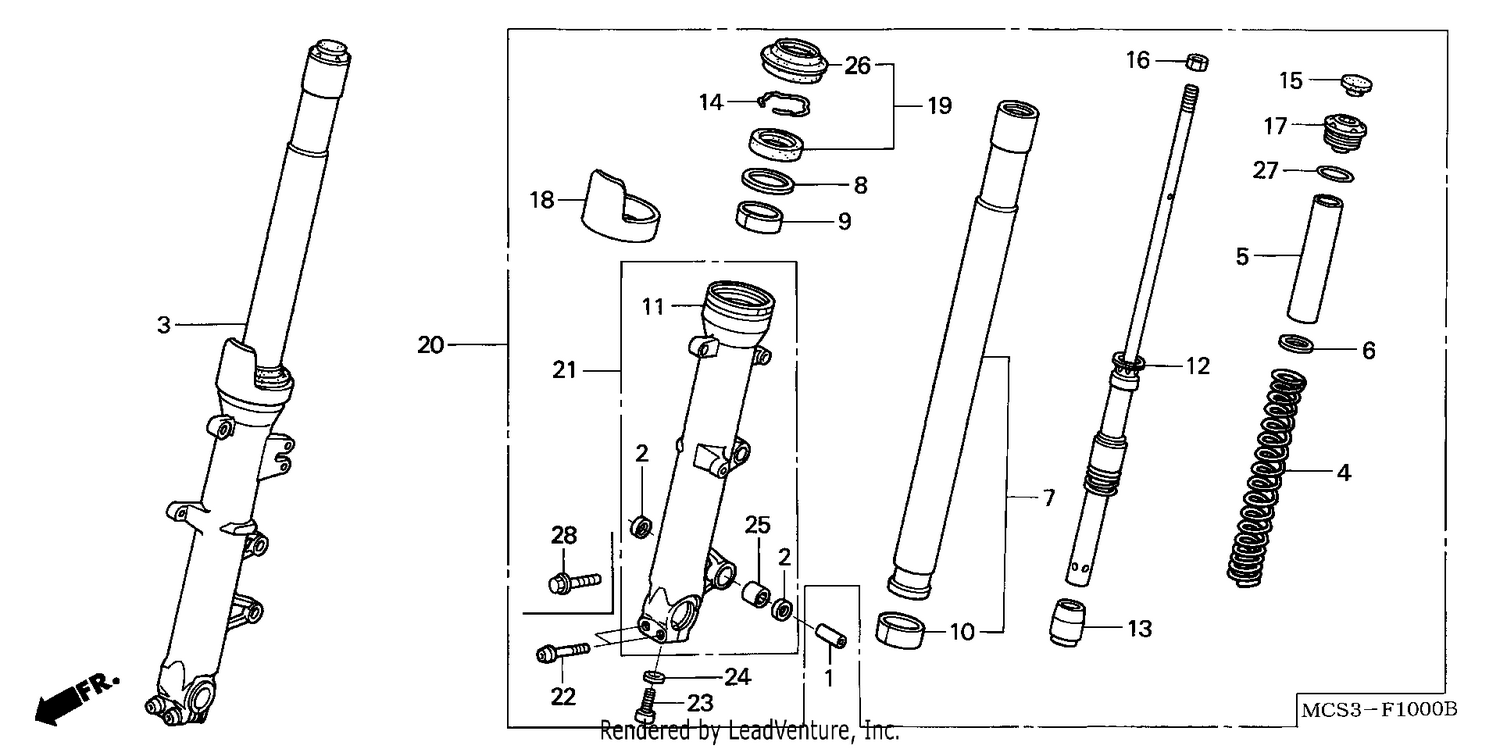

FRONT FORK

FRONT FORK

Parts (32)

RefPart NumberDescription
1 45452MZ2000 COLLAR, PIVOT Price: Call Us
2 45134KB7005 DUST SEAL, BRAKE CAM (NOK) Price: Call Us
3 51400MCSG02 FORK ASSY., R. FR. Price: Call Us
3 51400MCSG03 FORK ASSY., R. FR. Price: Call Us
4 51401MCSG01 SPRING, FR. FORK Price: Call Us
5 51402MCSG01 COLLAR, SPRING Price: Call Us
6 51403MBR003 PLATE, SPRING JOINT Price: Call Us
7 51410MCSG01 PIPE COMP., FR. FORK Price: Call Us
7 51410MCSG02 PIPE COMP., FR. FORK Price: Call Us
8 51412KZ3003 RING, BACK UP Price: Call Us
9 51414MCH003 BUSH, GUIDE Price: Call Us
10 51415MCSG01 BUSH, SLIDER Price: Call Us
11 51420MCSG01 CASE, R. BOTTOM Price: Call Us
12 51430MCSG01 DAMPER COMP., FR. Price: Call Us
12 51430MCSG02 DAMPER COMP., FR. Price: Call Us
13 51432MCSG01 PIECE, OIL LOCK Price: Call Us
13 51432MS2003 PIECE, OIL LOCK Price: Call Us
14 51447KZ3003 RING, OIL SEAL STOPPER Price: Call Us
15 51449MN5003 CAP, FORK PIPE (SHOWA) Price: Call Us
16 51451MAJG41 NUT, HEX., 10MM Price: Call Us
17 51454MCSG01 BOLT, FR. FORK Price: Call Us
18 51460MCSG01 PROTECTOR, FORK PIPE Price: Call Us
19 51490MCA003 SEAL SET, FR. FORK Price: Call Us
20 51500MCSG02 FORK ASSY., L. FR. Price: Call Us
20 51500MCSG03 FORK ASSY., L. FR. Price: Call Us
21 51520MCSG01 CASE COMP., L. BOTTOM Price: Call Us
22 90103MT7000 BOLT, SOCKET, 8X45 Price: Call Us
23 90116383721 BOLT, SOCKET, 8X27 Price: Call Us
23 90117MCSG01 BOLT, SOCKET, 8MM Price: Call Us
24 90544283000 WASHER, SPECIAL, 8MM Price: Call Us
25 91051MCWD01 BEARING, NEEDLE, 14X20X20 Price: Call Us
26 91254MCA003 SEAL, DUST Price: Call Us
