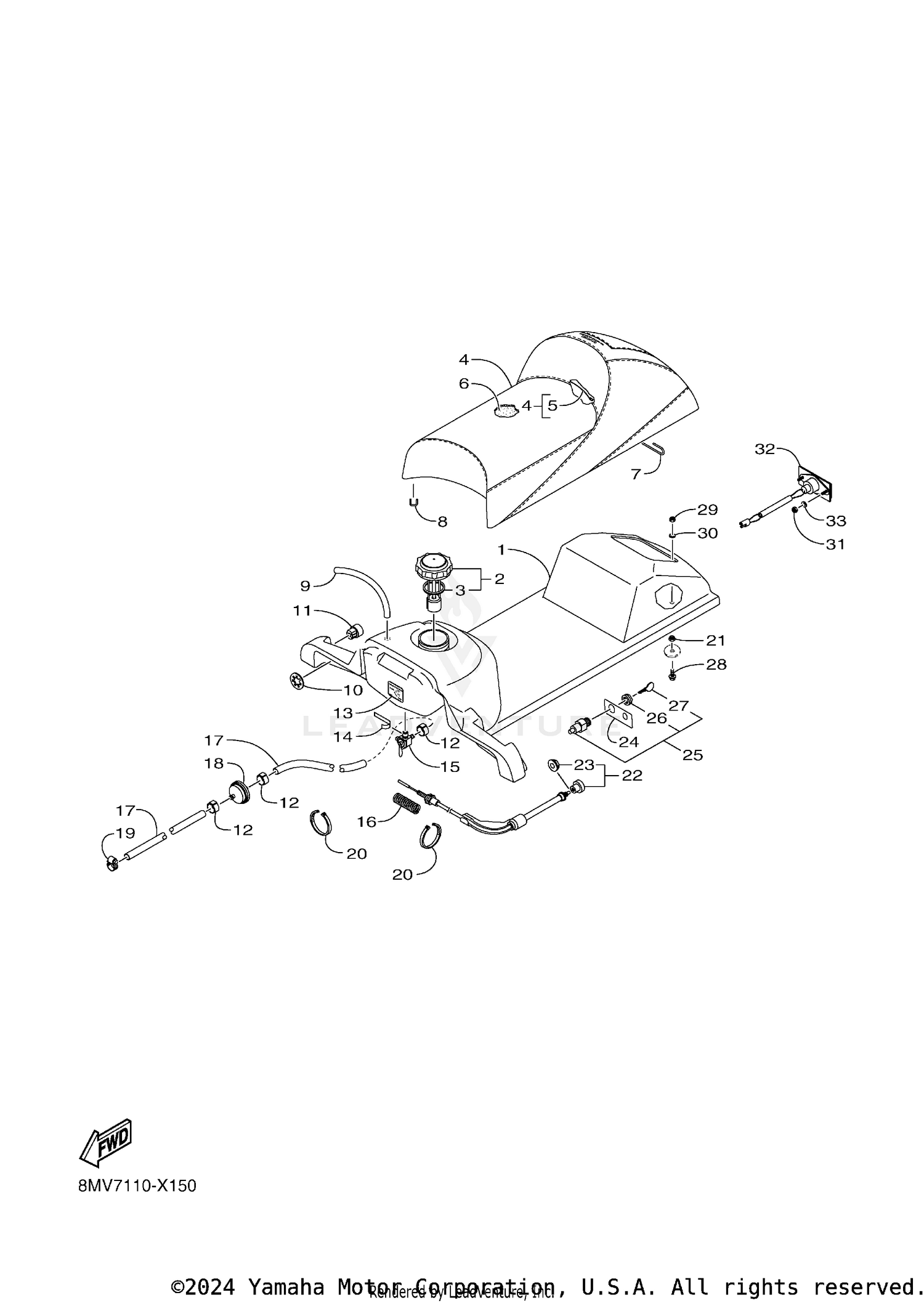

| Ref | Part Number | Description |
|---|
| 1 |
8MV-F4111-00-00 |
TANK, FUEL Price: $542.99 |
| 2 |
8ML-F4611-00-00 |
BODY, CAP This part replaces 8JP-F4610-00-00. Price: $52.99 |
| 3 |
8JM-F4641-00-00 |
GASKET, CAP 1 Price: $4.45 |
| 4 |
8MV-F470F-40-00 |
SEAT COVER COMP. Price: $224.99 |
| 5 |
8JM-F473J-00-00 |
WIRE Price: $8.99 |
| 6 |
8JM-F4713-00-00 |
CUSHION Price: $172.99 |
| 7 |
8JM-F473W-00-00 |
WIRE Price: $4.50 |
| 9 |
8JM-RA901-30-00 |
HOSE, 7 Price: $23.99 |
| 10 |
8MV-RAH00-00-00 |
CIRCLIP, 1 Price: $1.65 |
| 11 |
8ML-F2184-00-00 |
BUSH Price: $20.99 |
| 12 |
8JM-RAC02-00-00 |
CLIP, 3 Price: $4.95 |
| 13 |
8JM-F415C-00-00 |
LABEL Price: $9.99 |
| 15 |
8JM-F4540-00-00 |
FUEL COCK COMP. Price: $99.99 |
| 16 |
8JM-RAD06-00-00 |
SPRING, COMPRESSION 2 Price: $14.99 |
| 18 |
8JM-F4501-01-00 |
FILTER, FUEL Price: $29.99 |
| 19 |
8JM-RAA00-00-00 |
HOSE CLAMP ASSY. 1 Price: $3.80 |
| 21 |
8JM-RA311-00-00 |
NUT, SELF-LOCKING 1/4-20 Price: $0.50 |
| 22 |
8JM-F6330-00-00 |
STARTER CABLE ASSY Price: $68.99 |
| 23 |
8JM-RA310-00-00 |
NUT, PLASTIC M24-1.5 Price: $2.80 |
| 24 |
8JM-K7741-00-00 |
INDICATOR 1 Price: $11.99 |
| 25 |
8JM-H194E-00-00 |
BODY SWITCH COMP. Price: $82.99 |
| 26 |
8JM-RA317-00-00 |
NUT, PLASTIC 5/8-32 Price: $3.10 |
| 27 |
8JM-H2511-00-00 |
KEY, MAIN SWITCH Price: $15.49 |
| 28 |
8MV-RA106-00-00 |
BOLT, FLANGE 1/4-20X0.75 Price: $11.49 |
| 29 |
8JM-RA312-00-00 |
NUT, CAP 1/4-20 Price: $2.20 |
| 30 |
8JP-RA450-00-00 |
WASHER, 6.87X25.4X2.32 Price: $0.95 |
| 31 |
8JP-RA363-00-00 |
NUT, FLANGE LOCKING M5X0.8 Price: $1.35 |
| 32 |
8JM-H4710-10-00 |
TAILLIGHT UNIT ASSY Price: $68.99 |
