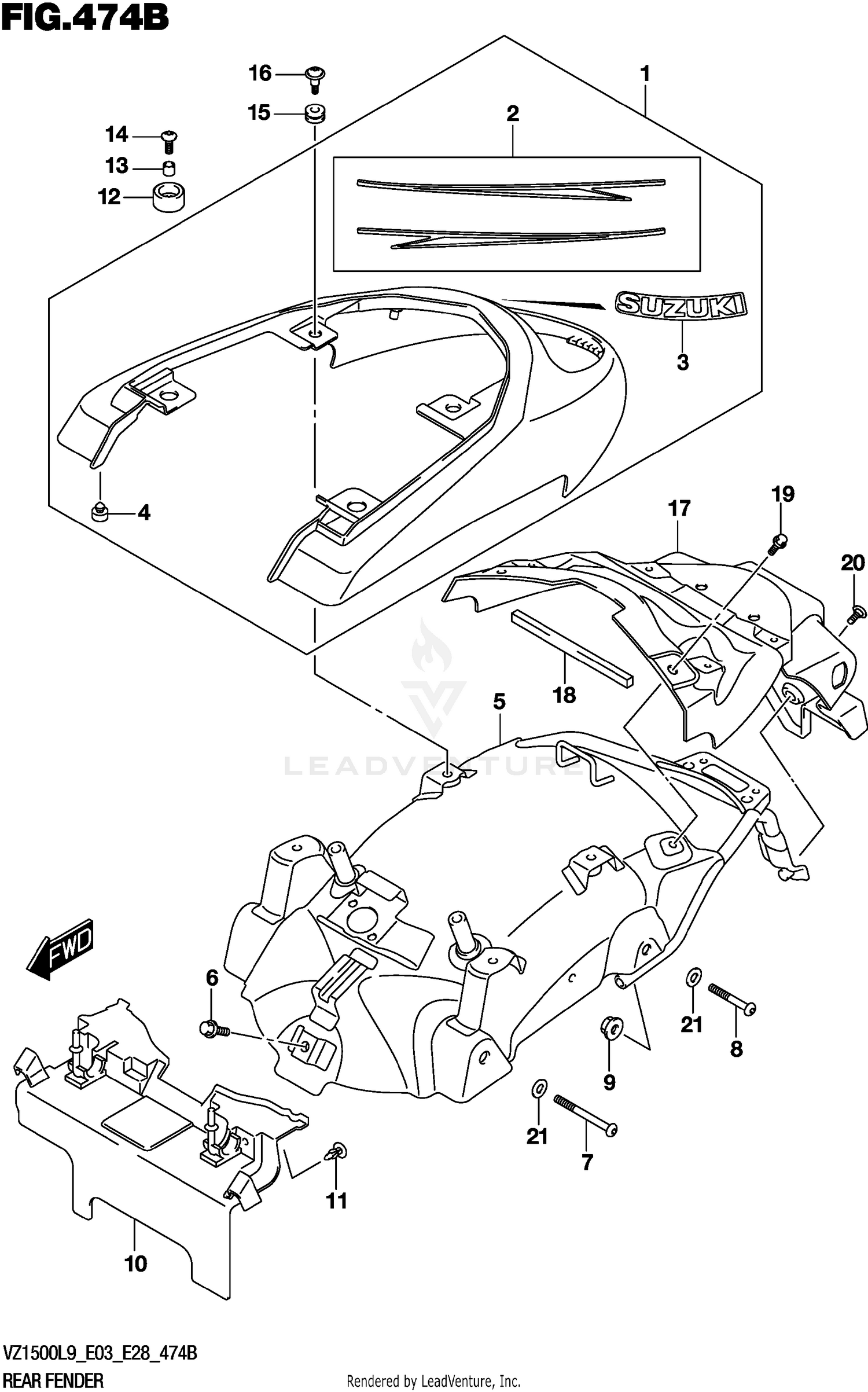

REAR FENDER 474B
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63110-40H10-AA3 | FENDER,REAR (GRAY,BLACK) Price: $388.94 |
| 4 | 09250-06017 | PLUG (OD:10) This part replaces 09250-06012. Price: $3.20 |
| 5 | 63140-40H10 | BRACE Price: $461.26 |
| 6 | 01550-0812A | BOLT Price: $2.79 |
| 7 | 09106-08182 | BOLT (8X70) Price: $5.16 |
| 8 | 09106-08183 | BOLT (8X50) Price: $4.56 |
| 9 | 08316-1008A | NUT Price: $2.99 |
| 10 | 63112-40H00 | MUDGUARD Price: $24.97 |
| 11 | 09409-06318 | CLIP Price: Call Us |
| 12 | 09320-10045 | CUSHION Price: $4.57 |
| 13 | 09180-06286 | SPACER (6.5X10X9.4) Price: $3.06 |
| 14 | 09139-06139 | SCREW (6X16) Price: $3.93 |
| 15 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 16 | 09139-06190 | BOLT (6X20) Price: $5.09 |
| 17 | 63311-40H00 | EXTENSION Price: $103.93 |
| 18 | 47161-29B00 | CUSHION Price: $8.11 |
| 19 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 20 | 09139-06144 | SCREW (6X12) Price: $3.02 |
