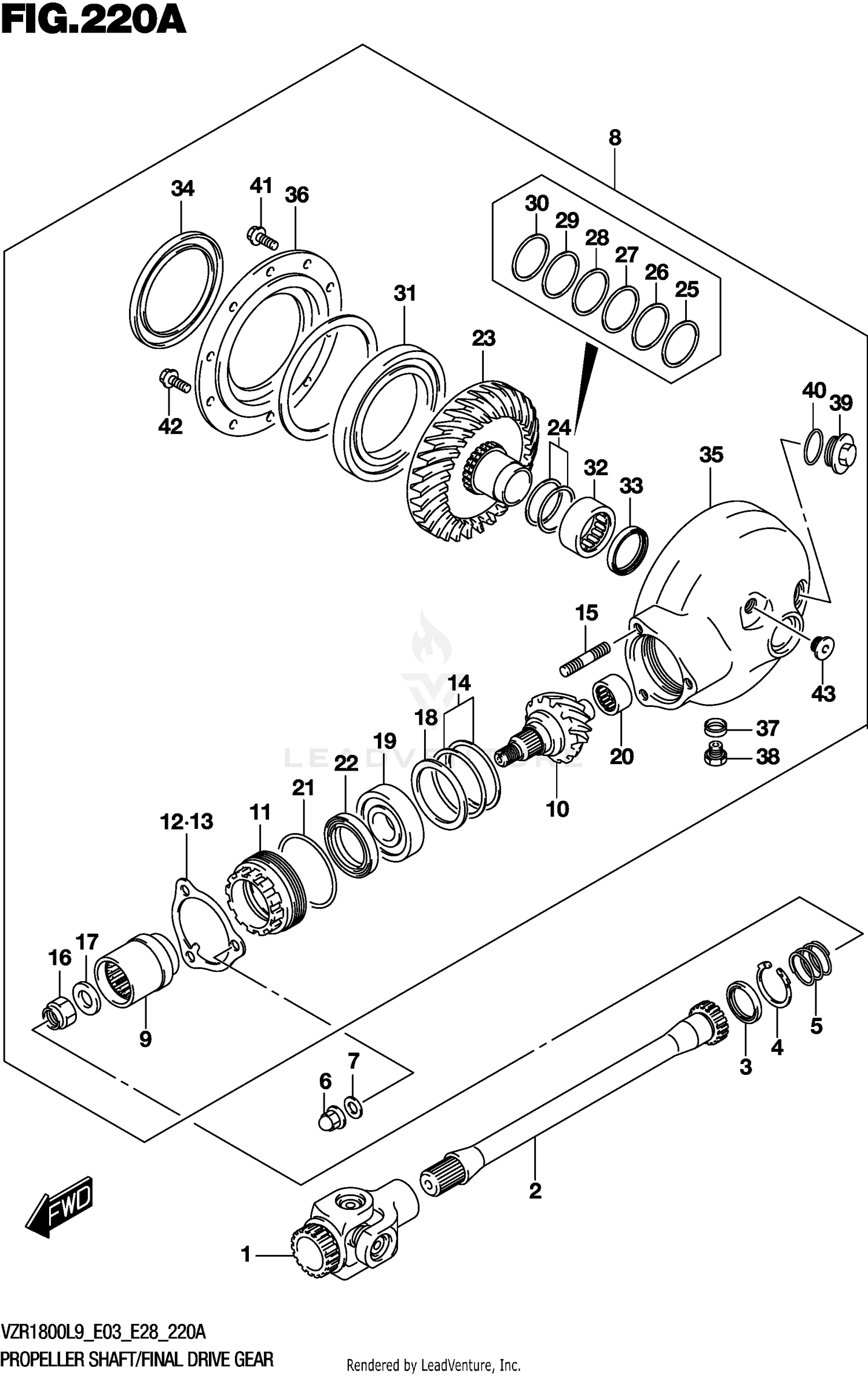

PROPELLER SHAFT/FINAL DRIVE GEAR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 27100-48G20 | YOKE,UNIVERSAL JOINT Price: $375.57 |
| 2 | 27151-48G20 | SHAFT,PROPELLER (L:375) Price: $297.58 |
| 3 | 09283-30026 | OIL SEAL (30X40.5X5.5) Price: $12.84 |
| 4 | 09381-40003 | CIRCLIP Price: $5.66 |
| 5 | 09440-30008 | SPRING Price: $3.91 |
| 8 | 27300-48851-019 | GEAR & CASE SET This part replaces 27300-48850-019. Price: $2,093.53 |
| 16 | 09159-16003 | NUT Price: $4.22 |
| 17 | 09160-16029 | WASHER (16X29X4.0) Price: $6.68 |
| 21 | 09280-64003 | O RING (D:3.1,ID:63.9) Price: $6.87 |
| 37 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 40 | 09280-26006 | O-RING (D:3.1,ID:26.4) Price: $3.36 |
| 41 | 01550-0825A | BOLT Price: $2.79 |
| 42 | 01550-1025A | BOLT Price: $3.77 |
