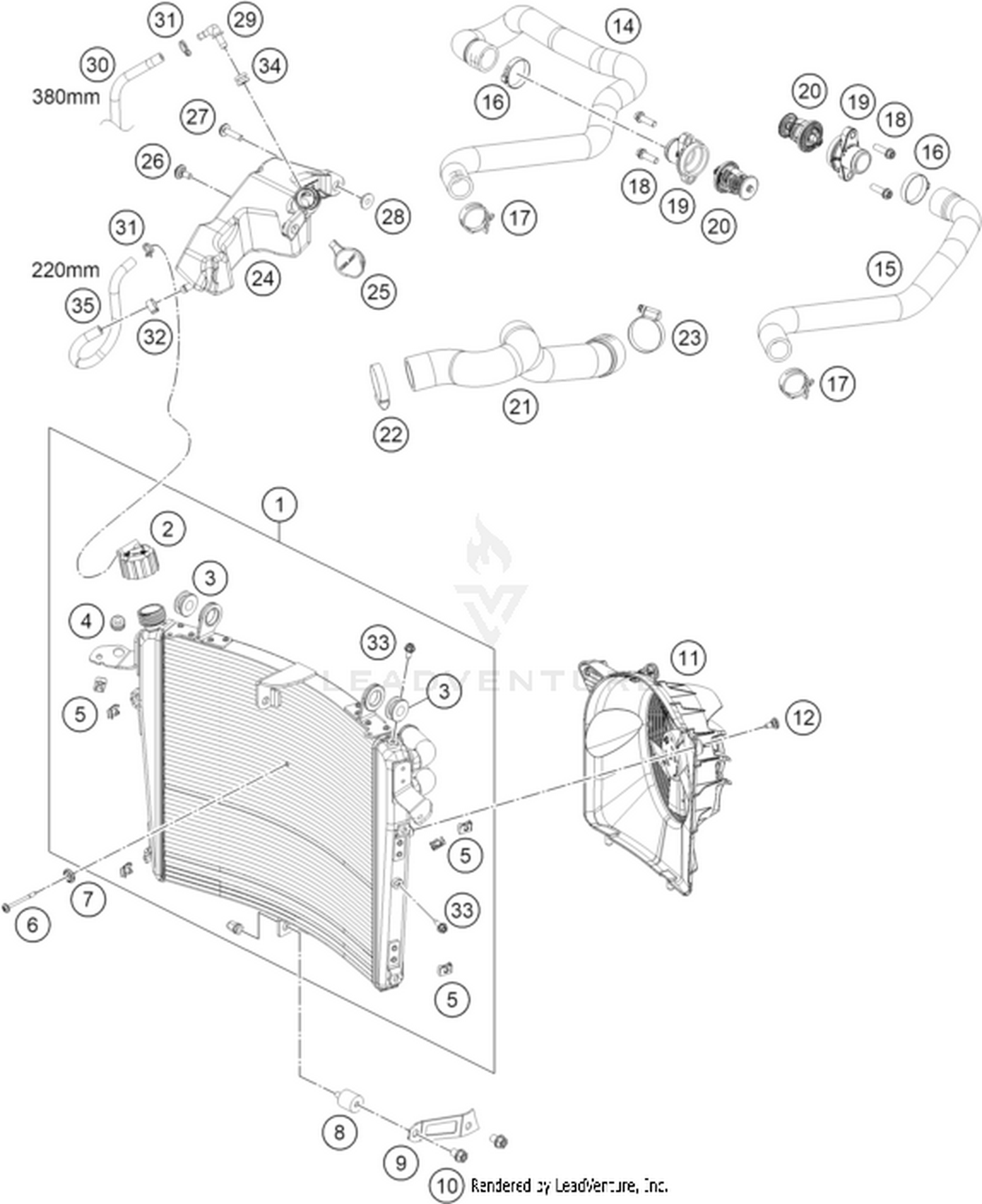

35 COOLING SYSTEM
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A62435010000 | Radiator Price: Call Us |
| 2 | 72035016000 | RADIATOR CAP 1,8 BAR Price: Call Us |
| 3 | 69155011 | Rubber grommet Price: Call Us |
| 5 | 59100108 | Clip nut M5 Price: Call Us |
| 6 | 69135015 | Screw K40x46/10 Price: Call Us |
| 7 | 69150036 | Washer Price: Call Us |
| 9 | 61735005000C1 | Fixing sheet bottom Price: Call Us |
| 10 | 0025060086 | HH collar screw M6x8 TX30 Price: Call Us |
| 11 | A62435044033 | Radiator fan cover cmpl. Price: Call Us |
| 14 | 61735026000 | Pre-formed hose, cylinder, fro Price: Call Us |
| 15 | 61735025000 | Pre-formed hose, cylinder, rea Price: Call Us |
| 16 | 00050331706 | Stufenlose Einohrklemme 33,1mm Price: Call Us |
| 17 | 0310001202800 | Space-sav. spring band clamp D Price: Call Us |
| 18 | 0025060206S | HH collar screw M6x20 TX30 Price: Call Us |
| 19 | 61235019100 | WATER CONNECTION CPL. Price: Call Us |
| 20 | 61935017000 | Thermostat 80° Price: Call Us |
| 21 | A62435027000 | Radiator/water pump pre-formed Price: Call Us |
| 22 | 0310001203800 | Space-sav. spring band clamp D Price: Call Us |
| 23 | 0310001204200 | Spring band clamp D42mm Price: Call Us |
| 24 | A62435065000 | Reservoir Price: Call Us |
| 25 | 61935065010 | Reservoir cover Price: Call Us |
| 26 | 0024060106 | HH COLLAR SCREW M6X10 TX30 Price: Call Us |
| 27 | 0024060256 | HH COLLAR SCREW M6X25 TX30 Price: Call Us |
| 28 | 59032006050 | Spring retainer 6.2X12X18X5.2 Price: Call Us |
| 29 | 60035068000 | Angle piece, reservoir Price: Call Us |
| 30 | 60035067001 | HOSE 6X10 EPDM 03 Price: Call Us |
| 31 | 58007117000 | YDNAC-CLAMP 10107 10MM Price: Call Us |
| 34 | 70003065000 | RUBBER SLEEVE 6X9X14MM Price: Call Us |
