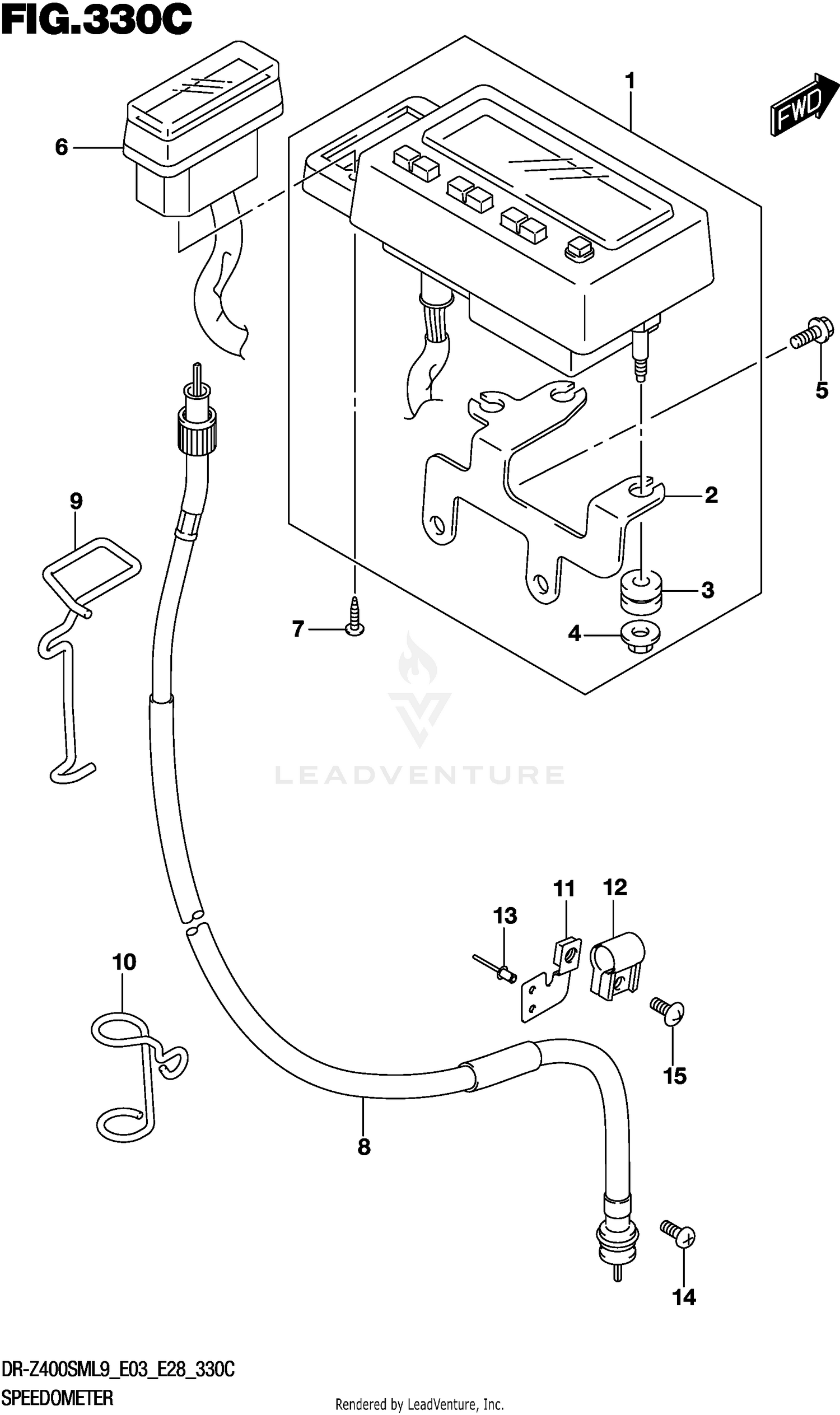

SPEEDOMETER (DR-Z400SML9 E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 34100-29F41 | SPEEDOMETER ASSY This part replaces 34100-29F40. Price: $1,149.56 |
| 3 | 34996-43410 | CUSHION Price: $4.72 |
| 4 | 08316-1005A | NUT Price: $2.64 |
| 5 | 01550-0616A | BOLT Price: $2.37 |
| 6 | 36380-29F00 | BOX ASSY PILOT LAMP Price: $307.31 |
| 7 | 03511-0420B | SCREW Price: $2.75 |
| 8 | 34910-29F20 | CABLE ASSY SPEEDOMETER Price: $52.50 |
| 9 | 34938-29F10 | GUIDE SPEEDOMETER CABLE NO.3 Price: $15.65 |
| 10 | 34938-29F20 | GUIDE METER CABLE NO.1 Price: $10.71 |
| 11 | 34938-29F30 | GUIDE METER CABLE NO.2 Price: $7.62 |
| 12 | 58621-07A20 | CLAMP,BRAKE HOSE Price: $5.17 |
| 13 | 09229-03011 | RIVET Price: $4.33 |
| 14 | 02112-0516B | SCREW Price: $2.35 |
