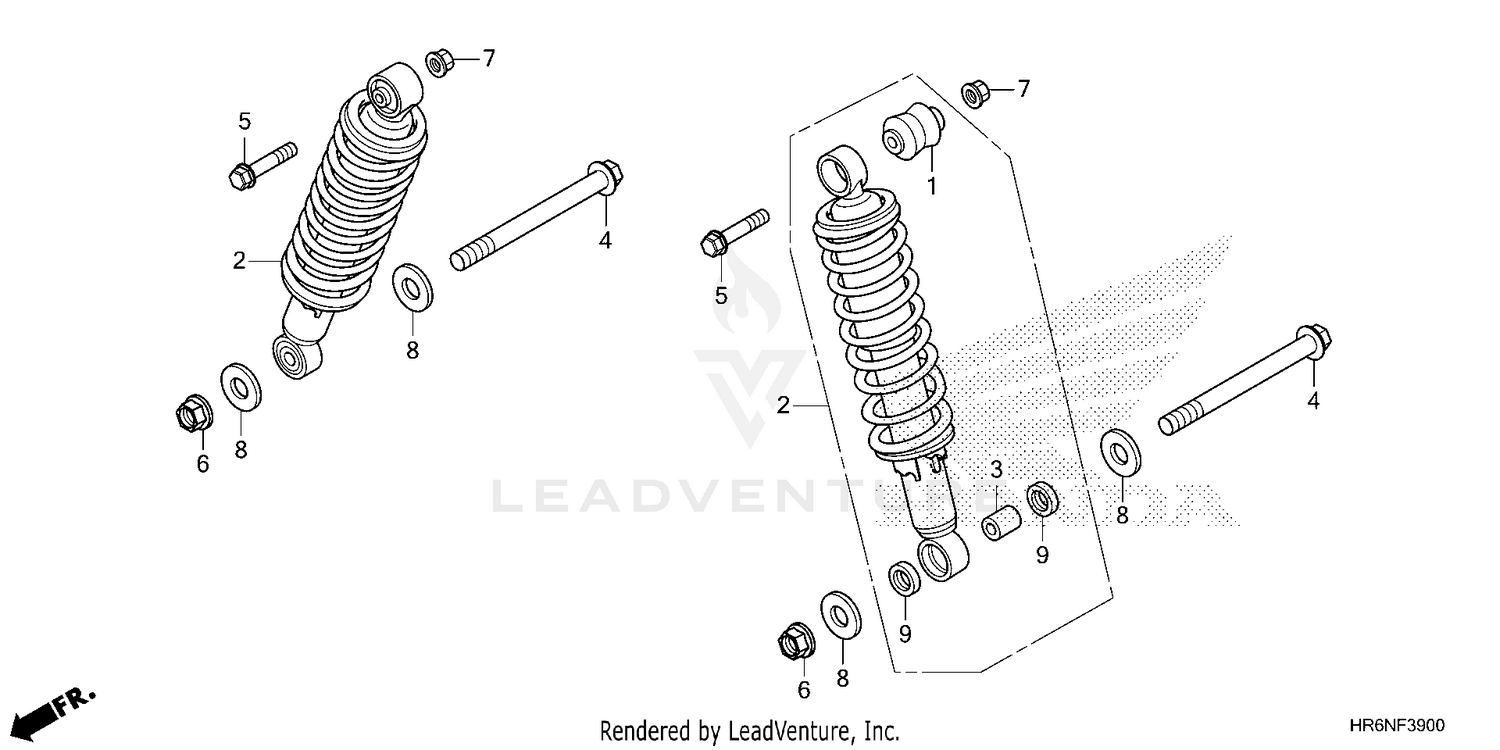

REAR SHOCK ABSORBER
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51489-HP5-601 | BUSH, DAMPER Price: $9.60 |
| 2 | 52400-HR6-A61ZB | CUSHION ASSY., RR. (TYPE1) Price: $146.44 |
| 3 | 52486-HP7-A01 | COLLAR, RR. SHOCK ABSORBER (LOWER) Price: $17.27 |
| 4 | 90101-HR6-A60 | BOLT, FLANGE (14X155) Price: $16.95 |
| 5 | 90120-HC4-000 | BOLT, FLANGE (10X55) BOLT, FLANGE (10X50) Price: $8.11 |
| 6 | 90213-S73-003 | NUT, SELF-LOCK (14MM) Price: $6.47 |
| 7 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) Price: $3.76 |
| 8 | 90501-HP7-A00 | WASHER (15MM) Price: $3.49 |
