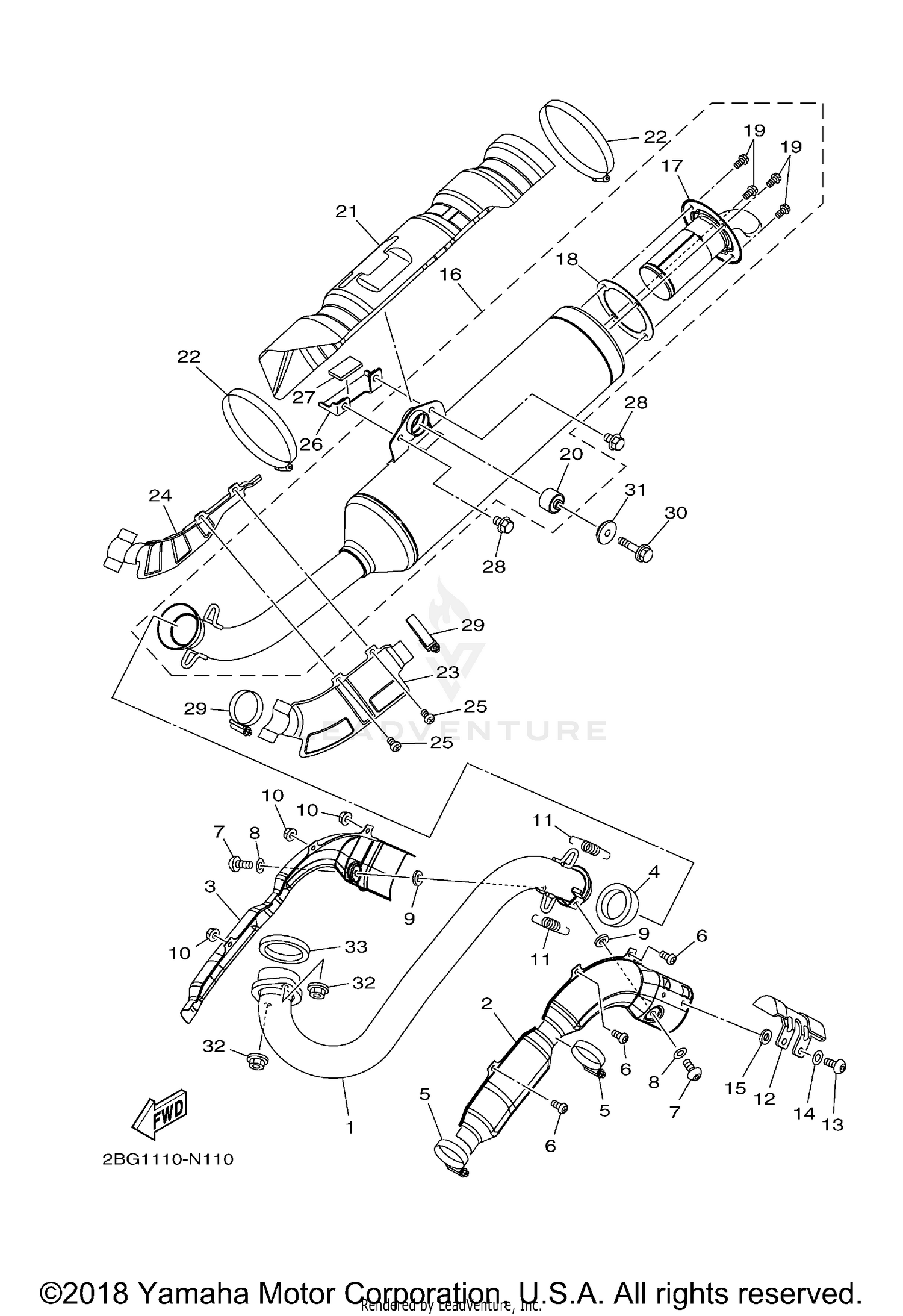

| Ref | Part Number | Description |
|---|
| 1 |
2BG-E4611-01-00 |
PIPE, EXHAUST 1 Price: $93.99 |
| 2 |
2BG-E4627-00-00 |
COVER, EXHAUST Price: $46.99 |
| 3 |
B16-E463B-00-00 |
PROTECTOR, EXHAUST PIPE 2 Price: $63.99 |
| 4 |
1HP-E4714-00-00 |
GASKET, MUFFLER Price: $36.99 |
| 5 |
90450-45806-00 |
HOSE CLAMP ASSY Price: $23.99 |
| 6 |
98517-06012-00 |
SCREW,PAN This part replaces 98502-06012-00. Price: $4.10 |
| 7 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 8 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 9 |
90201-05037-00 |
WASHER, PLATE Price: $5.49 |
| 10 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 11 |
90506-30006-00 |
SPRING, TENSION Price: $18.49 |
| 12 |
1HP-E4758-00-00 |
PROTECTOR, SILENCER Price: $10.99 |
| 13 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 14 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 15 |
90201-05015-00 |
WASHER, PLATE Price: $9.49 |
| 16 |
B16-E4703-01-00 |
MUFFLER COMP. 1 This part replaces B16-E4703-00-00. Price: $527.99 |
| 17 |
2BG-E4780-00-00 |
SPARK ARRESTER ASSY Price: $75.99 |
| 18 |
2BG-E4755-00-00 |
GASKET, SILENCER Price: $23.99 |
| 19 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 20 |
1HP-F7414-00-00 |
DAMPER, FOOTREST Price: $23.99 |
| 21 |
1HP-E4718-00-00 |
PROTECTOR, MUFFLER 1 Price: $50.99 |
| 22 |
90450-99805-00 |
HOSE CLAMP ASSY Price: $48.99 |
| 23 |
1HP-E471C-00-00 |
PROTECTOR ASSY 1 Price: $51.99 |
| 24 |
1HP-E472C-00-00 |
PROTECTOR ASSY., 2 Price: $51.99 |
| 25 |
98517-06012-00 |
SCREW,PAN This part replaces 98502-06012-00. Price: $4.10 |
| 26 |
1HP-E477U-00-00 |
STOPPER 1 Price: $25.99 |
| 27 |
1HP-E4733-00-00 |
MAT 1 Price: $22.99 |
| 28 |
95817-08012-00 |
BOLT, FLANGE This part replaces 95822-08012-00. Price: $5.49 |
| 29 |
90450-45806-00 |
HOSE CLAMP ASSY Price: $23.99 |
| 30 |
95817-08040-00 |
BOLT, FLANGE This part replaces 95812-08040-00. Price: $7.49 |
| 31 |
3B4-14759-01-00 |
WASHER Price: $19.99 |
| 32 |
95702-08500-00 |
NUT, WITH WASHER Price: $1.05 |
