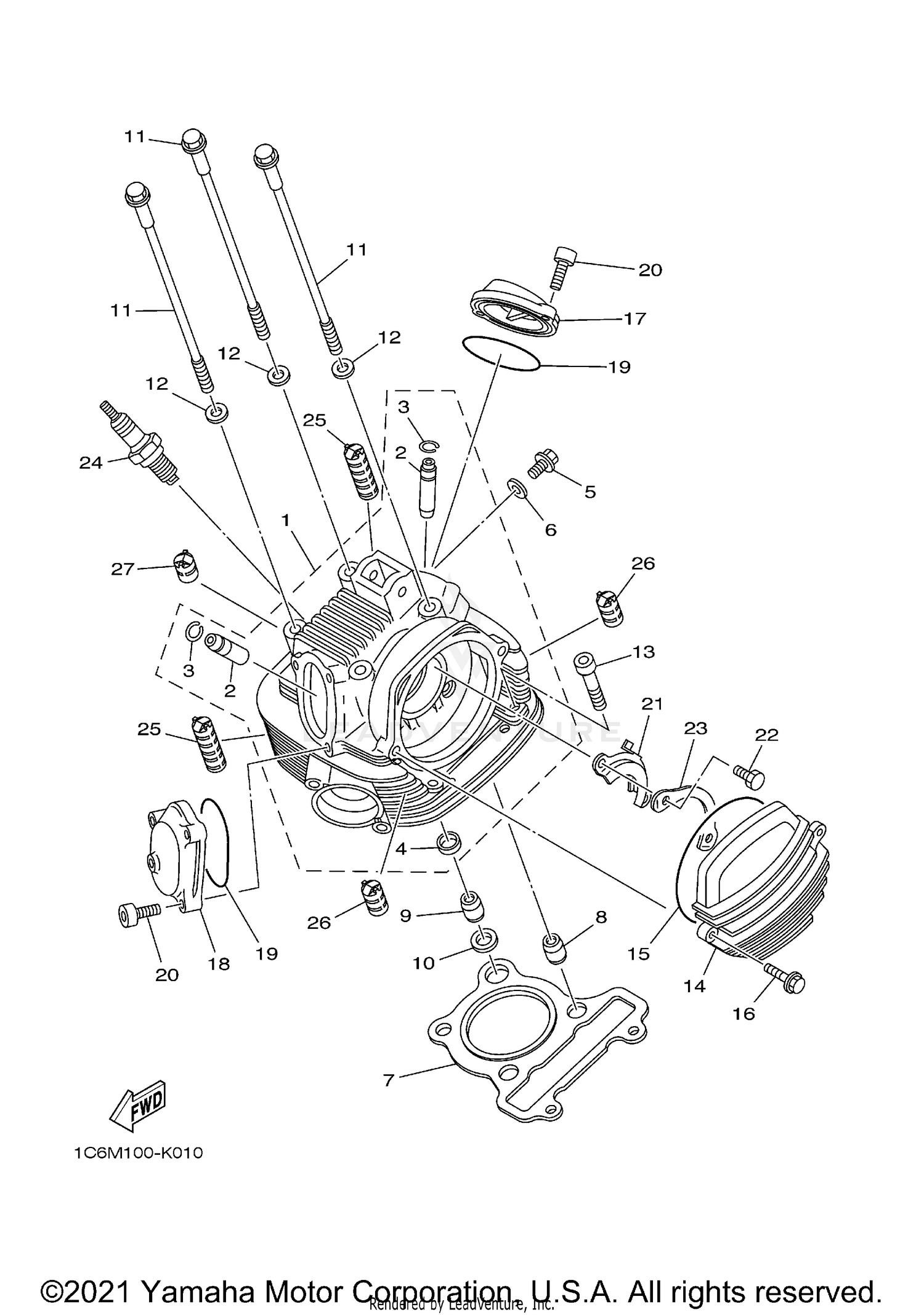

| Ref | Part Number | Description |
|---|
| 1 |
1C6-11101-00-00 |
CYLINDER HEAD ASSY Price: $820.99 |
| 2 |
5H0-11133-11-00 |
GUIDE, INTAKE VALVE Price: $74.99 |
| 3 |
93440-10085-00 |
CIRCLIP Price: $9.49 |
| 4 |
90385-12039-00 |
COLLAR Price: $12.49 |
| 5 |
90153-06029-00 |
SCREW, HEXAGON Price: $11.49 |
| 6 |
90430-06014-00 |
GASKET Price: $8.60 |
| 7 |
59V-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $42.99 |
| 8 |
99530-14016-00 |
PIN, DOWEL This part replaces 91810-16016-00. Price: $3.80 |
| 9 |
93612-16254-00 |
PIN, DOWEL This part replaces 91812-16807-00. Price: $6.49 |
| 10 |
90430-12186-00 |
GASKET Price: $16.49 |
| 11 |
90105-08117-00 |
BOLT, FLANGE Price: $9.49 |
| 12 |
90201-080L7-00 |
WASHER, PLATE This part replaces 90201-08609-00. Price: $4.05 |
| 13 |
9131M-08045-00 |
BOLT Price: $2.40 |
| 14 |
4VW-E1185-10-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $43.99 |
| 15 |
93211-05471-00 |
O-RING Price: $16.49 |
| 16 |
98517-06020-00 |
SCREW,PAN HEAD This part replaces 9502M-06020-00. Price: $2.35 |
| 17 |
4VW-E1186-10-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $32.99 |
| 18 |
4VW-E1187-10-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $32.99 |
| 19 |
93210-57634-00 |
O-RING Price: $15.49 |
| 20 |
9131M-06018-00 |
BOLT Price: $1.15 |
| 21 |
5H0-1111F-00-00 |
PLATE Price: $26.99 |
| 22 |
97017-06012-00 |
BOLT This part replaces 9700M-06012-00. Price: $4.05 |
| 23 |
90215-06184-00 |
WASHER, LOCK Price: $11.49 |
| 24 |
DR8-EA000-00-00 |
PLUG, SPARK (NGK DR8EA) Price: $4.40 |
| 25 |
15A-11162-00-00 |
ABSORBER 2 Price: $22.99 |
| 26 |
5H0-11161-00-00 |
ABSORBER 1 This part replaces 5H0-11162-00-00. Price: $10.99 |
