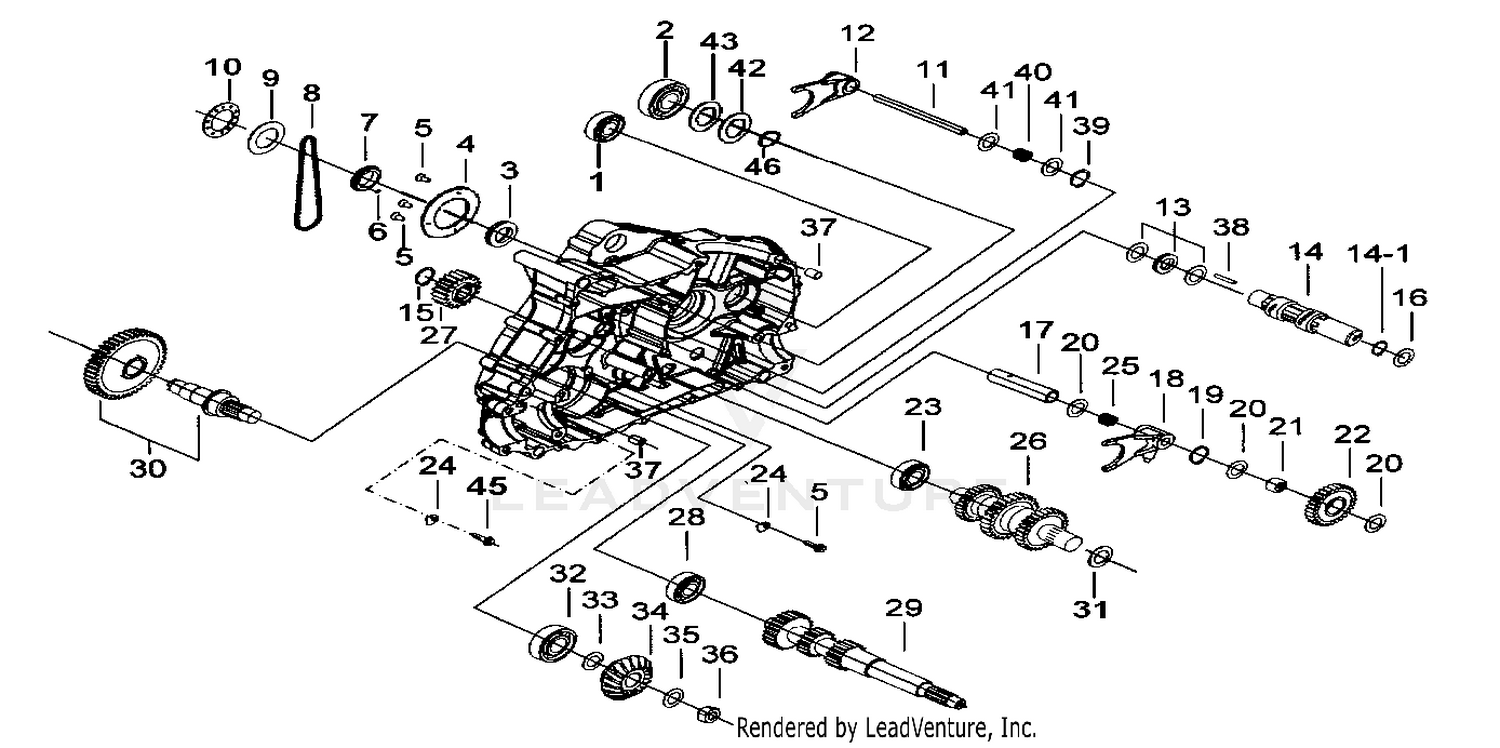

| Ref | Part Number | Description |
|---|
| 1 |
927315 |
BEARING,R CRNK CASE Price: $121.74 |
| 2 |
924163 |
BEARING,L CRNK CASE(2) Price: $349.55 |
| 3 |
924068 |
OIL SEAL φ34Xφ52X6 Price: $29.98 |
| 4 |
925664 |
RETAINER, CRANK CASE LH Not Available Price: |
| 5 |
S46601 |
SCREW-5,L CRNK CASE(2) Not Available Price: |
| 6 |
P30303 |
PIN, DOWEL-6,L CRNK CASE(2) Not Available Price: |
| 7 |
D9900071 |
CHAIN WHEEL, WATER PUMP Price: $58.53 |
| 8 |
924351 |
CHAIN, WATER PUMP Price: $59.60 |
| 9 |
924718 |
WASHER-19,L CRNK CASE(2) Not Available Price: |
| 10 |
924366 |
WASHER-10,L CRNK CASE(2) Not Available Price: |
| 11 |
924235 |
FORK POLE Not Available Price: |
| 12 |
924237 |
FORK-12,L CRNK CASE(2) Price: $70.67 |
| 13 |
924364 |
THRUST BEARING Price: $38.55 |
| 14 |
924701 |
CAM ASSY, GEAR SHAFT Price: $314.89 |
| 16 |
W99517 |
SHIM, REVERSE SHAFT Not Available Price: |
| 17 |
924186 |
SHAFT, REVERSE GEAR Not Available Price: |
| 18 |
924636 |
FORK, REVERSE GEAR Price: $72.14 |
| 20 |
W99709 |
WASHERφ17X30X1t Not Available Price: |
| 21 |
924643 |
BEARINGφ17xφ24x15 Not Available Price: |
| 22 |
925052 |
IDLER GEAR(28T) Price: $108.54 |
| 23 |
924182 |
BEARINGΦ25x52x15 Not Available Price: |
| 24 |
924185 |
CHUCK, BEARING,CRANKCASE Not Available Price: |
| 25 |
924699 |
SPRING, FORK-25,L CRNK CASE(2) Not Available Price: |
| 26 |
925165 |
GEAR COMP, TRANSMISSION(31T) Price: $800.47 |
| 27 |
925051 |
GEAR(19T) Price: $75.01 |
| 28 |
924180 |
BEARING Φ20x47x14 Price: $22.87 |
| 29 |
925558 |
SHAFT, TRANSMISSION(26T) Price: $324.88 |
| 30 |
925057 |
OUTPUT COUNTERSHAFT ASSY.(42T) Price: $365.59 |
| 31 |
W99012 |
WASHER-31,L CRNK CASE(2) Not Available Price: |
| 32 |
924066 |
BEARING φ35Xφ72X17 Not Available Price: |
| 33 |
W99413 |
SHIM 24X48X1T Not Available Price: |
| 33A |
W99414 |
SHIM 24X48X0.5T Not Available Price: |
| 33B |
W99415 |
SHIM 24X48X0.3T Not Available Price: |
| 33C |
W99417 |
SHIM 24X48X0.05T Not Available Price: |
| 34 |
924203 |
GEAR, SEC DRIVE BEVEL(17T) Not Available Price: |
| 35 |
W99304 |
SHIM-35,L CRNK CASE(2) Not Available Price: |
| 36 |
N33803 |
NUT, HEX HEAD Not Available Price: |
| 37 |
P40301 |
PIN, DOWEL,CYLINDER Not Available Price: |
| 38 |
924645 |
PIN, DOWEL-38,L CRNK CASE(2) Not Available Price: |
| 39 |
924149 |
C RING,R CRNK CASE Not Available Price: |
| 40 |
924700 |
FORK SPRING Price: $6.99 |
| 41 |
W99015 |
WASHER-41,L CRNK CASE(2) Not Available Price: |
| 42 |
925695 |
RETAINING PLATE Not Available Price: |
| 43 |
W99437 |
WASHER 0.2t Not Available Price: |
| 45 |
S46603 |
SCREW,CRANKCASE Not Available Price: |
