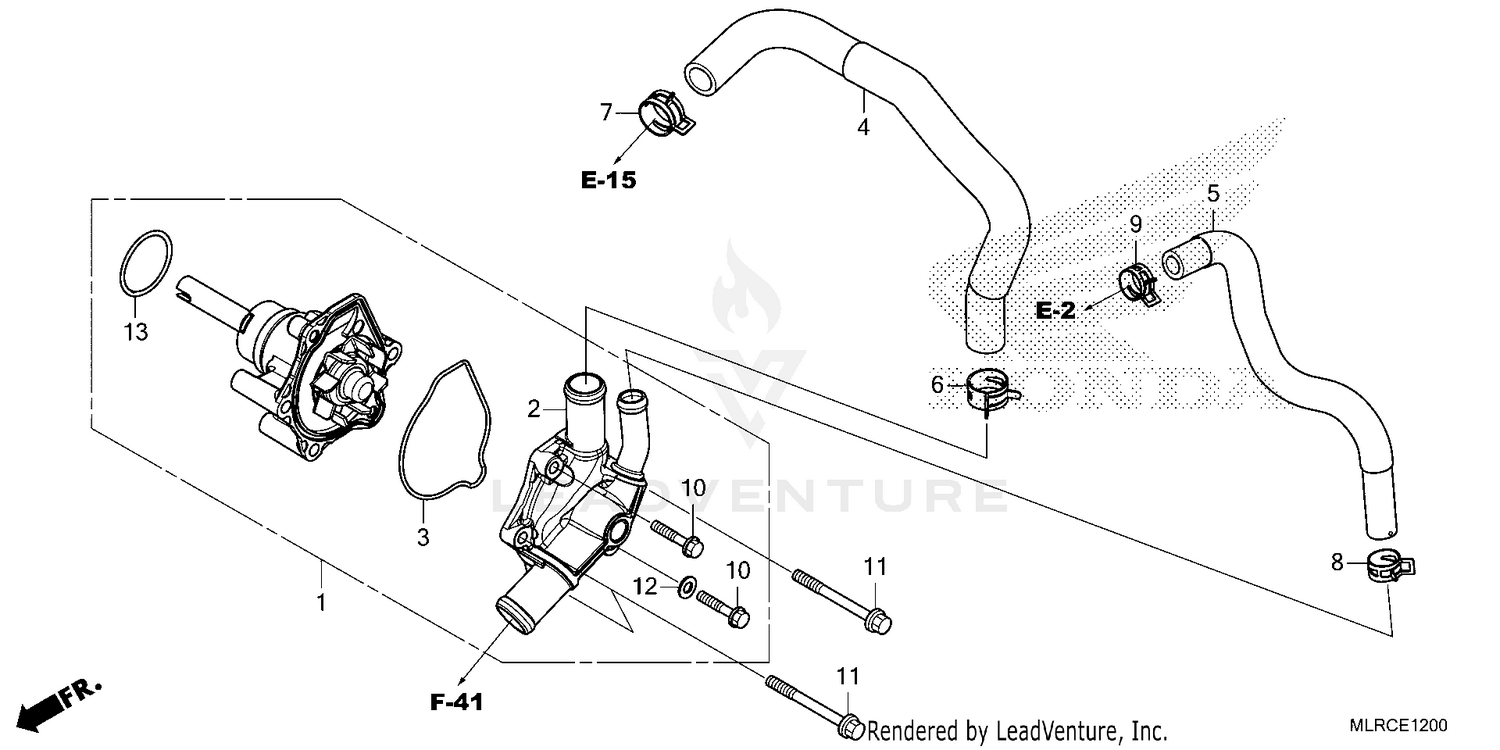

| Ref | Part Number | Description |
|---|
| 1 |
19200-MKP-305 |
WATER PUMP Price: $150.00 |
| 2 |
19220-MGZ-J00 |
COVER, WATER PUMP Price: $96.45 |
| 3 |
19226-MGZ-J00 |
GASKET, WATER PUMP BODY Price: $6.22 |
| 4 |
19525-MKP-D00 |
HOSE A, WATER Price: $40.69 |
| 5 |
19526-MKP-D00 |
HOSE, WATER BYPASS Price: $32.38 |
| 6 |
19531-MGZ-J00 |
CLIP, WATER HOSE (D27) Price: $2.27 |
| 7 |
19531-MJW-J00 |
CLIP, WATER HOSE (D27) Price: $2.15 |
| 8 |
19535-MGZ-J00 |
CLIP, WATER HOSE (D21) Price: $1.56 |
| 9 |
19535-MJW-J00 |
CLIP, WATER HOSE (D21) Price: $1.56 |
| 10 |
90028-GHB-680 |
BOLT, FLANGE (6X25) (S-NSHF) Price: $1.25 |
| 11 |
90028-GHB-780 |
BOLT, FLANGE (6X60) Price: $1.22 |
| 12 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
