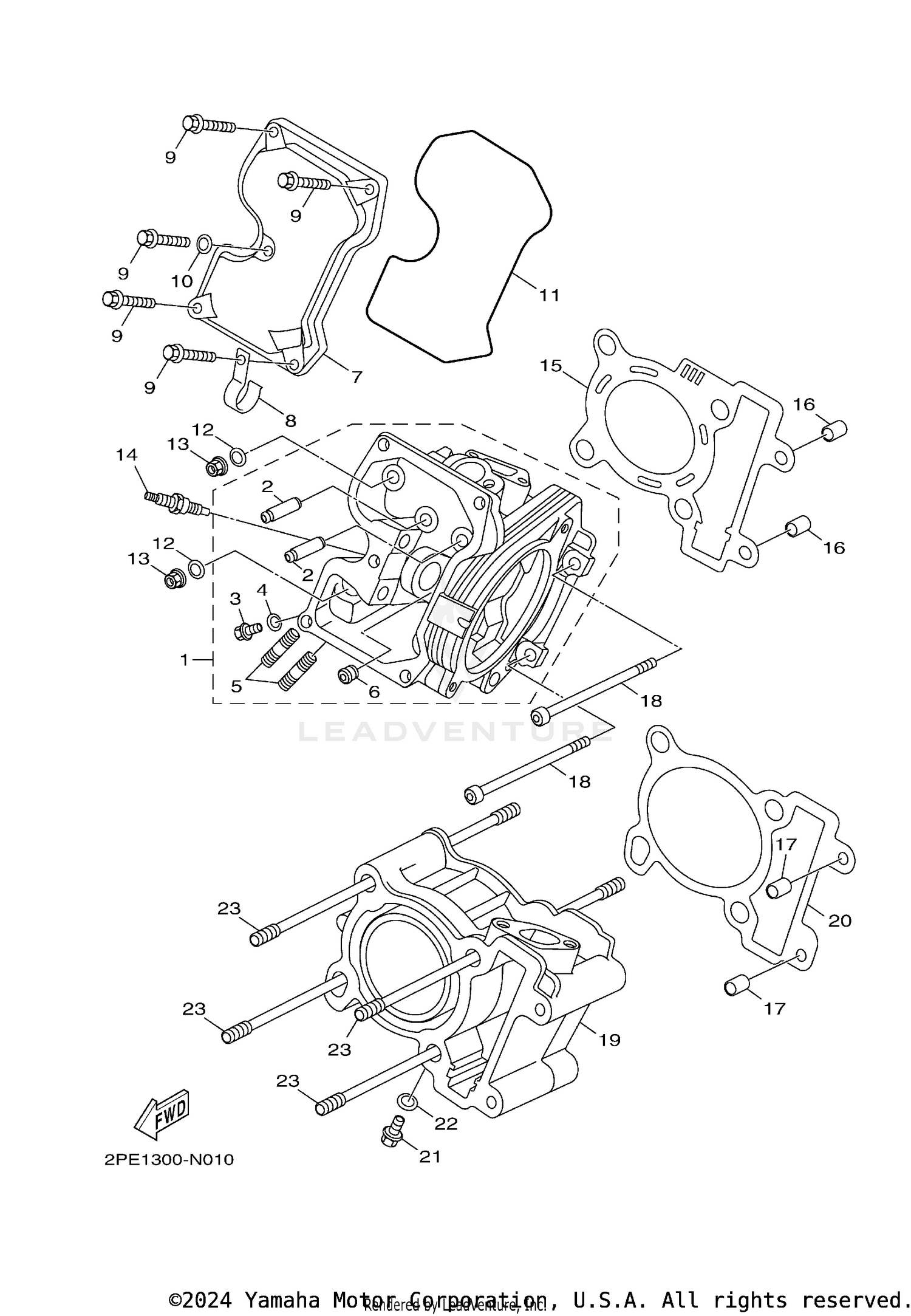

| Ref | Part Number | Description |
|---|
| 1 |
1DK-E1102-00-00 |
CYLINDER HEAD ASSY Price: $195.99 |
| 2 |
5YP-E1133-10-00 |
GUIDE, VALVE 1 Price: Call Us |
| 3 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 4 |
90430-06014-00 |
GASKET Price: $8.60 |
| 5 |
90116-08806-00 |
BOLT, STUD Price: $2.05 |
| 6 |
90340-12813-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 7 |
52S-E1191-00-00 |
COVER, CYLINDER HEAD 1 Price: $8.99 |
| 8 |
90462-12801-00 |
CLAMP Price: $1.75 |
| 9 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 10 |
90430-06014-00 |
GASKET Price: $8.60 |
| 11 |
52S-E1193-01-00 |
GASKET, HEAD COVER 1 Price: $4.25 |
| 12 |
90201-08883-00 |
WASHER, PLATE Price: $3.45 |
| 13 |
90179-08518-00 |
NUT Price: $1.65 |
| 14 |
CPR-8EA90-00-00 |
CPR8EA-9 NGK SPLUG Price: $10.49 |
| 15 |
52S-E1181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $11.49 |
| 16 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 17 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 18 |
91311-06100-00 |
BOLT, SOCKET HEAD This part replaces 91312-06100-00. Price: $4.55 |
| 19 |
52S-E1311-00-00 |
CYLINDER 1 Price: $137.99 |
| 20 |
52S-E1351-01-00 |
GASKET, CYLINDER Price: $4.20 |
| 21 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 22 |
90430-06014-00 |
GASKET Price: $8.60 |
