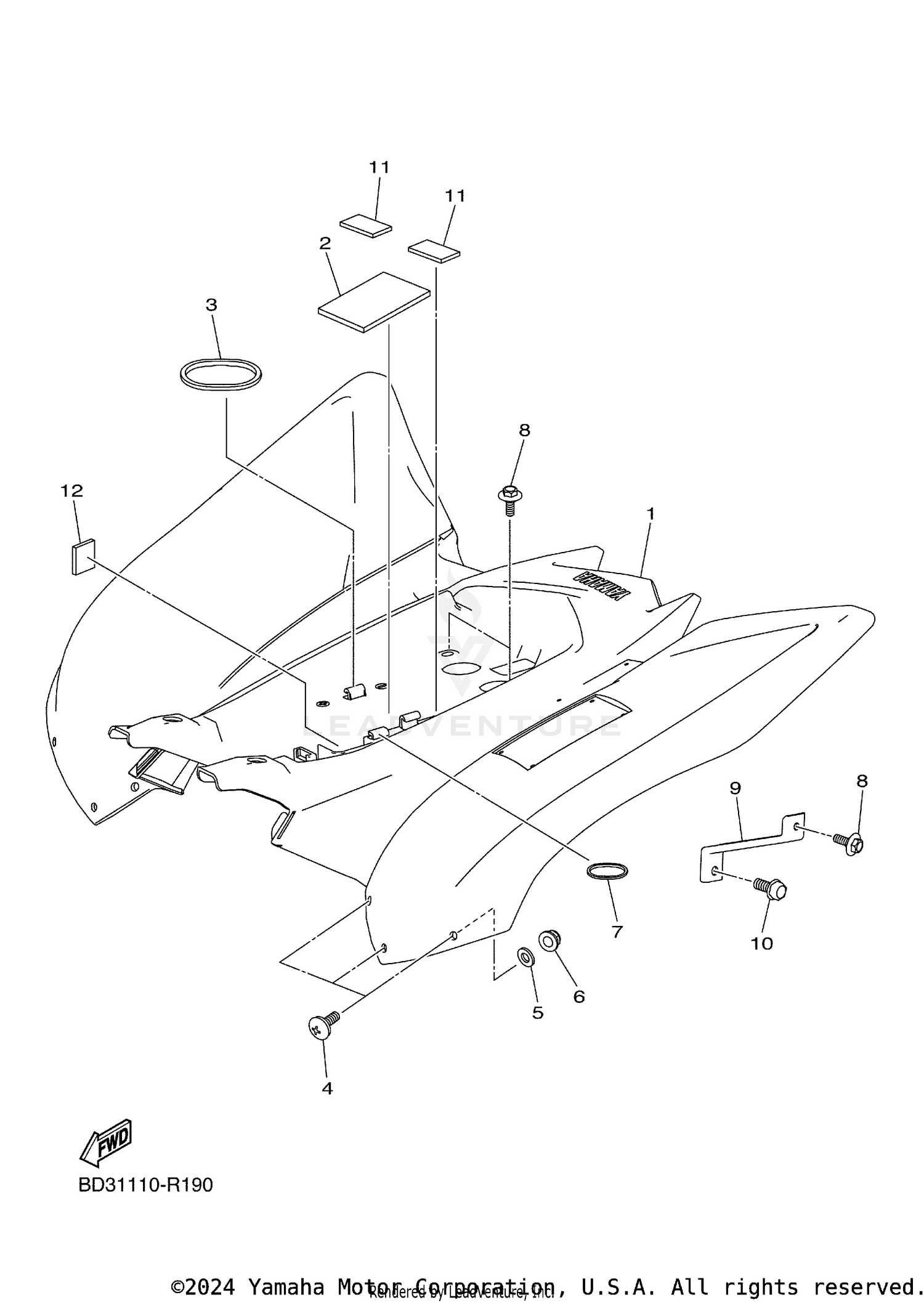

REAR FENDER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | BD3-H2122-00-00 | SEAT, BATTERY Price: $2.95 |
| 3 | BD3-H2131-00-00 | BAND, BATTERY Price: $8.49 |
| 4 | BD3-F11C8-00-00 | SCREW 4 Price: $6.49 |
| 5 | BD3-F2149-10-00 | WASHER Price: $2.90 |
| 6 | BD3-F4148-10-00 | NUT, SPEED 3 Price: $2.40 |
| 7 | BD3-F1376-00-00 | BAND, TOOL Price: $4.25 |
| 8 | BD3-F1632-10-00 | BOLT 2 Price: $3.90 |
| 9 | BYS-F1613-00-00 | STAY, FENDER 1 This part replaces BD3-F1613-00-00. Price: $32.99 |
| 10 | BD3-F4176-10-00 | BOLT 1 Price: $10.49 |
| 11 | BD3-F1639-00-00 | DAMPER 2 Price: $4.30 |
