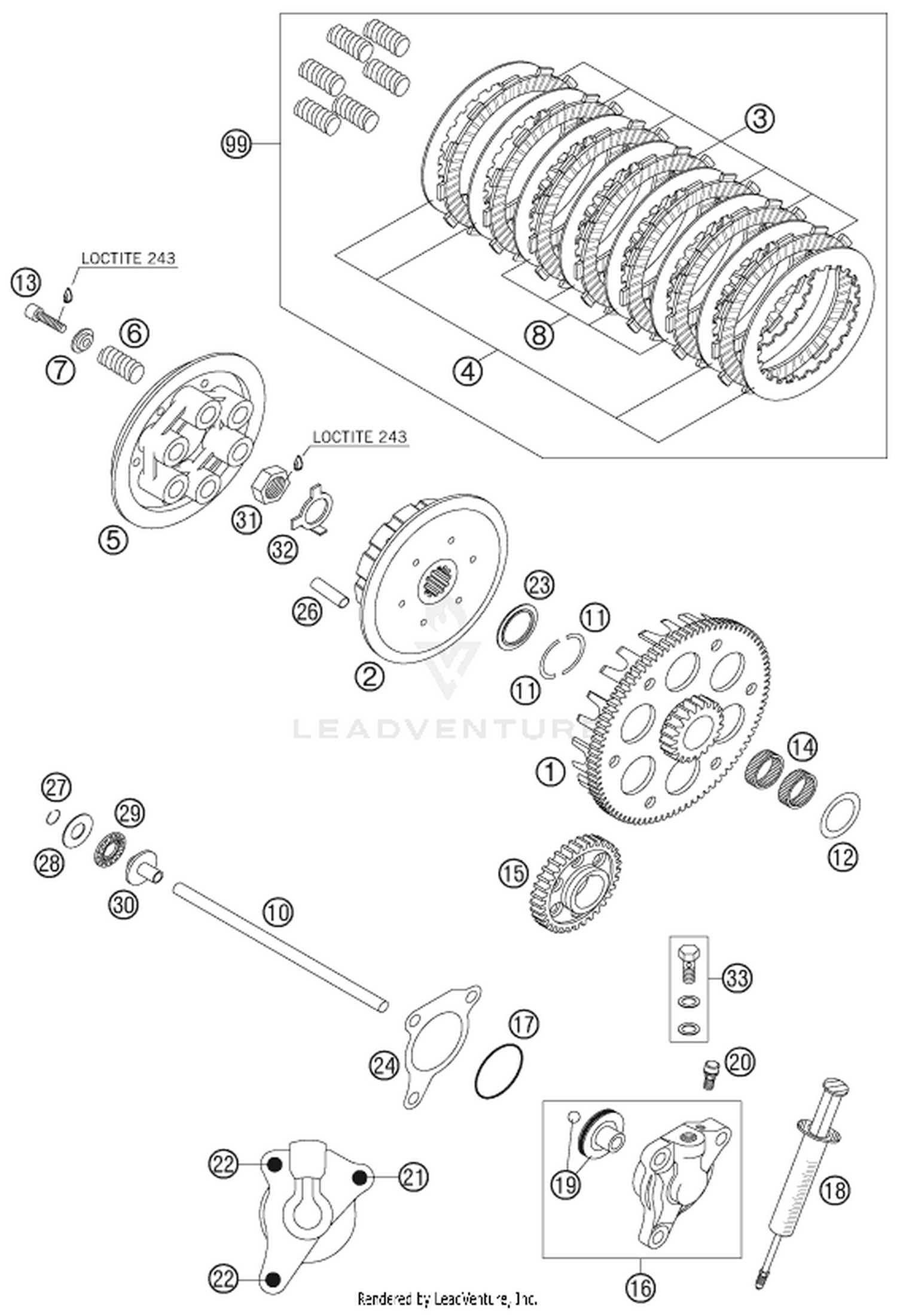

32 CLUTCH

32 CLUTCH

Parts (30)

RefPart NumberDescription
2 59032002500 INNER HUB - RACING 2007 Price: Call Us
3 79532011000 Lining disc 1,95mm This part replaces 59032011100. Price: Call Us
4 59032010100 INTERMEDIATE DISC 1MM 2002 Price: Call Us
5 59032003500 PRESSURE CAP WITH OIL BORE 07 Price: Call Us
6 59032005000 CLUTCH SPRING 2,5X43MM Price: Call Us
7 59032006050 Spring retainer 6.2X12X18X5.2 Price: Call Us
8 59032010200 INTERMEDIATE DISC 1,4MM 2002 Price: Call Us
10 59032054200 PUSH ROD 7x189,6 MM 06 Not Available Price:
11 59032007000 HALF-WASHER 03 Price: Call Us
12 59032017000 SUPPORTWASHER 25X35X1 Price: Call Us
13 0984060252 AH SCREW DIN6912 M6X25 Price: Call Us
14 0405252910 NEEDLE BEAR K 25X29X10 Price: Call Us
15 59032000033 PRIMARY GEAR 33-T Price: Call Us
16 75032061044 OUTPUT CYL. WITH BLEEDER SCREW This part replaces 59032061044. Price: Call Us
17 0770300015 O-ring 30x1.5 NBR 70 Price: Call Us
18 50329050000 VENT INJEKTION HYDR. CLUTCH Price: Call Us
19 75032061044 OUTPUT CYL. WITH BLEEDER SCREW This part replaces 59032066000. Price: Call Us
20 54732064000 BLEEDER SCREW WITH CAP Price: Call Us
21 0025060356 HH collar screw M6x35 TX30 This part replaces 0015060353. Price: Call Us
22 0025060206 HH collar screw M6x20 TX30 This part replaces 0015060203. Price: Call Us
23 59032009000 STEPPED WASHER 03 Price: Call Us
24 59032065100 GASKET F. OUTPUT CYLINDER This part replaces 59032065000. Price: Call Us
26 59032004300 DRIVING SLEEVE D=8, L=33 06 Price: Call Us
27 0993012000 CIRCLIP DIN7993-RW12 Price: Call Us
28 54637098200 AXIAL WASHER AS1226 12X26X1 Price: Call Us
29 54637097200 AXIAL NEEDLE BEARING AXK 1226 Price: Call Us
30 50332154051 PRESSURE PIECE CPL. This part replaces 50332054051. Price: Call Us
31 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. Price: Call Us
32 56532018000 LOCK WASHER Price: Call Us
33 59032062000 HOLLOW SCREW + COPPER GASKET Price: Call Us
