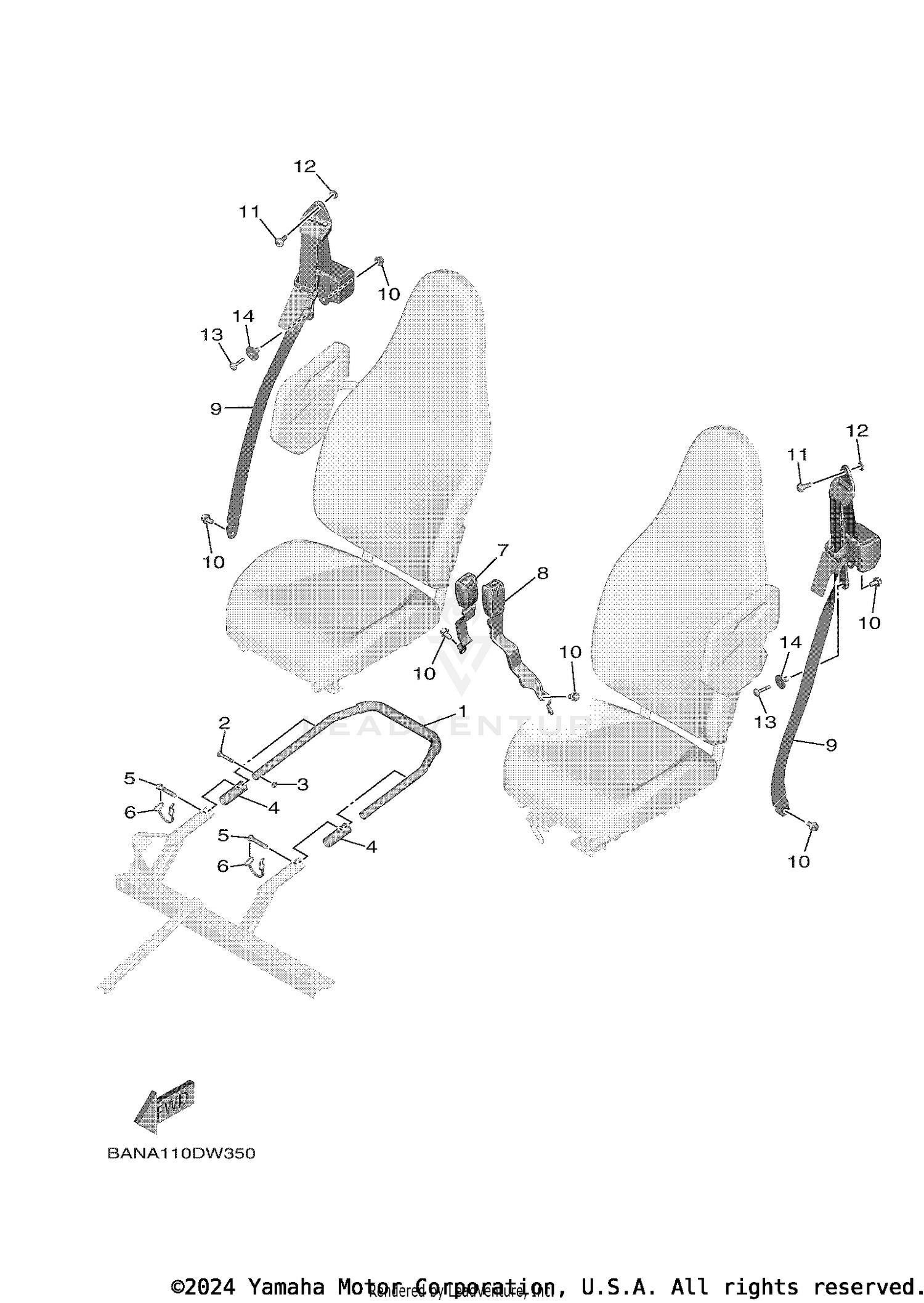

SEAT 2
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2MB-F470J-00-00 | ASSIST GRIP ASSY., 1 Price: $106.99 |
| 2 | 90101-06824-00 | BOLT Price: $1.60 |
| 3 | 95617-06100-00 | NUT, U This part replaces 95612-06100-00. Price: $2.90 |
| 4 | 1XD-F467K-00-00 | BUSH, CAP Price: $2.40 |
| 5 | 1XD-F5926-00-00 | BOLT Price: $2.90 |
| 6 | 1XD-F311F-00-00 | SNAP, PIN Price: $8.49 |
| 7 | B4J-F470R-01-00 | FR. BELT RECEIVER ASSY This part replaces B4J-F470R-00-00. Price: $53.99 |
| 8 | B4J-F470R-12-00 | FR. BELT RECEIVER This part replaces B4J-F470R-11-00. Price: $118.99 |
| 9 | B4J-F470L-02-00 | FR. SEAT BELT ASSY This part replaces B4J-F470L-01-00. Price: $184.99 |
| 10 | 95D32-12020-00 | BOLT, FLANGE DEEP RE Price: $2.50 |
| 11 | 90111-11800-00 | BOLT,HEX. SOCKET B Price: $3.00 |
| 12 | 90201-12593-00 | WASHER, PLATE Price: $10.49 |
| 13 | 90111-06142-00 | BOLT,HEX. SOCKET BUT Price: $9.65 |
