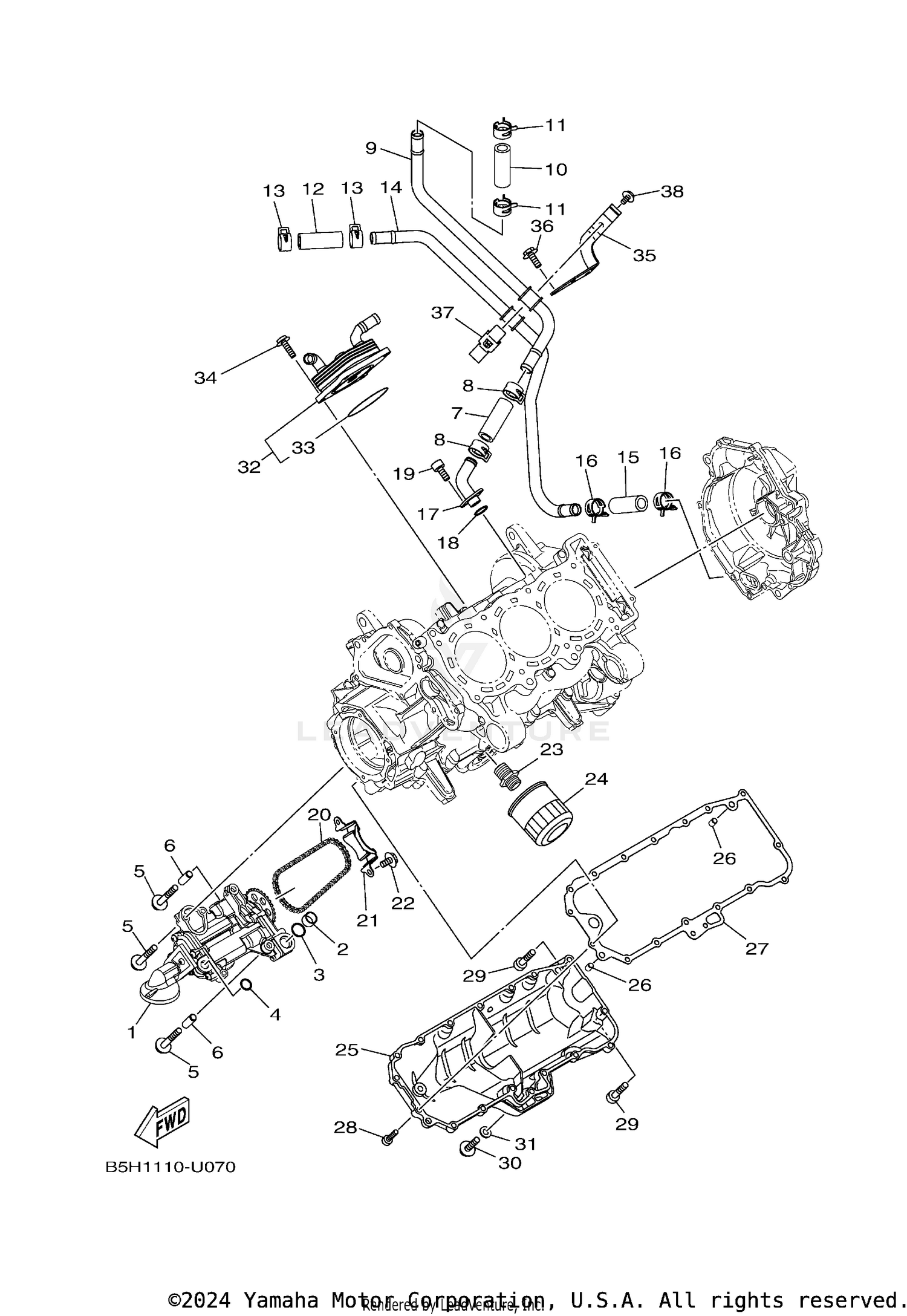

| Ref | Part Number | Description |
|---|
| 1 |
8GL-13300-00-00 |
OIL PUMP ASSY This part replaces 8GL-13300-01-00. Price: $618.99 |
| 2 |
8ES-13284-00-00 |
PIPE Price: $5.49 |
| 3 |
93210-18322-00 |
O-RING Price: $5.60 |
| 4 |
93210-14579-00 |
O-RING Price: $7.49 |
| 5 |
95817-06040-00 |
BOLT, FLANGE This part replaces 95812-06040-00. Price: $6.49 |
| 6 |
91808-22019-00 |
PIN, DOWEL Price: $10.49 |
| 7 |
2HC-E3464-00-00 |
HOSE, OIL 1 Price: $22.99 |
| 8 |
90467-22097-00 |
CLIP Price: $10.49 |
| 9 |
2HC-E3416-00-00 |
PIPE, OIL 1 Price: $18.99 |
| 10 |
2HC-E3464-00-00 |
HOSE, OIL 1 Price: $22.99 |
| 11 |
90467-22097-00 |
CLIP Price: $10.49 |
| 12 |
2HC-E3464-00-00 |
HOSE, OIL 1 Price: $22.99 |
| 13 |
90467-22097-00 |
CLIP Price: $10.49 |
| 14 |
2HC-E3418-00-00 |
PIPE, OIL 2 Price: $22.99 |
| 15 |
2HC-E3464-00-00 |
HOSE, OIL 1 Price: $22.99 |
| 16 |
90467-22097-00 |
CLIP Price: $10.49 |
| 17 |
8ES-13115-00-00 |
CONNECTOR, SUCTION PIPE Price: $47.99 |
| 18 |
93210-16629-00 |
O-RING Price: $8.49 |
| 19 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 20 |
94580-25064-00 |
CHAIN (DID25 64LE) Price: $12.49 |
| 21 |
8ES-13898-01-00 |
HOLDER Price: $32.99 |
| 22 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 23 |
90401-20008-00 |
BOLT, UNION Price: $25.99 |
| 24 |
5GH-13440-90-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5GH-13440-80-00. Price: $16.49 |
| 25 |
2HC-13417-00-00 |
COVER, STRAINER Price: $172.99 |
| 26 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 27 |
2HC-13414-00-00 |
GASKET, STRAINER COVER Price: $23.99 |
| 28 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 29 |
91317-06035-00 |
BOLT, HEX. SOCKET HEAD Price: $3.80 |
| 30 |
90109-06031-00 |
BOLT Price: $2.85 |
| 31 |
90430-06166-00 |
GASKET This part replaces 90430-06192-00. Price: $4.05 |
| 32 |
2HC-13470-00-00 |
OIL COOLER ASSY Price: $139.99 |
| 33 |
2HC-13473-00-00 |
O-RING Price: $8.49 |
| 34 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06164-00. Price: $11.49 |
| 35 |
2HC-E3487-00-00 |
GUIDE, OIL HOSE Price: $8.49 |
| 36 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 37 |
2HC-E3499-00-00 |
GUIDE, OIL HOSE 2 Price: $3.80 |
