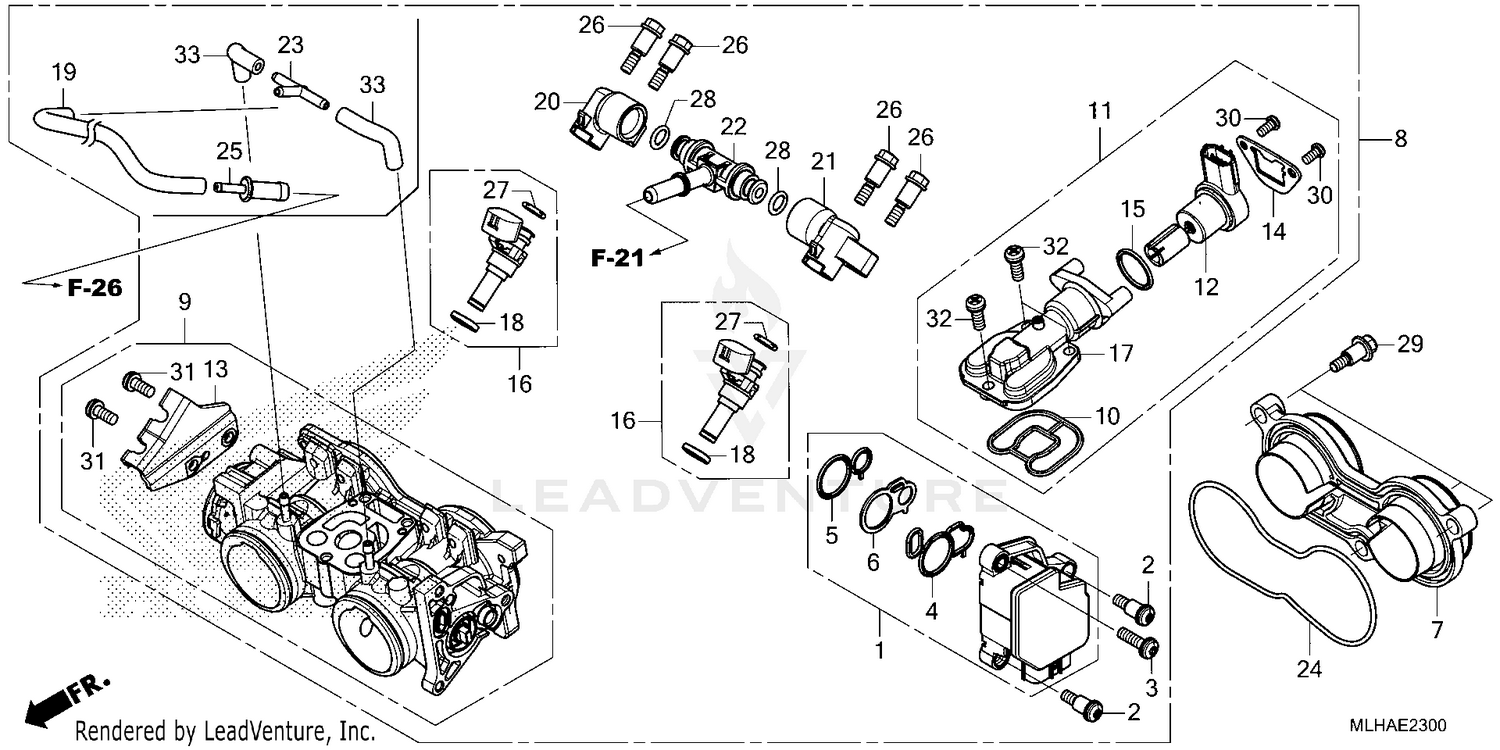

| Ref | Part Number | Description |
|---|
| 1 |
16060-MKG-L01 |
SENSOR SET Price: $94.24 |
| 2 |
16081-KPH-701 |
SCREW, TORX (5X8.7) Price: $3.80 |
| 3 |
16082-KPH-701 |
SCREW, TORX (5X17) Price: $6.02 |
| 4 |
16083-MGZ-D01 |
O-RING, SENSOR Price: $2.98 |
| 5 |
16084-MGZ-D01 |
O-RING, SENSOR Price: $2.98 |
| 6 |
16085-MGZ-D01 |
PLATE Price: $2.76 |
| 7 |
16188-MKG-A00 |
PLATE, FUNNEL SETTING Price: $11.89 |
| 8 |
16400-MLH-A41 |
BODY ASSY. (GQB1C A) Price: $536.33 |
| 9 |
16410-MLH-A41 |
BODY SET Price: $304.65 |
| 10 |
16428-MGZ-D01 |
O-RING, AIR INJECTION CONTROL VALVE Price: $27.91 |
| 11 |
16430-MJW-J01 |
VALVE SET, IDLE AIR CONTROL Price: $261.67 |
| 12 |
16431-MJP-G51 |
MOTOR ASSY. Price: $82.98 |
| 13 |
16432-MGZ-D01 |
STAY, WIRE Price: $44.45 |
| 14 |
16433-MEW-921 |
PLATE, IDLE AIR CONTROL VALVE Price: $11.82 |
| 15 |
16435-MFJ-D01 |
O-RING (17.8X1.9) Price: $3.47 |
| 16 |
16450-MLH-D41 |
INJECTOR ASSY., FUEL (NOT AVAILABLE) Price: $46.78 |
| 17 |
16451-MGZ-D01 |
BODY, IDLE AIR CONTROL VALVE Price: $198.78 |
| 18 |
16472-MLA-BA1 |
GROMMET Price: $9.42 |
| 20 |
16610-MLA-BA1 |
PIPE, FUEL Price: $25.53 |
| 21 |
16620-MLA-BA1 |
PIPE, FUEL Price: $25.53 |
| 22 |
16630-MFJ-D00 |
T-JOINT, FUEL Price: $26.82 |
| 24 |
17215-MGZ-D00 |
SEAL, THROTTLE BODY Price: $2.04 |
| 26 |
90021-MGZ-D02 |
BOLT, SHOULDER Price: $3.31 |
| 27 |
91301-MKT-D71 |
O-RING Price: $2.29 |
| 28 |
91301-PLC-000 |
O-RING (7.47X3.6) Price: $3.90 |
| 29 |
91508-MM5-000 |
SCREW, PAN (5MM) Price: $5.13 |
| 30 |
93500-04008-0H |
SCREW, PAN (4X8) Price: $0.95 |
| 31 |
93892-05012-08 |
SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
| 32 |
93892-05014-08 |
SCREW-WASHER (5X14) Price: $1.15 |
