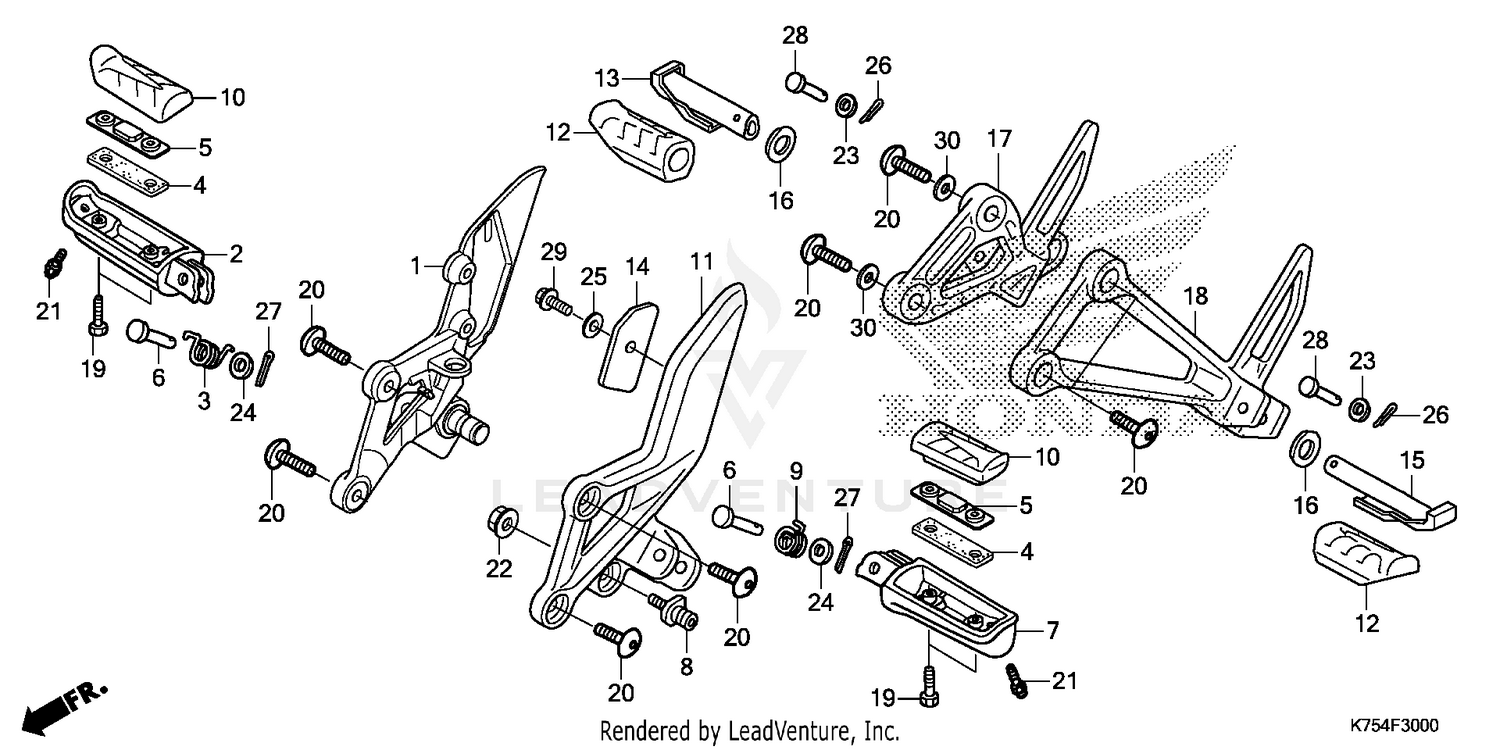

| Ref | Part Number | Description |
|---|
| 1 |
50600-KYJ-900 |
HOLDER, R. STEP Price: $73.44 |
| 2 |
50612-KYJ-305 |
ARM, R. STEP (COO) Price: $31.38 |
| 3 |
50617-445-840 |
SPRING, R. STEP RETURN (L. SIDE) Price: $6.84 |
| 4 |
50618-MBG-D00 |
RUBBER, STEP (LOWER) Price: $3.62 |
| 5 |
50619-K33-D00 |
PLATE, STEP SETTING Price: $4.91 |
| 6 |
50639-ML0-010 |
PIN, STEP BAR Price: $6.36 |
| 7 |
50642-KYJ-305 |
ARM, L. STEP (COO) Price: $31.38 |
| 8 |
50643-KYJ-900 |
PIVOT, CHANGE PEDAL Price: $13.95 |
| 9 |
50644-445-840 |
SPRING, L. STEP RETURN (R. SIDE) Price: $6.84 |
| 10 |
50661-KYJ-305 |
RUBBER, MAIN STEP (COO) Price: $16.73 |
| 11 |
50700-KYJ-900 |
HOLDER, L. STEP Price: $74.91 |
| 12 |
50710-KYJ-305 |
RUBBER, PILLION STEP (COO) Price: $14.42 |
| 13 |
50711-KYJ-305 |
BAR, R. PILLION STEP (COO) This part replaces 50711-KET-600. Price: $18.15 |
| 14 |
50711-KYJ-900 |
WEIGHT, STEP HOLDER Price: $3.84 |
| 15 |
50712-KYJ-305 |
BAR, L. PILLION STEP (COO) This part replaces 50712-KET-600. Price: $17.82 |
| 16 |
50714-KBA-930 |
PLATE, PILLION STEP SIDE Price: $1.69 |
| 17 |
50715-KYJ-900 |
HOLDER, R. PILLION STEP Price: $51.04 |
| 18 |
50725-KYJ-900 |
HOLDER, L. PILLION STEP Price: $51.04 |
| 19 |
90115-MV9-000 |
BOLT, MAIN STEP RUBBER SETTING Price: $4.62 |
| 20 |
90127-KYJ-900 |
BOLT, SOCKET (8X22) Price: $1.89 |
| 21 |
92501-08008-0A |
BOLT, CAP (8X8) Price: $1.29 |
| 22 |
94050-08080 |
NUT, FLANGE (8MM) Price: $0.98 |
| 23 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 24 |
94102-08000 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 25 |
94103-06700 |
WASHER, PLAIN (6MM) Price: $0.75 |
| 26 |
94201-16250 |
PIN, COTTER (1.6X25) This part replaces 94201-16150. Price: $1.08 |
| 27 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 28 |
95015-82000 |
PIN B, PILLION FOOTPEG Price: $2.75 |
| 29 |
95701-06010-07 |
BOLT, FLANGE (6X10) Price: $1.70 |
