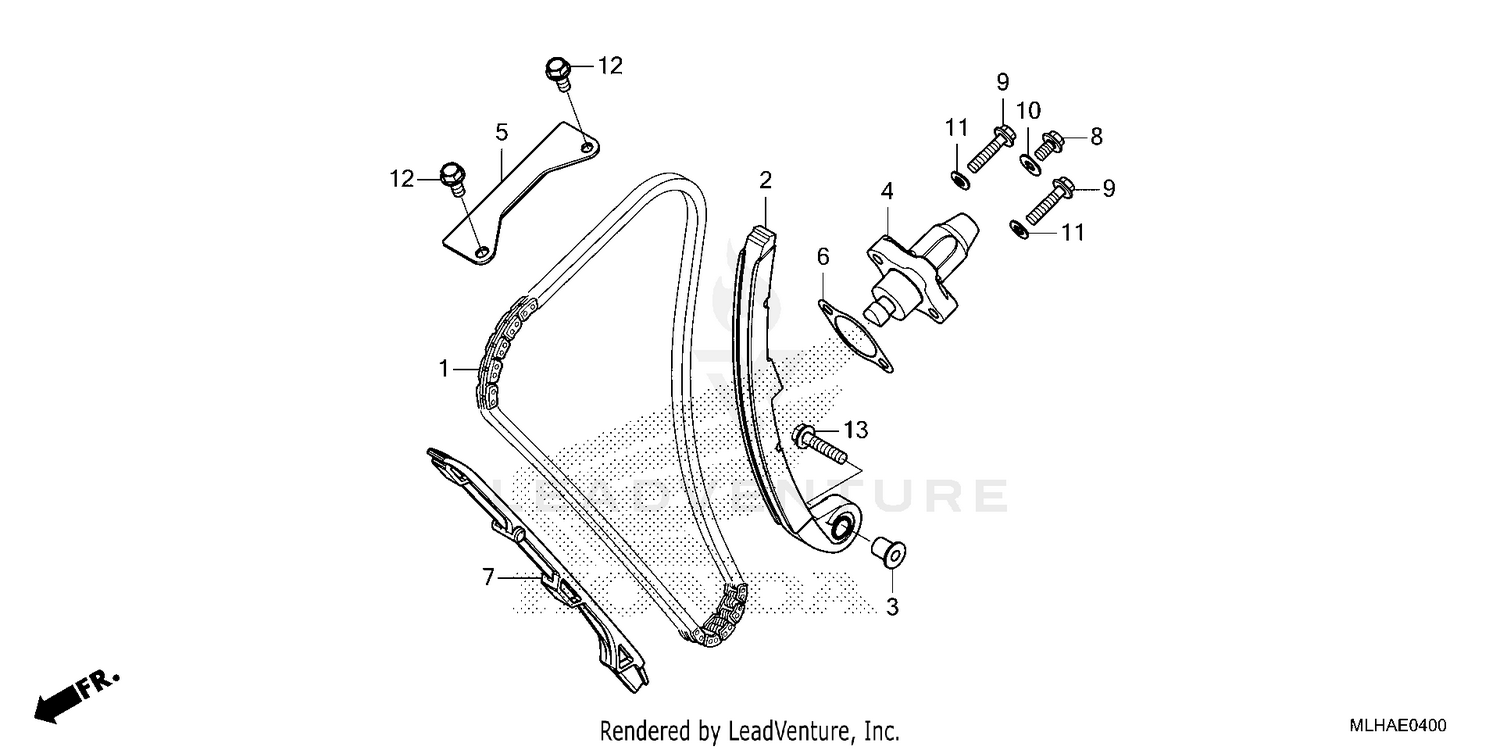

| Ref | Part Number | Description |
|---|
| 1 |
14401-MGZ-J01 |
CHAIN, CAM (130L) (SCH-0409 SV) (DAIDO) Price: $105.85 |
| 2 |
14510-MGZ-J01 |
TENSIONER, CAM CHAIN (NOK) Price: $79.73 |
| 3 |
14517-MGZ-J00 |
COLLAR, TENSIONER Price: $1.53 |
| 4 |
14520-MGZ-J01 |
LIFTER ASSY., TENSIONER (NHK) Price: $125.73 |
| 5 |
14546-KYJ-900 |
GUIDE B, CAM CHAIN Price: $8.55 |
| 6 |
14560-MGZ-J01 |
GASKET, TENSIONER HOLE Price: $5.25 |
| 7 |
14611-MGZ-J00 |
GUIDE A, CAM CHAIN Price: $12.15 |
| 8 |
90025-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.45 |
| 9 |
90025-GHB-680 |
BOLT, FLANGE (6X25) Price: $1.16 |
| 10 |
90442-397-000 |
WASHER, SEALING (6MM) Price: $2.58 |
| 11 |
90463-MEE-000 |
WASHER, SEALING (6MM) Price: $2.02 |
| 12 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
