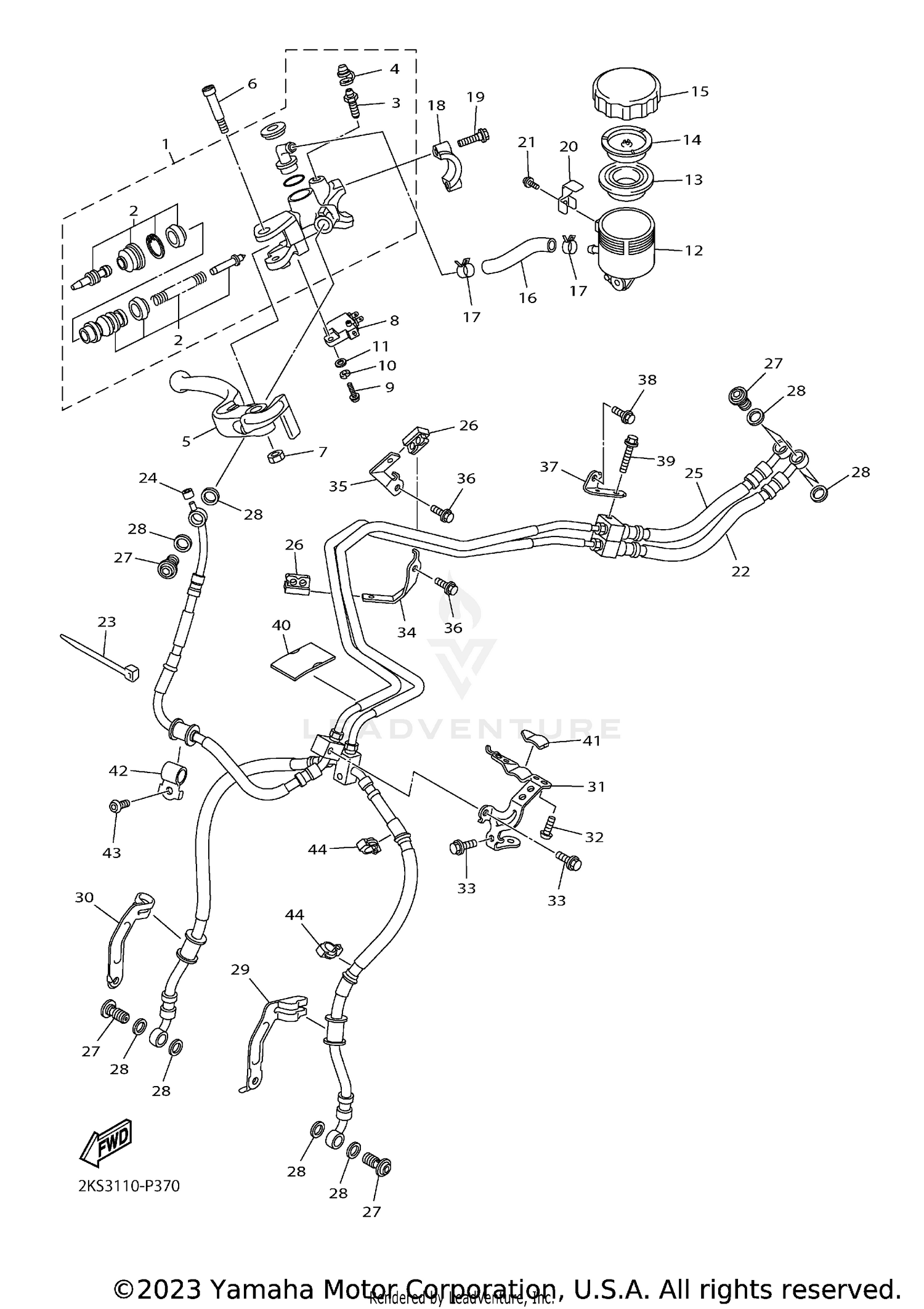

| Ref | Part Number | Description |
|---|
| 1 |
2CR-2580A-00-00 |
MASTER CYLINDER SUB ASSY 2 Price: $191.99 |
| 2 |
2CR-25807-00-00 |
CYLINDER KIT, MASTER Price: $61.99 |
| 3 |
36Y-W0048-00-00 |
BLEED SCREW KIT This part replaces 1UY-25824-51-00. Price: $10.99 |
| 4 |
36Y-W0048-00-00 |
BLEED SCREW KIT This part replaces 1UY-25825-51-00. Price: $10.99 |
| 5 |
2CR-83922-00-00 |
LEVER 2 Price: $96.99 |
| 6 |
2CR-2589F-00-00 |
BOLT, LEVER Price: $7.49 |
| 7 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 8 |
2CR-83980-02-00 |
FRONT STOP SWITCH AS This part replaces 2CR-83980-00-00. Price: $38.99 |
| 9 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98502-04012-00. Price: $4.20 |
| 10 |
92990-04100-00 |
WASHER, SPRING This part replaces 92902-04100-00. Price: $0.95 |
| 11 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 12 |
2CR-25894-00-00 |
TANK, RESERVOIR Price: $19.99 |
| 13 |
3FV-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $30.99 |
| 14 |
2CR-25855-00-00 |
BUSH, DIAPHRAGM Price: $7.49 |
| 15 |
3GM-25852-50-00 |
CAP, RESERVOIR Price: $32.99 |
| 16 |
2CR-25895-00-00 |
HOSE, RESERVOIR Price: $12.99 |
| 17 |
90467-12085-00 |
CLIP Price: $11.49 |
| 18 |
2CR-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $8.49 |
| 19 |
5EB-26332-00-00 |
BOLT Price: $8.49 |
| 20 |
2CR-2589G-00-00 |
HOLDER Price: $16.49 |
| 21 |
3GM-2589H-00-00 |
SCREW Price: $8.49 |
| 22 |
2CR-2584A-01-00 |
BRAKE HOSE ASSY Price: $267.99 |
| 23 |
3MA-82591-00-00 |
CLAMP Price: $10.99 |
| 24 |
2CR-26259-01-00 |
COLLAR Price: $7.99 |
| 25 |
2CR-2584B-00-00 |
HOSE, BRAKE Price: $285.99 |
| 26 |
90464-07014-00 |
CLAMP Price: $4.00 |
| 27 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 28 |
90430-10005-00 |
GASKET Price: $9.49 |
| 29 |
2CR-25875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $14.49 |
| 30 |
2CR-25876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $12.99 |
| 31 |
2CR-2612E-00-00 |
BRACKET Price: $18.99 |
| 32 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 33 |
95027-06014-00 |
BOLT, FLANGE Price: $0.95 |
| 34 |
2CR-2612K-00-00 |
BRACKET 2 Price: $8.49 |
| 35 |
2CR-2612L-00-00 |
BRACKET 3 Price: $5.99 |
| 36 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 37 |
2CR-2612M-00-00 |
BRACKET 4 Price: $5.49 |
| 38 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 39 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 40 |
5H0-8235Y-M0-00 |
DAMPER This part replaces 3YL-12232-00-00. Price: $7.49 |
| 41 |
2CR-2622F-00-00 |
DAMPER, LOCATING 1 Price: $1.60 |
| 42 |
90461-08031-00 |
CLAMP This part replaces 90461-10132-00. Price: $9.49 |
| 43 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
