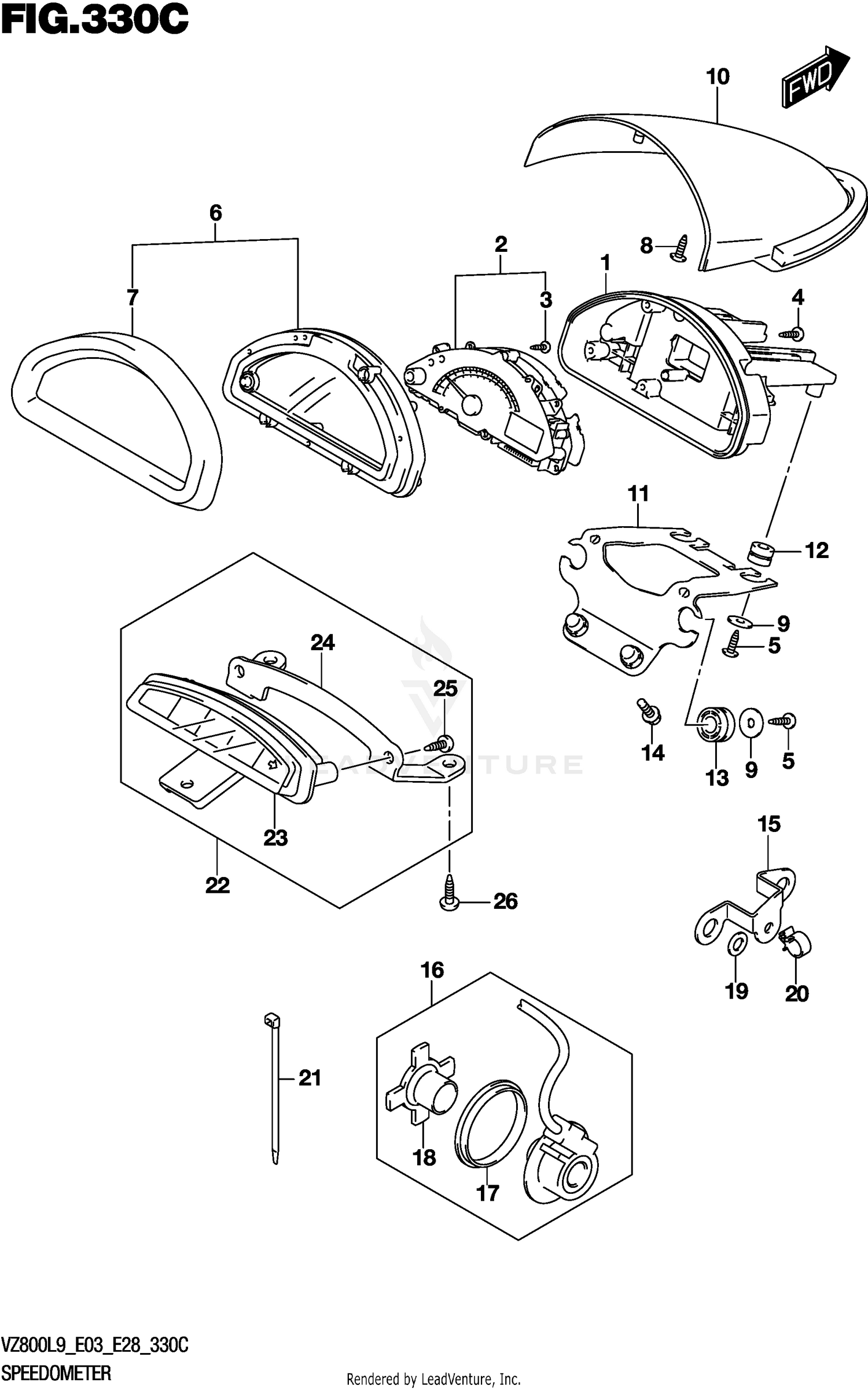

SPEEDOMETER (VZ800L9 E33)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 34111-40H00 | COVER Price: $127.70 |
| 2 | 34120-39GD0 | SPEEDOMETER Price: $658.94 |
| 3 | 34149-03G00 | SCREW (3X14) Price: $4.72 |
| 4 | 34149-03G00 | SCREW (3X14) Price: $4.72 |
| 5 | 34149-40H00 | SCREW (5X16) Price: $3.48 |
| 6 | 34150-40H20 | UPPER CASE Price: $179.66 |
| 8 | 34184-12B00 | SCREW Price: $2.65 |
| 9 | 34189-40H00 | WASHER (5.2X20X1.0) Price: $2.59 |
| 10 | 34257-39GH0 | COVER ASSY Price: $121.28 |
| 11 | 34952-39GC0 | BRACKET Price: $73.93 |
| 12 | 34955-39G00 | DAMPER NO.2 Price: $10.11 |
| 13 | 34955-39G10 | DAMPER NO.1 Price: $10.11 |
| 14 | 01547-0612A | BOLT Price: $2.45 |
| 15 | 34938-39G10 | GUIDE Price: $5.28 |
| 16 | 34990-39G00 | SENSOR Price: $277.12 |
| 19 | 09160-10121 | WASHER (10.5X18X1) Price: $2.48 |
| 20 | 09403-06410 | CLAMP Price: $2.68 |
| 21 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 22 | 36380-39G11 | BOX ASSY Price: $237.48 |
