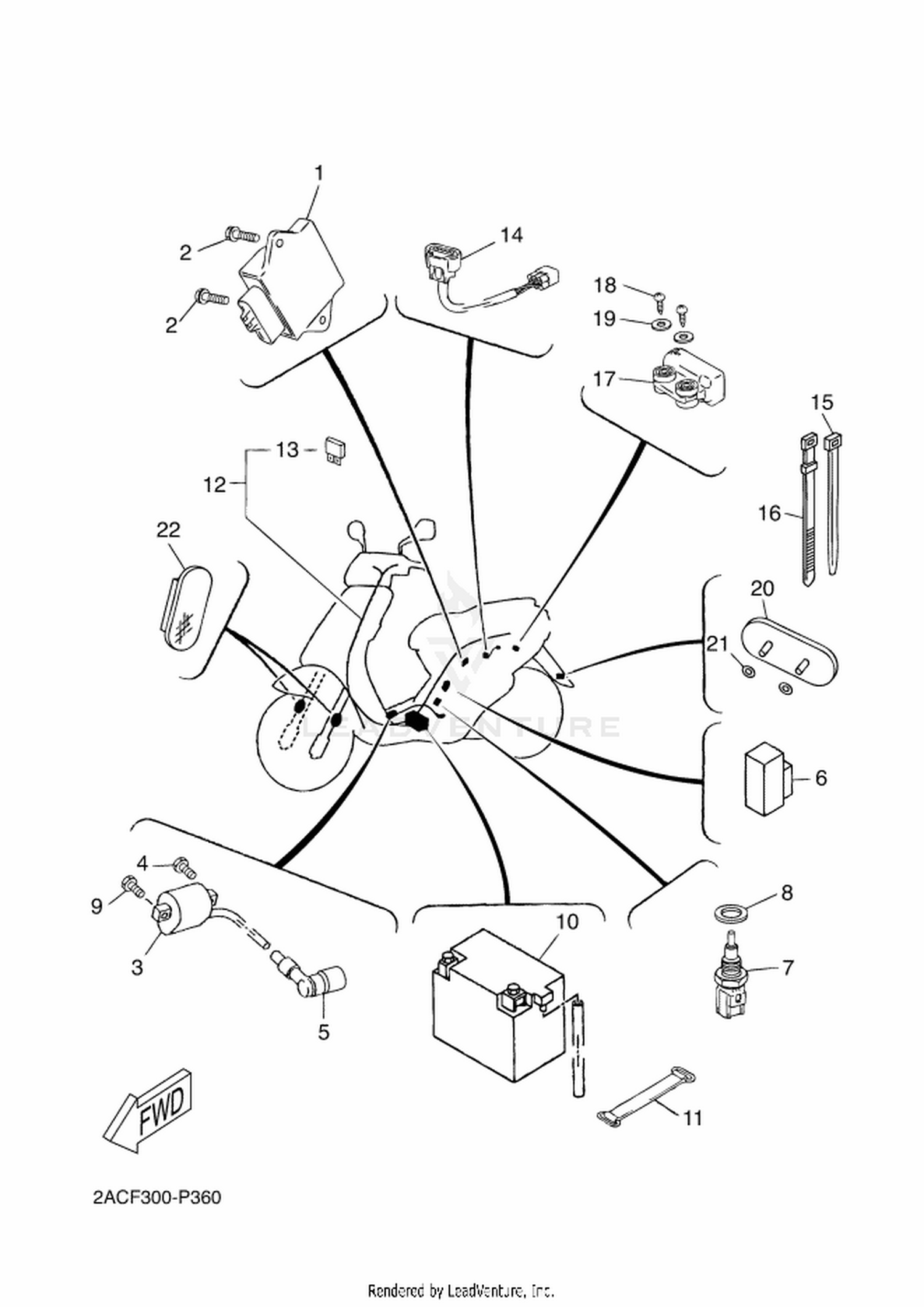

36 ELECTRICAL 2
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1GB-H591A-00 | ENGINE CONTROL UNIT ASSY Price: Call Us |
| 2 | 90119-06X02 | BOLT, WITH WASHER Price: Call Us |
| 3 | 1C0-82310-00 | IGNITION COIL ASSY Price: Call Us |
| 4 | 9700L-06016 | BOLT Price: Call Us |
| 5 | 4CW-H2370-01 | PLUG CAP ASSY Price: Call Us |
| 6 | 5TN-H1940-00 | STARTER RELAY ASSY Price: Call Us |
| 7 | 5YP-85790-00 | THERMOSENSOR ASSY Price: Call Us |
| 8 | 90430-12X01 | GASKET Price: Call Us |
| 9 | 90153-06034 | SCREW, HEXAGON Price: Call Us |
| 10 | 5C3-H2110-10 | BATTERY ASSY (GS CB5L-B) Price: Call Us |
| 11 | 1TK-H2131-00 | BAND, BATTERY Price: Call Us |
| 12 | 2AC-H2590-40 | WIRE HARNESS ASSY Price: Call Us |
| 14 | 5C3-H2509-00 | WIRE, SUB LEAD Price: Call Us |
| 15 | 90464-50X05 | CLAMP Price: Call Us |
| 17 | 5PS-82576-01 | LEAN ANGLE SENSOR Price: Call Us |
| 18 | 9770L-40130 | SCREW, TAPPING Price: Call Us |
| 19 | 90201-047A2 | WASHER, PLATE Price: Call Us |
| 20 | 5MF-H5130-00 | REAR REFLECTOR ASSY Price: Call Us |
| 21 | 90183-04X00 | NUT, SPRING Price: Call Us |
