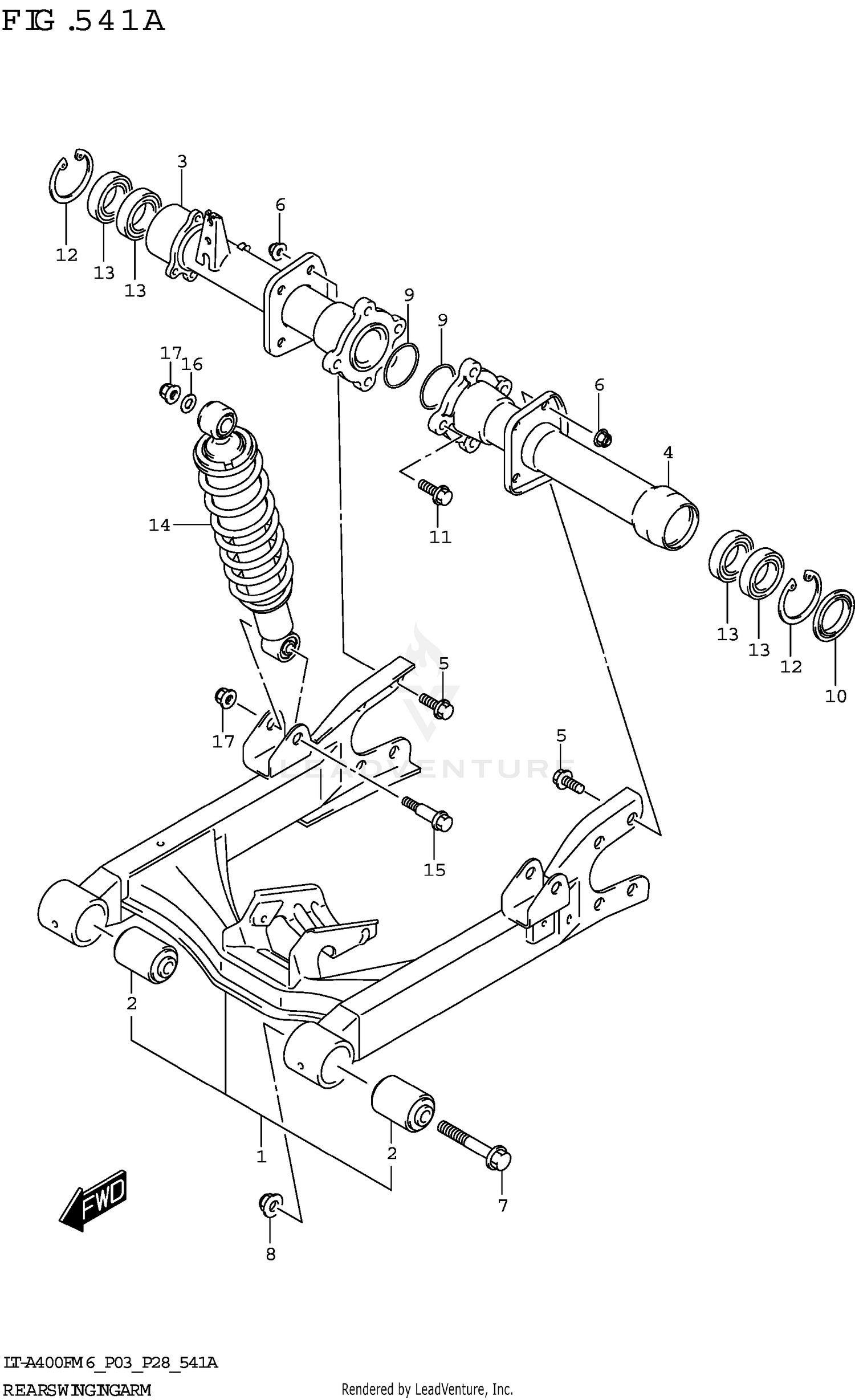

REAR SWINGINGARM (LT-A400F)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 61101-27850 | SWINGINGARM SET,REAR Price: $305.84 |
| 3 | 61300-27H10 | HOUSING,RR AXLE,R Price: $465.78 |
| 4 | 61400-27H00 | HOUSING, REAR AXLE LH This part replaces 61400-27H10. Price: $250.04 |
| 5 | 09103-10216 | BOLT (10X20) Price: $5.16 |
| 6 | 09159-10115 | NUT (M10) Price: $4.33 |
| 7 | 09113-12002 | BOLT (12X80) Price: $18.53 |
| 8 | 09159-12054 | NUT Price: $9.18 |
| 9 | 09280-70005 | O-RING (D:3.1,ID:69.4) Price: $7.59 |
| 10 | 09283-38022 | OIL SEAL (38X55X9) Price: $15.85 |
| 11 | 09103-10421 | BOLT (10X30) Price: $4.60 |
| 12 | 08331-41559 | CIRCLIP Price: $4.57 |
| 13 | 08123-60067 | BEARING Price: $35.47 |
| 14 | 62100-27H10 | ABSORBER ASSY,REAR SHOCK Price: Call Us |
| 15 | 09103-10126 | BOLT (10X48) Price: $5.49 |
| 16 | 09160-10501 | WASHER (10.5X30X2.3) Price: $2.72 |
