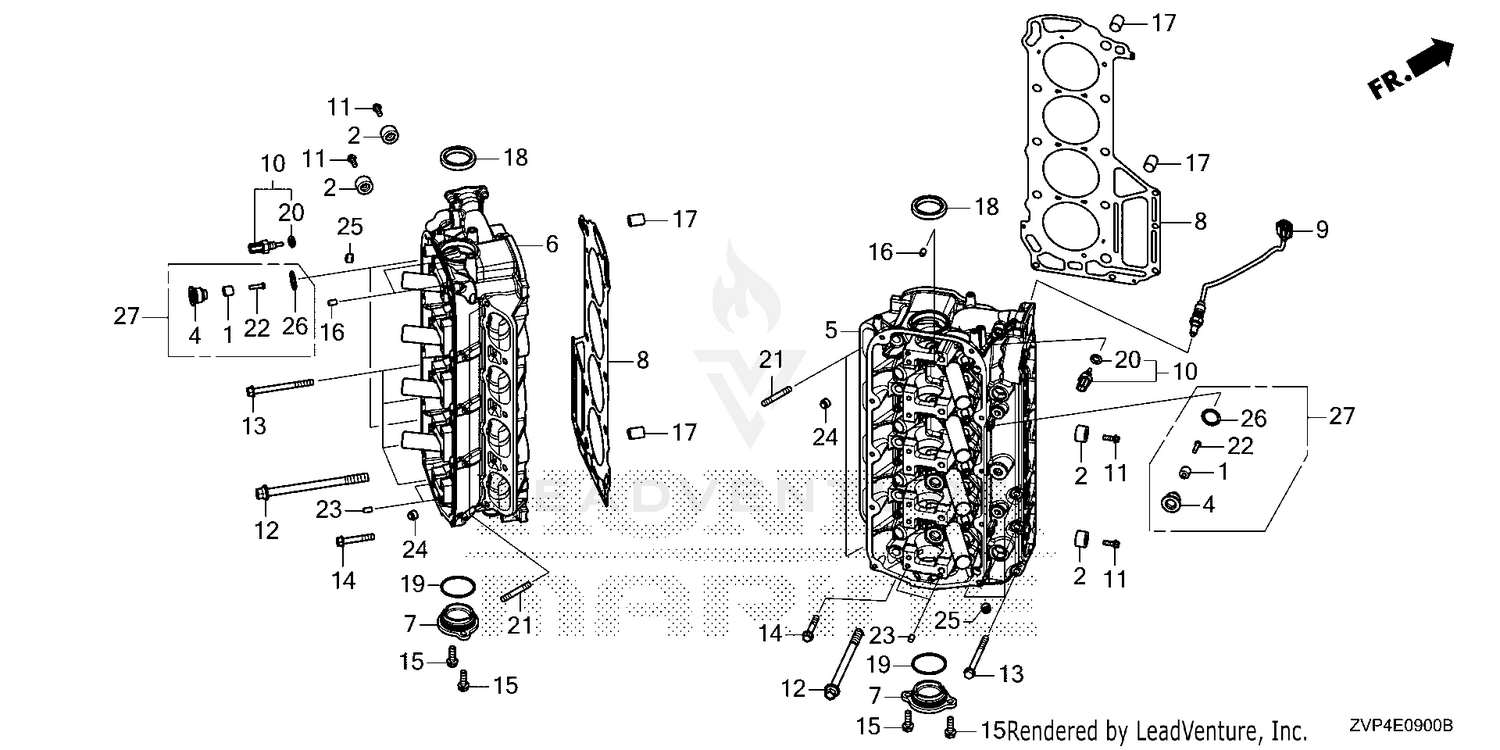

| Ref | Part Number | Description |
|---|
| 1 |
12155-ZV4-A01 |
METAL, ANODE Price: $14.94 |
| 2 |
12155-ZV5-010 |
METAL, ANODE Price: $13.06 |
| 4 |
12164-ZY3-000 |
BOLT, SEALING (22MM) Price: $20.70 |
| 5 |
12210-ZVP-000 |
HEAD COMP, CYLN R Price: $1,575.39 |
| 6 |
12220-ZVP-000 |
HEAD COMP, CYLN L Price: $1,575.39 |
| 7 |
12241-ZY3-000 |
COVER, L. CAMSHAFT THRUST Price: $28.66 |
| 8 |
12251-ZVP-003 |
GASKET COMP Price: $87.62 |
| 9 |
35655-ZVP-003 |
SENSOR, OXYGEN Price: $288.98 |
| 10 |
35673-ZY3-003 |
SENSOR ASSY., WATER TEMPERATURE Price: $30.98 |
| 11 |
90004-ZX2-000 |
BOLT, FLANGE (6X18) Price: $2.58 |
| 12 |
90005-PT0-003 |
BOLT-WASHER (12X163) Price: $21.64 |
| 13 |
90011-ZY9-M01 |
BOLT, FLANGE (8X95) Price: $3.72 |
| 14 |
90020-ZVL-010 |
BOLT, FLANGE (8X50) Price: $1.70 |
| 15 |
90151-ZZ0-M01 |
BOLT, FLANGE (8X25) Price: $2.28 |
| 16 |
90701-P8A-A00 |
PIN, DOWEL (6X10) Price: $6.34 |
| 17 |
90705-PT0-000 |
PIN, DOWEL (16X22) Price: $5.22 |
| 18 |
91213-RKG-003 |
OIL SEAL (39X53X8) (NOK) Price: $16.08 |
| 19 |
91301-P8A-A00 |
O-RING (48.5X2.4) Price: $2.34 |
| 20 |
91307-PNA-003 |
O-RING (9.5X1.9) Price: $2.76 |
| 21 |
92900-08040-0B |
BOLT, STUD (8X40) Price: $3.08 |
| 22 |
93500-05020-4J |
SCREW, PAN (5X20) Price: $1.18 |
| 23 |
94302-06100 |
PIN B, DOWEL (6X10) (Honda Code 0145417). Price: $2.82 |
| 24 |
12210-PZ1-004 |
SEE PART DETAILS - PRI; SEAL A, VALVE STEM (NOK) Price: $5.76 |
| 25 |
12211-PZ1-004 |
SEE PART DETAILS - PRI; SEAL B, VALVE STEM (NOK) Price: $5.76 |
| 26 |
12171-ZY3-305 |
WASHER, SEALING (22MM) Price: $3.66 |
