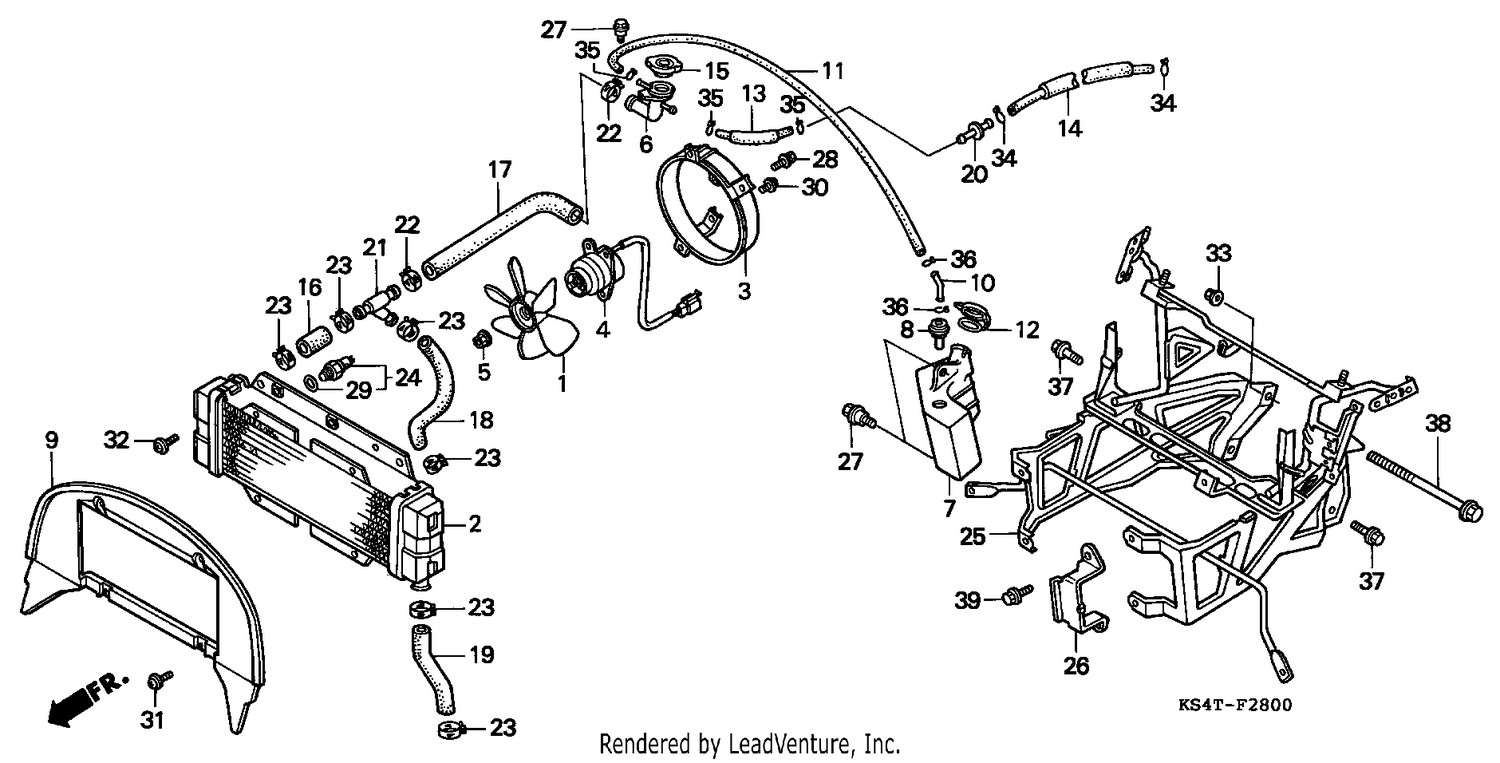

RADIATOR

RADIATOR

Parts (38)

RefPart NumberDescription
1 19009KM3003 FAN COMP., COOLING Price: Call Us
2 19010KS4881 RADIATOR COMP. Price: Call Us
3 19015KS4003 SHROUD COMP. Price: Call Us
4 19030KS4013 MOTOR, COOLING FAN Price: Call Us
5 19036KS4003 NUT, TOOTHED, 3MM Price: Call Us
6 19039KM1004 NECK, FILLER Price: Call Us
7 19101KS4010 TANK, RESERVE Price: Call Us
8 19102KE8000 TUBE, LEVEL Price: Call Us
9 19102KS4000 DUCT, AIR Price: Call Us
10 19103MB9000 JOINT, TUBE Price: Call Us
11 19104KS4000 TUBE COMP., 7.3X530 Price: Call Us
12 19104MB0700 CAP, RESERVE TANK Price: Call Us
13 19107KS4020 TUBE, 7.3X53 Price: Call Us
14 19108KS4010 TUBE COMP. (3.5X1474) Price: Call Us
15 19111KE1003 CAP, RADIATOR FILLER Price: Call Us
16 19122KS4000 HOSE A Price: Call Us
17 19123KS4000 HOSE, FILLER NECK Price: Call Us
18 19124KS4710 HOSE C, WATER Price: Call Us
19 19125KS4000 HOSE D, WATER Price: Call Us
20 19126KM1010 JOINT, TUBE Price: Call Us
21 19126KS4000 JOINT, THREE WAY Price: Call Us
22 19513MF5000 CLAMP, WATER HOSE, 27MM Price: Call Us
23 19514ME9003 CLIP B, HOSE Price: Call Us
24 37760KS4880 SWITCH ASSY., THERMOSTAT Price: Call Us
25 50310KS4660 BRACKET, RADIATOR MOUNTING Price: Call Us
26 50311KS4660 STAY, HORN Price: Call Us
27 90111162000 BOLT, FLANGE, 6MM Price: Call Us
28 90125KM1831 BOLT-WASHER, 5X12 Price: Call Us
29 91307611000 O-RING, 13.5X1.4 Price: Call Us
30 938910400808 SCREW-WASHER, 4X8 Price: Call Us
31 938910501207 SCREW-WASHER, 5X12 Price: Call Us
32 938910601200 SCREW-WASHER, 6X12 Price: Call Us
33 9405006000 NUT, FLANGE, 6MM Price: Call Us
34 9500202070 CLIP, TUBE (B7) Price: Call Us
35 9500202120 CLIP, TUBE (B12) Price: Call Us
36 9500280000 CLIP, TUBE (C12) Price: Call Us
37 957010801600 BOLT, FLANGE, 8X16 Price: Call Us
38 958010614008 BOLT, FLANGE, 6X140 Price: Call Us
