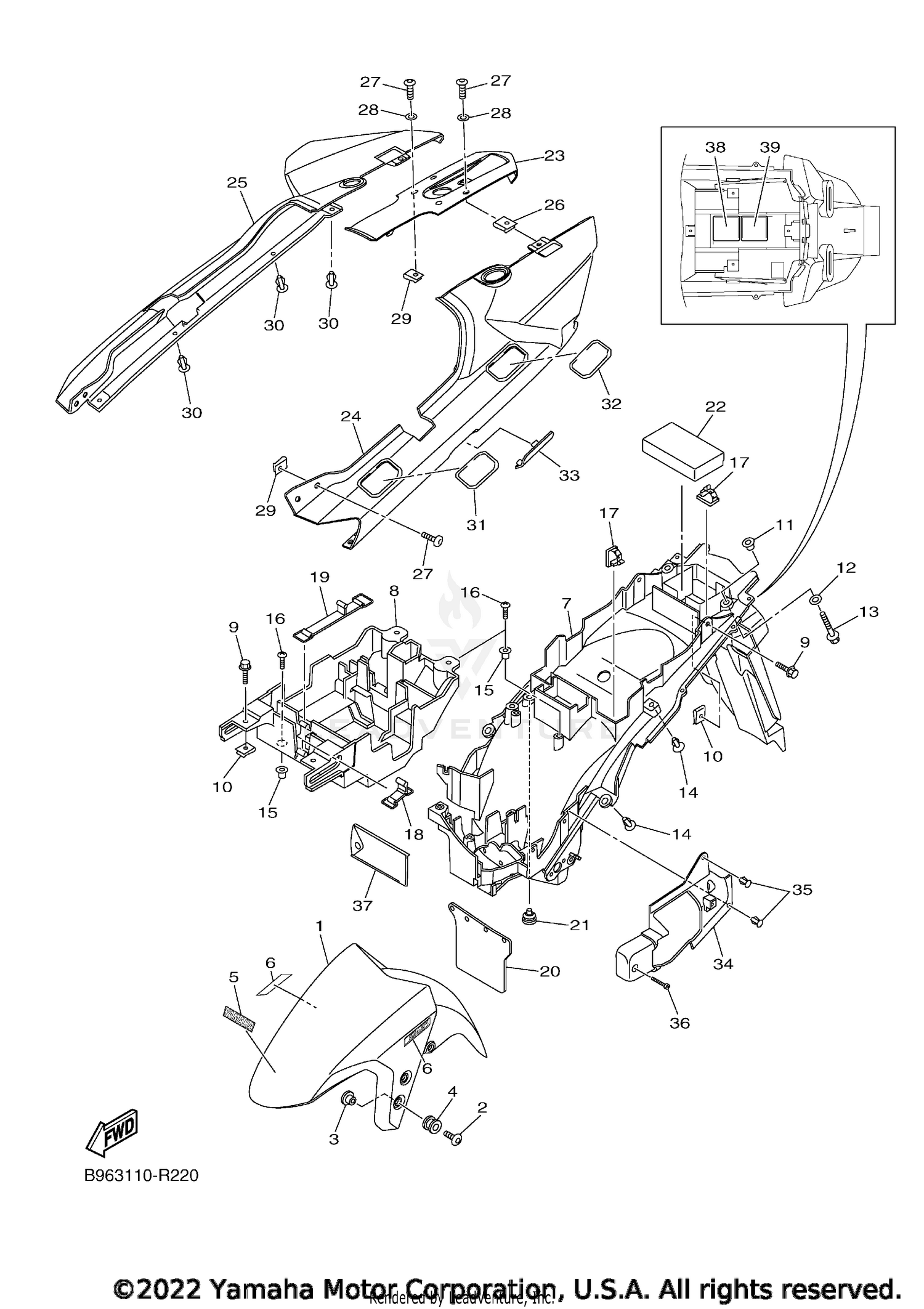

| Ref | Part Number | Description |
|---|
| 2 |
90111-06043-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $5.49 |
| 3 |
90387-06159-00 |
COLLAR This part replaces 90387-065J6-00. Price: $9.49 |
| 4 |
90480-12072-00 |
GROMMET Price: $9.49 |
| 5 |
4B5-2153E-51-00 |
EMBLEM, YAMAHA This part replaces 4B5-2153E-50-00. Price: $2.85 |
| 6 |
2BS-21578-01-00 |
EMBLEM Price: $5.49 |
| 7 |
99999-04541-00 |
REAR FENDER SET Price: $194.99 |
| 8 |
1MD-2160E-00-00 |
BOX Price: $138.99 |
| 9 |
90119-06159-00 |
BOLT, WITH WASHER Price: $9.49 |
| 10 |
90183-060A7-00 |
NUT, SPRING Price: $9.49 |
| 11 |
90387-06231-00 |
COLLAR Price: $5.49 |
| 12 |
90201-07081-00 |
WASHER, PLATE Price: $11.49 |
| 13 |
95817-06040-00 |
BOLT, FLANGE This part replaces 95802-06040-00. Price: $6.49 |
| 14 |
90269-06081-00 |
RIVET Price: $8.49 |
| 15 |
90338-08226-00 |
PLUG Price: $2.35 |
| 16 |
97702-60020-00 |
SCREW, TAPPING Price: $0.40 |
| 17 |
90464-13185-00 |
CLAMP Price: $6.49 |
| 18 |
B88-2811G-00-00 |
BAND Price: $9.49 |
| 19 |
4J2-82131-01-00 |
BAND, BATTERY Price: $32.99 |
| 20 |
5JW-21621-10-00 |
FLAP Price: $25.99 |
| 21 |
90480-10M36-00 |
GROMMET Price: $1.96 |
| 22 |
B95-8252U-00-00 |
COVER Price: $28.99 |
| 26 |
90183-051A0-00 |
NUT, SPRING Price: $4.10 |
| 27 |
90111-05044-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 28 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 29 |
90183-050A0-00 |
NUT, SPRING Price: $6.49 |
| 30 |
90269-06081-00 |
RIVET Price: $8.49 |
| 34 |
1MC-2163A-00-00 |
COVER, REAR FENDER 1 Price: $15.49 |
| 35 |
90269-06081-00 |
RIVET Price: $8.49 |
| 36 |
97780-50125-00 |
SCREW, TAPPING This part replaces 97702-50125-00. Price: $3.10 |
| 37 |
B95-28100-01-00 |
TOOL KIT This part replaces B95-28100-00-00. Price: $9.99 |
