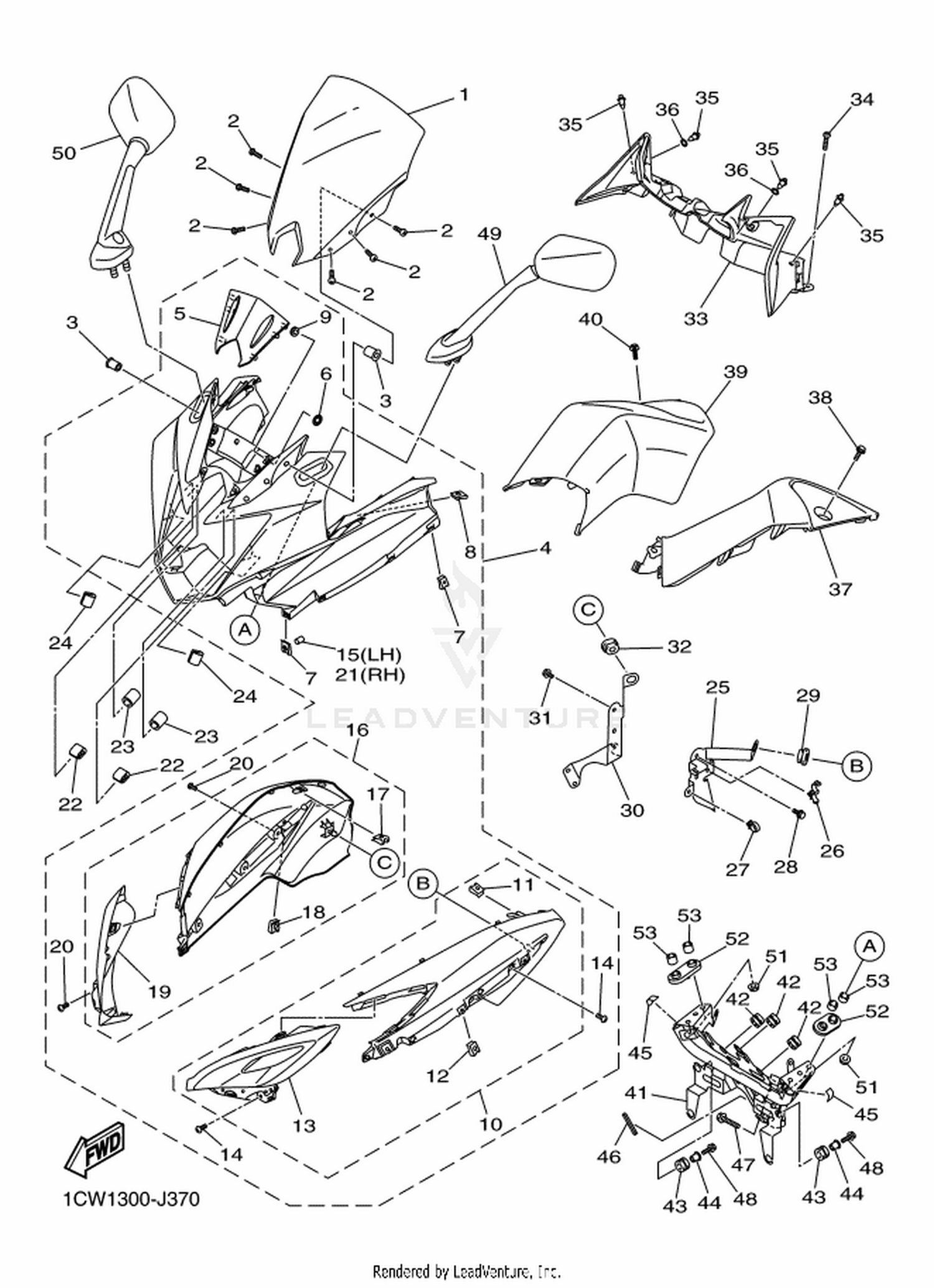

37 COWLING 1

37 COWLING 1

Parts (42)

RefPart NumberDescription
1 36P-28381-00 WINDSHIELD Price: Call Us
2 90150-05023 SCREW, ROUND HEAD Price: Call Us
3 90179-05523 NUT Price: Call Us
6 90183-05M02 NUT, SPRING Price: Call Us
7 90183-05042 NUT, SPRING Price: Call Us
8 90183-05076 NUT, SPRING Price: Call Us
9 5SL-84753-00 DAMPER Price: Call Us
11 90183-05076 NUT, SPRING Price: Call Us
14 97702-50016 SCREW, TAPPING Price: Call Us
17 90183-05076 NUT, SPRING Price: Call Us
20 97702-50016 SCREW, TAPPING Price: Call Us
22 20S-28376-00 TRIM Price: Call Us
23 90445-05003 HOSE Price: Call Us
24 1FK-2171M-00 MOLE, SIDE COVER 2 Price: Call Us
25 36P-2172R-01 BRACKET 5 Price: Call Us
26 90464-16006 CLAMP Price: Call Us
27 90464-15157 CLAMP Price: Call Us
28 95802-06012 BOLT, FLANGE Price: Call Us
29 90480-01558 GROMMET Price: Call Us
30 36P-2172T-01 BRKT 6 Price: Call Us
31 95802-06012 BOLT, FLANGE Price: Call Us
32 90480-01558 GROMMET Price: Call Us
33 36P-2836K-00 PANEL, INNER 1 Price: Call Us
34 90111-05034 BOLT,HEX. SOCKET BUTTON Price: Call Us
35 90269-06008 RIVET Price: Call Us
36 90202-06004 WASHER, PLATE Price: Call Us
37 36P-2836L-00 PANEL, INNER 2 Price: Call Us
38 90111-05034 BOLT,HEX. SOCKET BUTTON Price: Call Us
39 36P-2836M-00 PANEL, INNER 3 Price: Call Us
40 90111-05034 BOLT,HEX. SOCKET BUTTON Price: Call Us
41 36P-28356-01 STAY 1 Price: Call Us
42 3C3-83513-00 DAMPER Price: Call Us
43 90480-14004 GROMMET Price: Call Us
44 90387-07391 COLLAR Price: Call Us
45 36P-2837J-00 DAMPER 5 Price: Call Us
46 2S3-28348-00 MOLE 4 Price: Call Us
47 95822-08035 BOLT, FLANGE Price: Call Us
48 95822-06025 BOLT, FLANGE Price: Call Us
49 36P-26280-00 REAR VIEW MIRROR ASSY (LEFT) Price: Call Us
50 36P-26290-00 REAR VIEW MIRROR ASSY (RIGHT) Price: Call Us
51 95702-06500 NUT, WITH WASHER Price: Call Us
52 3C3-26298-00 PLATE, MIRROR FITTING 1 Price: Call Us
