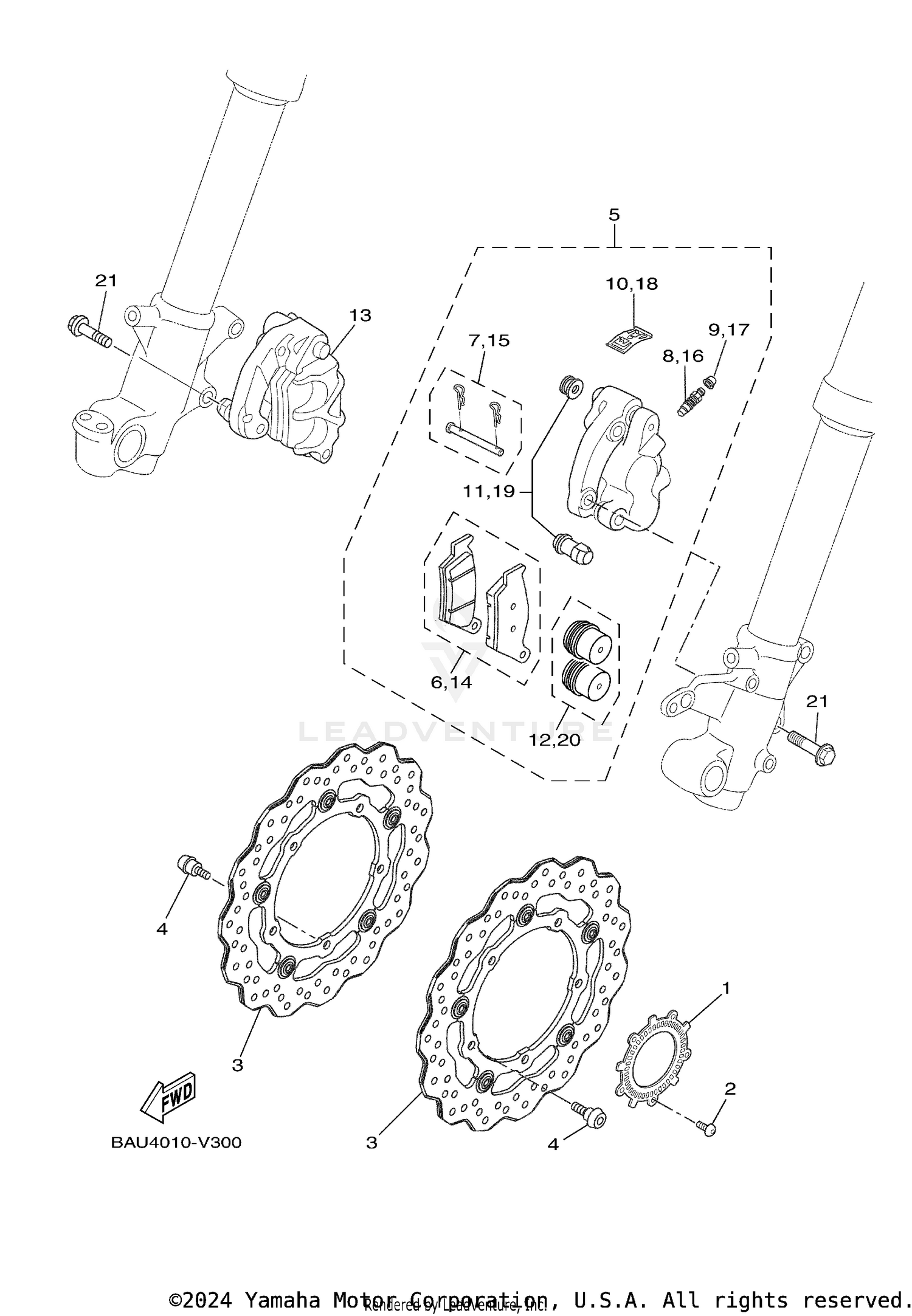

FRONT BRAKE CALIPER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BW3-F517G-00-00 | ROTOR, SENSOR Price: $21.99 |
| 2 | 90149-05030-00 | SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 3 | 1WS-2581T-01-00 | DISK BRAKE ASSY Price: $139.99 |
| 4 | 90109-06329-00 | BOLT This part replaces 90109-06328-00. Price: $2.80 |
| 5 | BW3-F580T-00-00 | CALIPER ASSY (LEFT Price: $287.99 |
| 6 | BW3-F5805-00-00 | BRAKE PAD KIT Price: $66.99 |
| 8 | 56P-F5824-00-00 | SCREW, BLEED Price: $65.99 |
| 12 | BW3-F5802-00-00 | CALIPER PISTON ASSY Price: $75.99 |
| 13 | BW3-F580U-00-00 | CALIPER ASSY (RIGH Price: $287.99 |
| 14 | BW3-F5805-00-00 | BRAKE PAD KIT Price: $66.99 |
| 16 | 56P-F5824-00-00 | SCREW, BLEED Price: $65.99 |
| 20 | BW3-F5802-00-00 | CALIPER PISTON ASSY Price: $75.99 |
