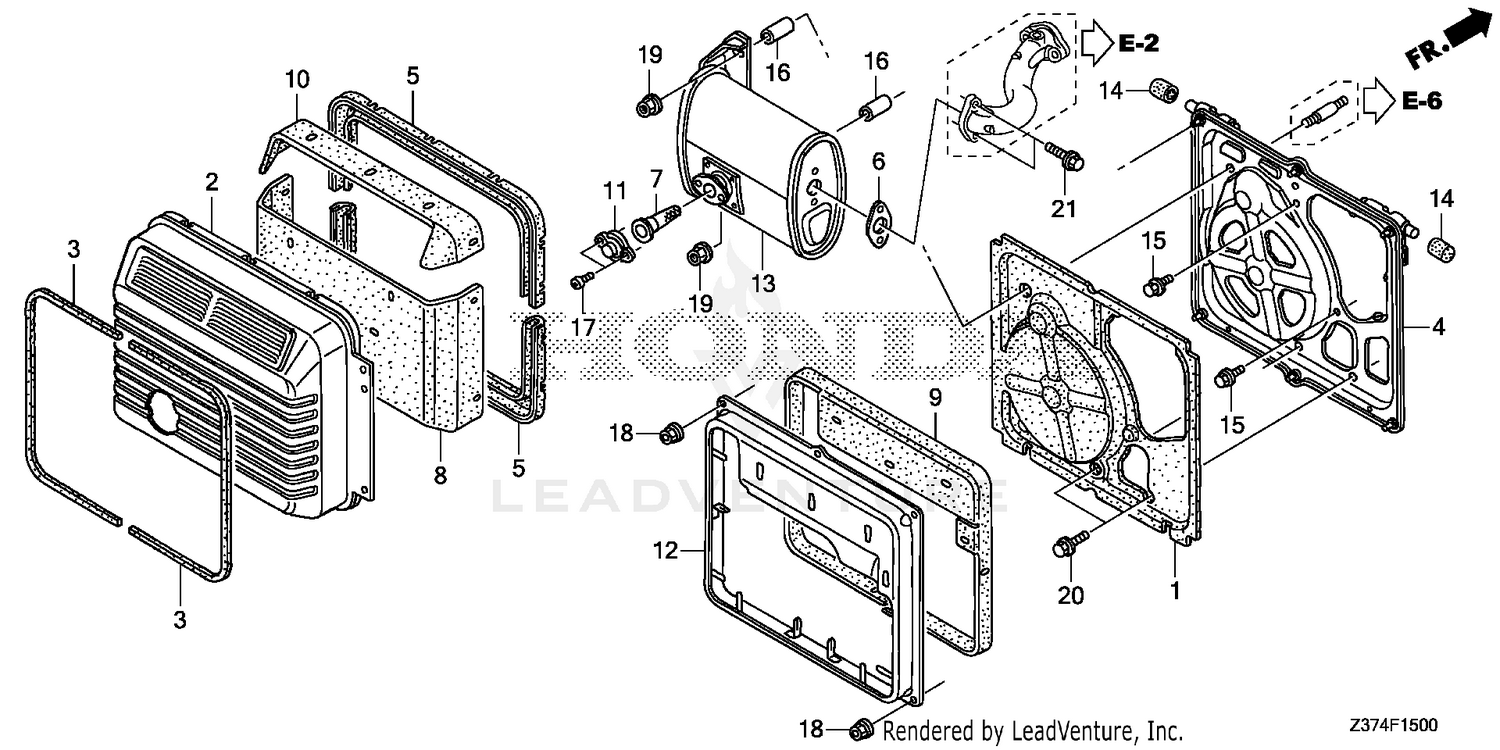

| Ref | Part Number | Description |
|---|
| 1 |
18318-Z37-A30 |
SEPARATOR, MUFFLER (INNER) Price: $35.62 |
| 2 |
18320-Z25-000ZA |
PROTECTOR, MUFFLER (OUTER) *NH105* (MAT BLACK) Price: $125.12 |
| 3 |
18322-Z37-R50 |
SEAL (10X5X785) Price: $5.20 |
| 4 |
18325-Z11-R30 |
PROTECTOR, MUFFLER (INNER) Price: $117.32 |
| 5 |
18329-Z25-000 |
SEAL, MUFFLER PROTECTOR Price: $29.46 |
| 6 |
18333-ZB7-800 |
GASKET, EX. PIPE Price: $8.08 |
| 7 |
18355-Z11-A30 |
ARRESTER, SPARK Price: $27.48 |
| 8 |
18376-Z11-A60 |
INSULATOR, MUFFLER PROTECTOR (A) Price: $37.68 |
| 9 |
18377-Z25-000 |
INSULATOR, MUFFLER PROTECTOR (B) Price: $32.02 |
| 10 |
18378-Z25-000 |
INSULATOR, MUFFLER PROTECTOR (C) Price: $12.06 |
| 11 |
18390-Z25-000 |
PIPE, EX. TAIL Price: $40.08 |
| 12 |
18510-Z37-R50 |
GUIDE, EX. AIR Price: $25.34 |
| 13 |
18710-Z37-010 |
MUFFLER COMP Price: $417.26 |
| 14 |
50388-Z11-000 |
RUBBER, STOPPER Price: $0.86 |
| 15 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 16 |
91554-Z25-000 |
COLLAR, MUFFLER Price: $3.86 |
| 17 |
93500-05016-4J |
SCREW, PAN (5X16) Price: $1.36 |
| 18 |
94050-06070 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) Price: $1.82 |
| 19 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 20 |
95701-08016-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767). Price: $2.20 |
