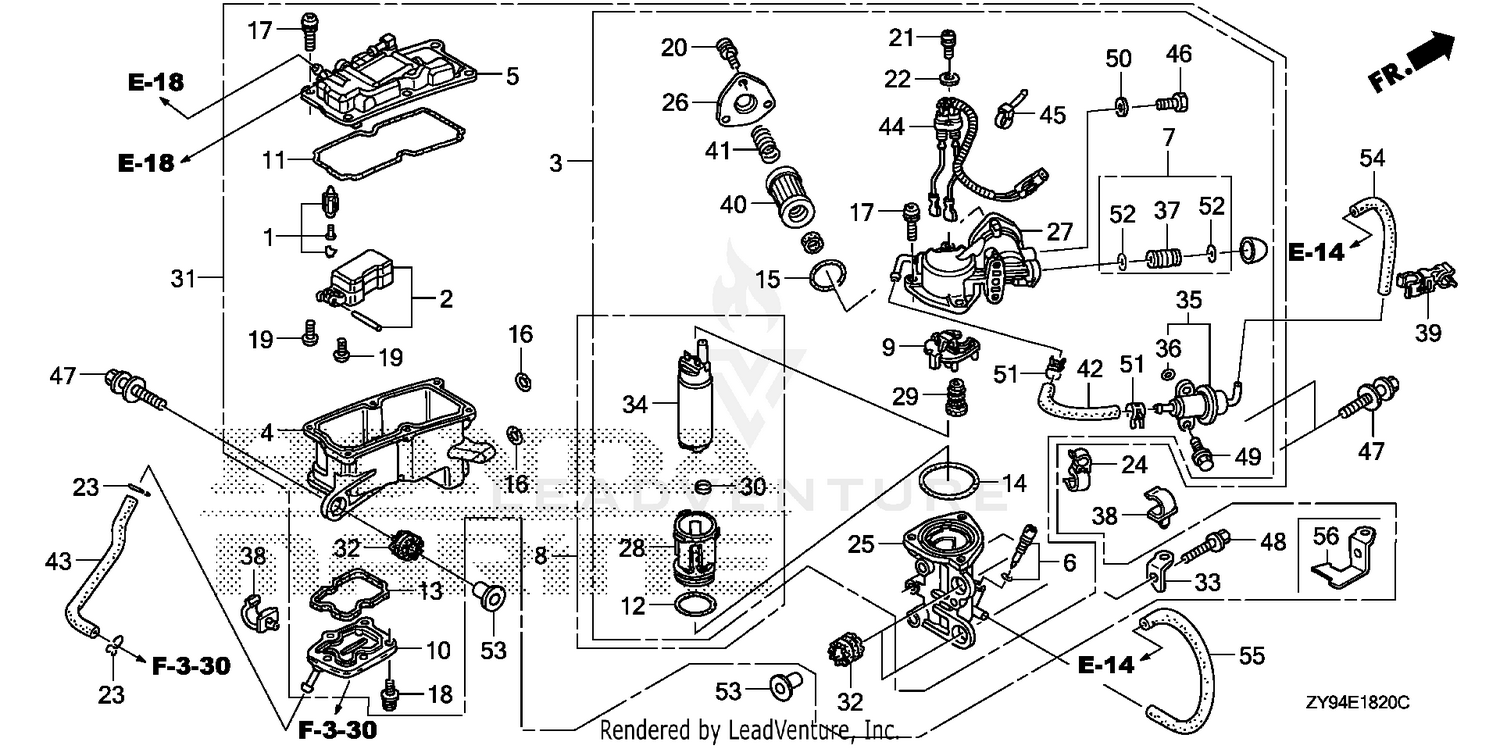

| Ref | Part Number | Description |
|---|
| 1 |
16011-ZY3-A01 |
SEE PART DETAILS - PRI; VALVE SET, FLOAT Price: $58.62 |
| 2 |
16013-ZY9-000 |
FLOAT SET Price: $107.22 |
| 3 |
16017-ZY9-M01 |
PUMP UNIT SET Price: $1,063.90 |
| 4 |
16019-ZY9-003 |
BODY Price: $230.38 |
| 5 |
16020-ZY9-013 |
COVER Price: $338.80 |
| 6 |
16024-ZY3-000 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN (CARBURETOR NO.) Price: $16.68 |
| 7 |
16026-ZY3-000 |
JOINT SET Price: $13.00 |
| 8 |
16036-ZY6-003 |
PUMP UNIT, FUEL (B) (MSDS) Price: $471.32 |
| 9 |
16042-ZY9-013 |
HOLDER Price: $12.82 |
| 10 |
16061-ZY9-003 |
COVER, WATER JACKET Price: $42.88 |
| 11 |
16071-ZY9-003 |
O-RING Price: $13.44 |
| 12 |
16072-ZY3-000 |
O-RING Price: $11.54 |
| 13 |
16072-ZY9-003 |
GASKET Price: $16.48 |
| 14 |
16073-ZY3-000 |
O-RING Price: $14.40 |
| 15 |
16073-ZY9-003 |
O-RING Price: $16.48 |
| 16 |
16077-ZY3-000 |
O-RING Price: $14.40 |
| 17 |
16081-ZW5-010 |
SEE PART DETAILS - PRI; SCREW-WASHER Price: $5.72 |
| 18 |
16081-ZY9-003 |
SCREW-WASHER Price: $8.80 |
| 19 |
16082-ZY3-000 |
SCREW, PAN Price: $5.20 |
| 20 |
16082-ZY9-003 |
SCREW-WASHER Price: $9.44 |
| 21 |
16083-ZY3-000 |
SCREW, WASHER Price: $4.26 |
| 22 |
16087-ZY3-000 |
WASHER, PLAIN Price: $7.58 |
| 23 |
16163-GHB-610 |
CLIP, TUBE (ENGINE NO.) Price: $2.28 |
| 24 |
16193-ZY3-A00 |
CLAMP, CHECK VALVE Price: $6.28 |
| 25 |
16701-ZY9-003 |
CASE, PUMP Price: $281.06 |
| 26 |
16708-ZY9-003 |
COVER B, PUMP Price: $181.80 |
| 27 |
16715-ZY9-013 |
COVER, PUMP (A) Price: $202.38 |
| 28 |
16718-ZY6-013 |
INSULATOR Price: $31.66 |
| 29 |
16721-ZZ5-003 |
INSULATOR This part replaces 16721-ZY9-003. Price: $23.72 |
| 30 |
16723-ZY6-003 |
RING Price: $13.50 |
| 31 |
16730-ZY9-M03 |
VAPOR SEPARATOR Price: $1,301.68 |
| 32 |
16733-ZY9-000 |
GROMMET, VAPOR SEPARATOR Price: $9.80 |
| 34 |
16735-ZW5-003 |
PUMP UNIT, FUEL (MSDS) Price: $467.02 |
| 35 |
16740-ZY9-003 |
REGULATOR ASSY., PRESSURE Price: $135.58 |
| 36 |
16741-PG7-005 |
O-RING, PRESSURE REGULATOR Price: $5.24 |
| 37 |
16752-ZY3-000 |
JOINT, FUEL PIPE Price: $10.08 |
| 38 |
16896-ZY9-003 |
CLAMP B, FUEL TUBE Price: $3.84 |
| 39 |
16898-ZY9-003 |
CLAMP D, FUEL TUBE Price: $5.28 |
| 40 |
16911-ZY3-010 |
SEE PART DETAILS - PRI; SCREEN, FUEL STRAINER Price: $69.12 |
| 41 |
16913-ZY9-003 |
SPRING, COMPRESSION Price: $9.14 |
| 43 |
19255-ZY9-000 |
TUBE A, WATER Price: $5.18 |
| 44 |
32166-ZY9-013 |
HARNESS Price: $179.30 |
| 45 |
32168-ZW5-003 |
BAND Price: $2.10 |
| 46 |
90009-PP4-E01 |
BOLT, SEALING (6MM) Price: $9.86 |
| 47 |
90014-ZY9-M01 |
BOLT-WASHER (8X35) Price: $3.74 |
| 48 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) This part replaces 90016-ZW9-000. Price: $2.56 |
| 49 |
90021-ZZ5-M01 |
BOLT, FLANGE (6X14) Price: $1.56 |
| 50 |
90430-PD6-003 |
SEE PART DETAILS - PRI; WASHER, SEALING (6MM) Price: $6.04 |
| 51 |
90601-ZW5-030 |
CLAMP, TUBE (D10.7) Price: $2.50 |
| 52 |
91301-MJ0-003 |
O-RING (7.8X1.9) (ARAI) Price: $2.86 |
| 53 |
91504-ZY9-M03 |
COLLAR (8.5X14.5) Price: $7.74 |
| 54 |
95001-35003-60M |
SEE PART DETAILS - PRI; BULK HOSE, FUEL (3.5X3000) (3.5X120) (Honda Code 4260329). Price: $30.32 |
| 55 |
95003-11001-60M |
BULK HOSE, VINYL (5X9X1000) (5X9X240) Price: $7.18 |
