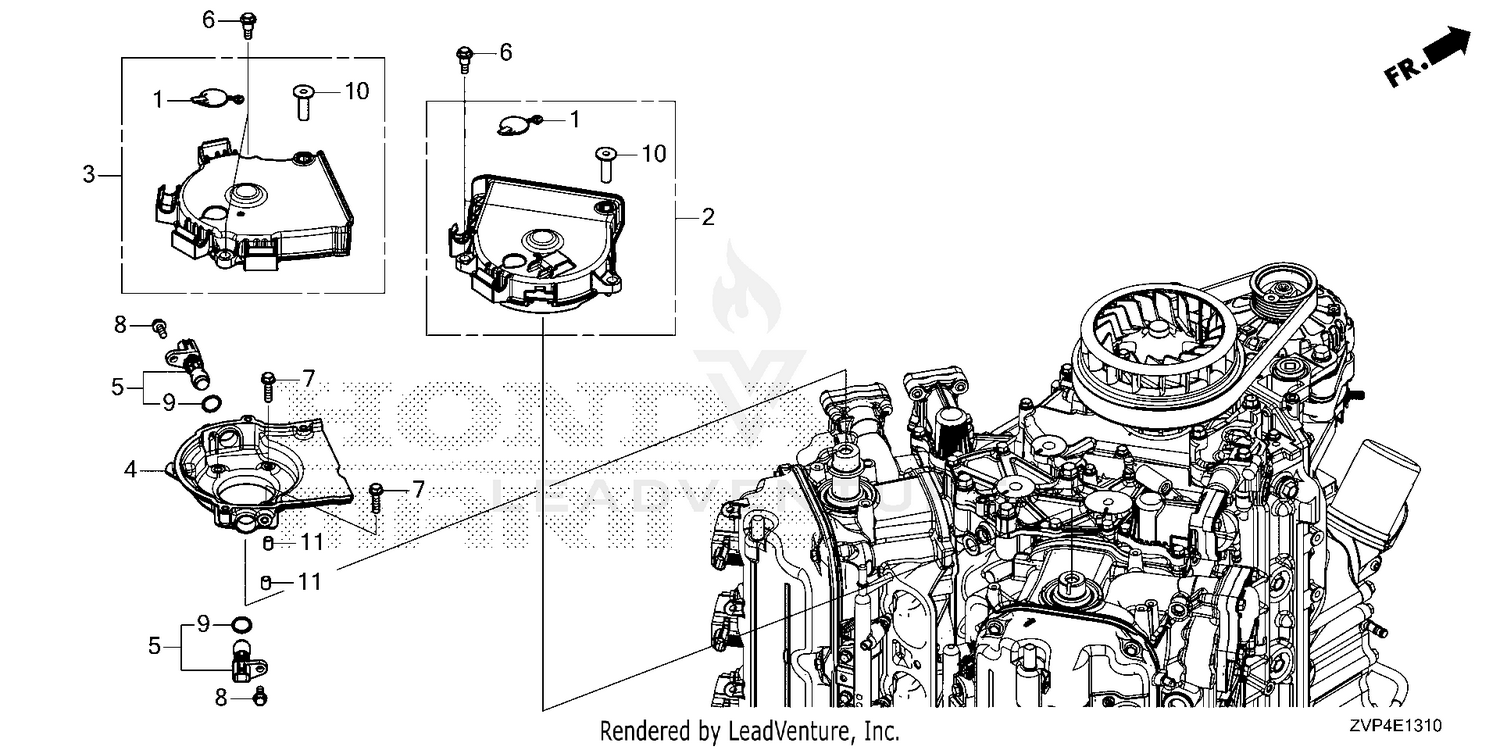

TIMING BELT COVER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11812-P8A-A00 | GROMMET, TIMING BELT COVER Price: $11.56 |
| 2 | 11820-ZVP-000 | COVER ASSY., T/B R Price: $41.82 |
| 3 | 11840-ZVP-000 | COVER ASSY., T/B L Price: $40.42 |
| 4 | 11861-ZVP-000 | PLATE Price: $113.76 |
| 5 | 35695-ZY9-003 | SENSOR ASSY., TDC Price: $123.58 |
| 6 | 90007-ZVL-010 | BOLT, T/B COVER Price: $3.98 |
| 7 | 90014-ZZ5-M01 | BOLT, FLANGE (6X25) Price: $2.56 |
| 8 | 90017-ZZ5-M01 | BOLT, FLANGE (6X16) Price: $1.70 |
| 9 | 91333-PNA-003 | O-RING (15X1.9) Price: $4.14 |
| 10 | 91508-ZVL-000 | COLLAR, TIMING BELT COVER Price: $7.14 |
