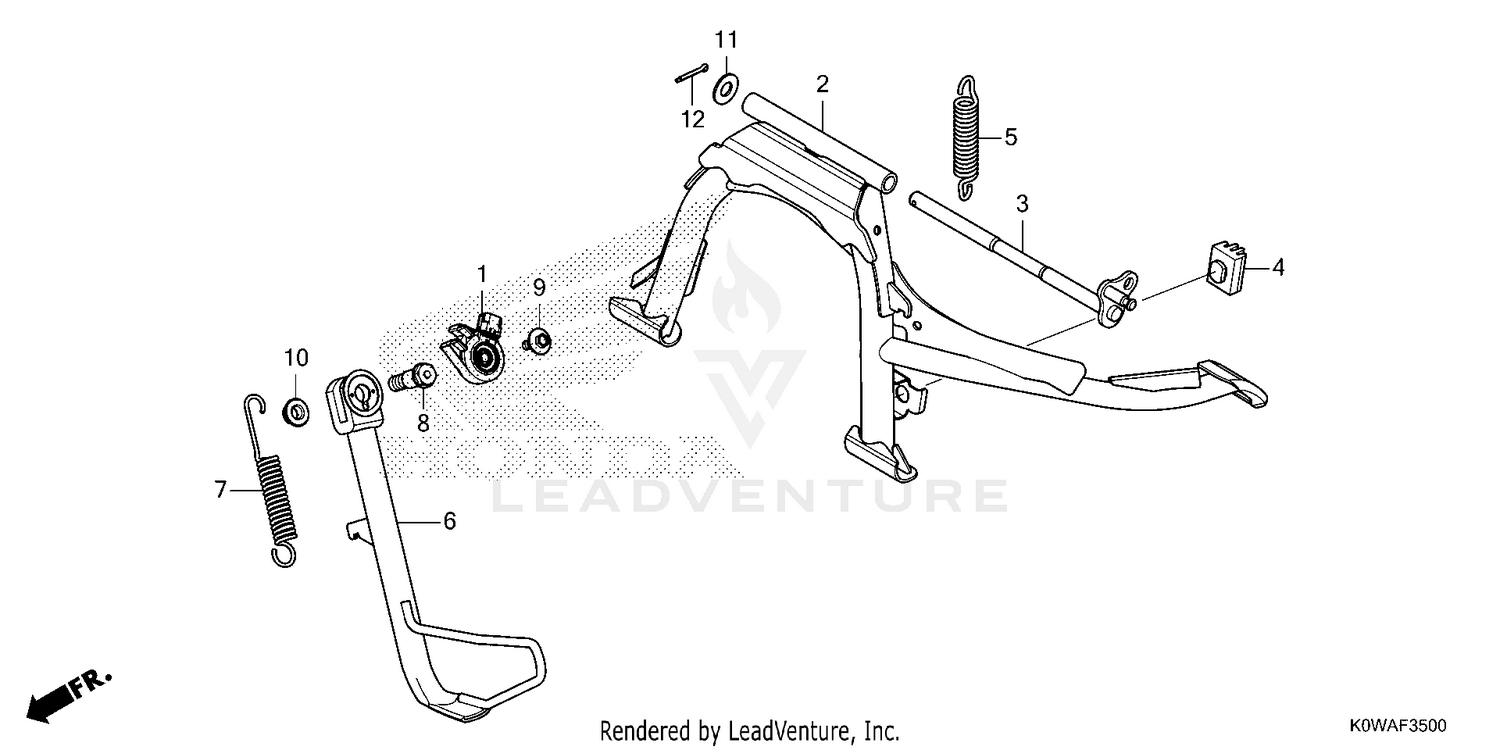

| Ref | Part Number | Description |
|---|
| 1 |
35700-K0J-N01 |
SWITCH, SIDE STAND Price: $15.53 |
| 2 |
50500-K0W-NA0 |
STAND COMP, MAIN Price: $71.29 |
| 3 |
50503-KWN-900 |
SHAFT, MAIN STAND Price: $3.73 |
| 4 |
50505-GR1-710 |
RUBBER, STAND STOPPER Price: $3.11 |
| 5 |
50520-KVB-900 |
SPRING, MAIN STAND Price: $2.27 |
| 6 |
50530-K0W-NA0 |
BAR COMP, SIDE STAND Price: $27.36 |
| 7 |
50535-KW7-900 |
SPRING, SIDE STAND Price: $5.11 |
| 8 |
90108-MK6-670 |
BOLT, SIDE STAND PIVOT Price: $9.78 |
| 9 |
90147-MCE-950 |
BOLT, SPECIAL (6X16) Price: $0.64 |
| 10 |
90203-KVB-900 |
NUT, SIDE STAND Price: $1.98 |
| 11 |
94101-10800 |
WASHER, PLAIN (10.5X22X1.6) Price: $1.97 |
| 12 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30200. Price: $1.08 |
