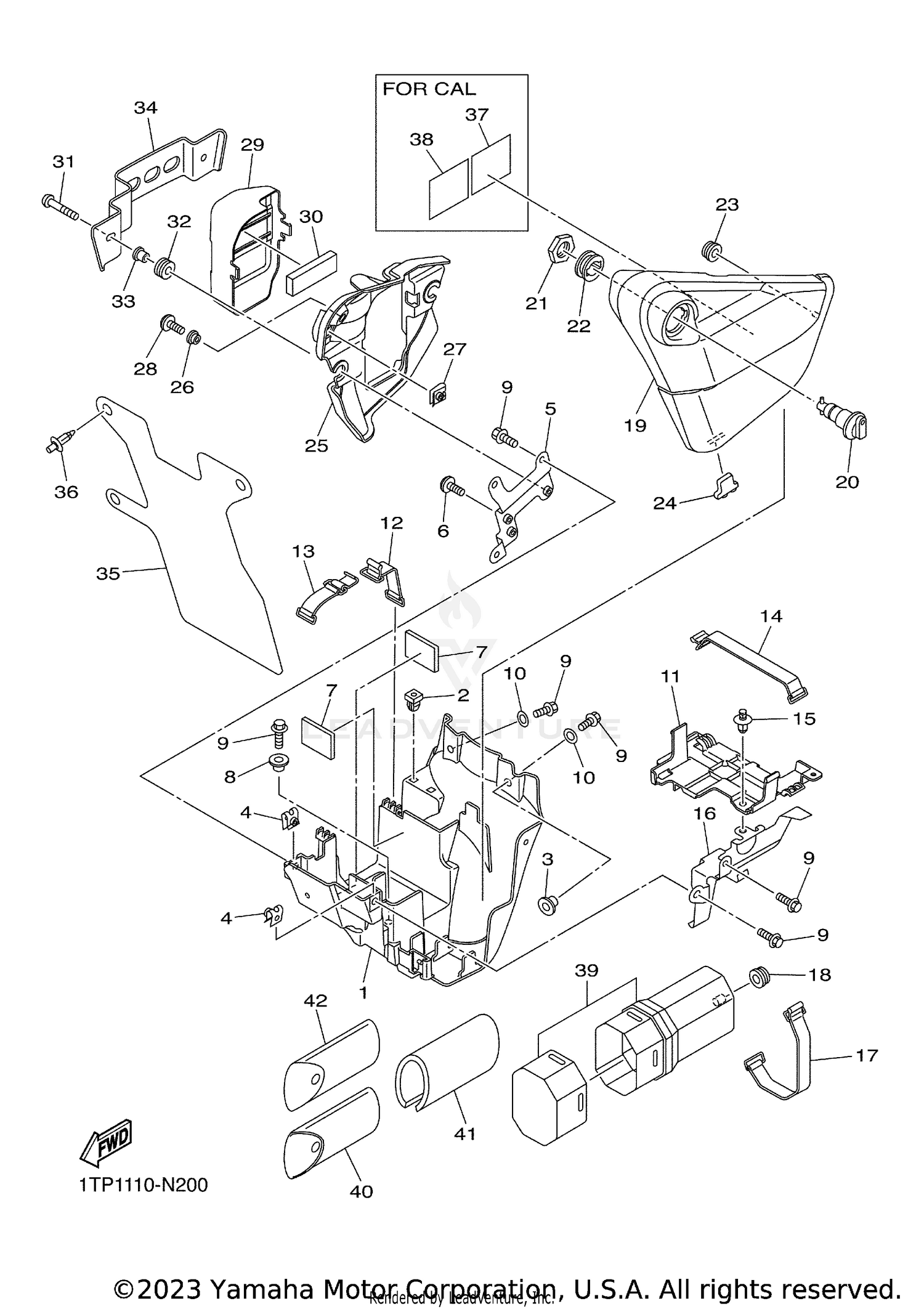

| Ref | Part Number | Description |
|---|
| 1 |
1TP-2177G-01-00 |
BOX, BATTERY Price: $24.99 |
| 2 |
90480-07003-00 |
GROMMET Price: $1.60 |
| 3 |
90387-06239-00 |
COLLAR Price: $1.75 |
| 4 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 5 |
1TP-2172E-00-00 |
STAY, SIDE COVER 1 Price: $13.49 |
| 6 |
92017-06012-00 |
BOLT, BUTTON HEAD Price: $2.65 |
| 7 |
5S7-2139X-00-00 |
DAMPER Price: $1.75 |
| 8 |
90387-06267-00 |
COLLAR Price: $8.49 |
| 9 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 10 |
90201-062P7-00 |
WASHER, PLATE Price: $6.49 |
| 11 |
1TP-2177A-01-00 |
BOX This part replaces 1TP-2177A-00-00. Price: $10.49 |
| 12 |
3TJ-82131-00-00 |
BAND, BATTERY Price: $24.99 |
| 13 |
1TP-82131-00-00 |
BAND, BATTERY Price: $12.49 |
| 14 |
7H3-82131-00-00 |
BAND, BATTERY This part replaces 18G-82131-00-00. Price: $18.99 |
| 15 |
90269-07077-00 |
RIVET Price: $9.49 |
| 16 |
1TP-28170-00-00 |
HOLDER, TOOL Price: $17.49 |
| 17 |
7H3-82131-00-00 |
BAND, BATTERY This part replaces 18G-82131-00-00. Price: $18.99 |
| 18 |
90480-20001-00 |
GROMMET Price: $5.49 |
| 19 |
1TP-21711-00-00 |
COVER, SIDE 1 Price: $30.99 |
| 20 |
55K-21708-00-00 |
LOCK ASSY 2 Price: $86.99 |
| 21 |
90170-22187-00 |
NUT Price: $10.49 |
| 22 |
90480-24186-00 |
GROMMET Price: $9.49 |
| 23 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 24 |
2N4-21717-00-00 |
DAMPER Price: $8.49 |
| 25 |
1TP-21721-00-00 |
COVER, SIDE 2 Price: $28.99 |
| 26 |
90387-06173-00 |
COLLAR Price: $8.49 |
| 27 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 28 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 29 |
1TP-2124E-00-00 |
COVER, BATTERY Price: $15.49 |
| 30 |
4D3-24181-00-00 |
DAMPER, LOCATING 1 Price: $2.85 |
| 31 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 32 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 33 |
90387-0602X-00 |
COLLAR Price: $10.49 |
| 34 |
1TP-2176E-00-00 |
PLATE Price: $56.99 |
| 35 |
1TP-2172W-00-00 |
COVER Price: $28.99 |
| 36 |
90269-06008-00 |
RIVET Price: $9.49 |
| 39 |
BL3-21107-00-00 |
TOOL BOX COMP. Price: $45.99 |
| 40 |
3D8-28100-11-00 |
TOOL KIT Price: $37.99 |
| 41 |
90520-08003-00 |
DAMPER, PLATE Price: $4.55 |
