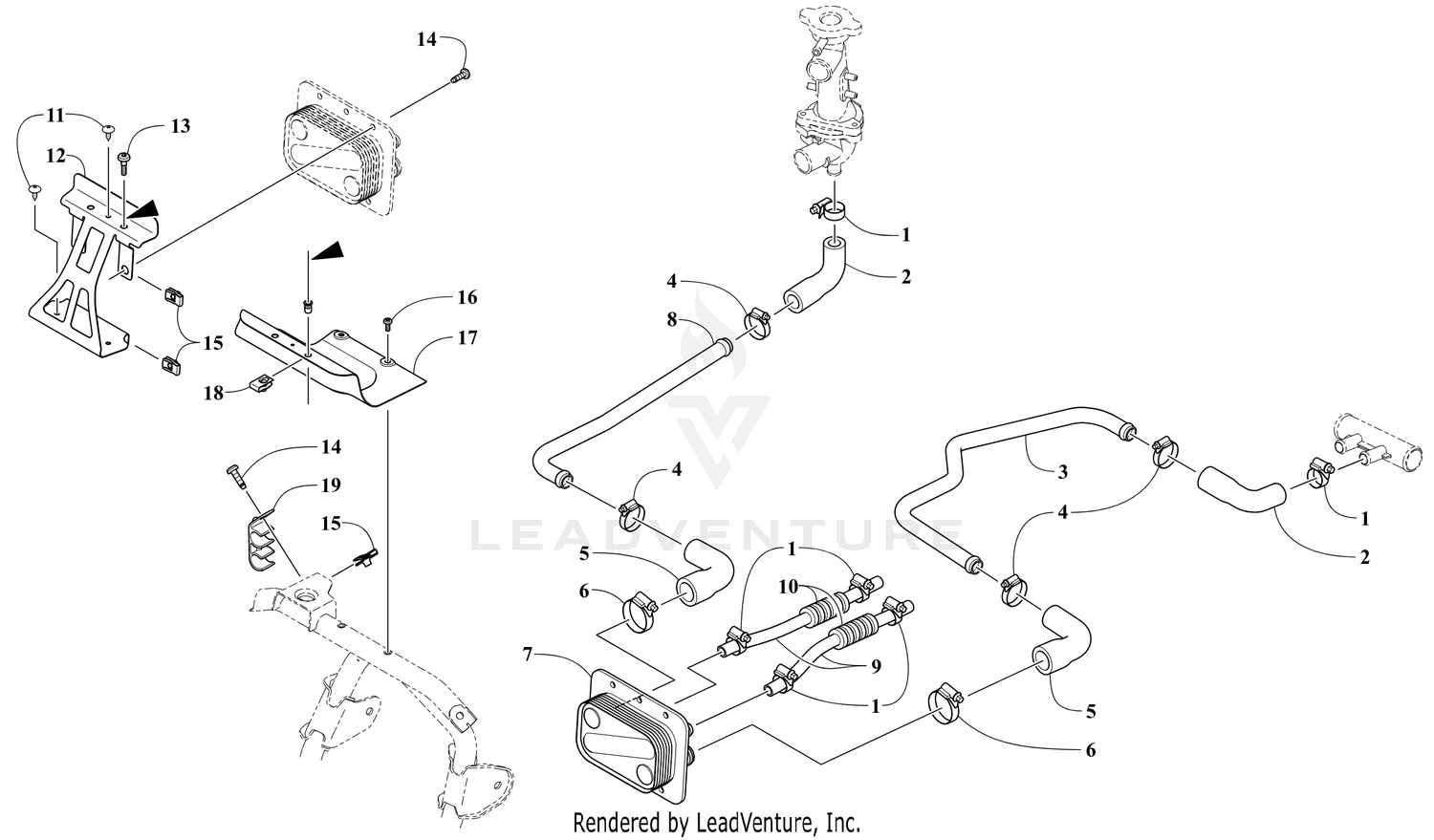

OIL COOLER ASSEMBLY [106317]

Ref	Part Number	Description
1	2623-062	Clamp, Hose Price: $3.26
2	0610-988	Hose, Coolant - Thermostat/Tube Price: $14.49
3	0613-194	Tube, Coolant - Oil Cooler/T-Fitting Price: $33.95
4	1623-182	Clamp, Hose Price: $2.09
5	0610-990	Hose, Coolant Price: $17.92
6	2623-038	Clamp, Hose,20-32MM Price: $3.75
7	2670-394	Cooler, Oil Price: $234.95
8	0613-195	Tube, Coolant - Oil Cooler/ Engine Price: $28.95
9	1610-021	Hose, Oil Price: $181.95
10	1619-668	Loom Price: $165.95
11	2623-166	Screw, Self-Tapping Price: $1.66
12	0713-161	Bracket, Support - Radiator Price: $46.95
13	2623-145	Screw, Shoulder Price: $12.07
14	2623-059	Screw, Machine Price: $2.17
15	0423-577	Clip, U-Nut Price: $0.46
16	8470-510	Screw, Machine Price: $0.71
17	3612-107	Shield, Heat - Midpipe Price: $83.95
18	1623-637	Clip, U-Nut Price: $2.61
