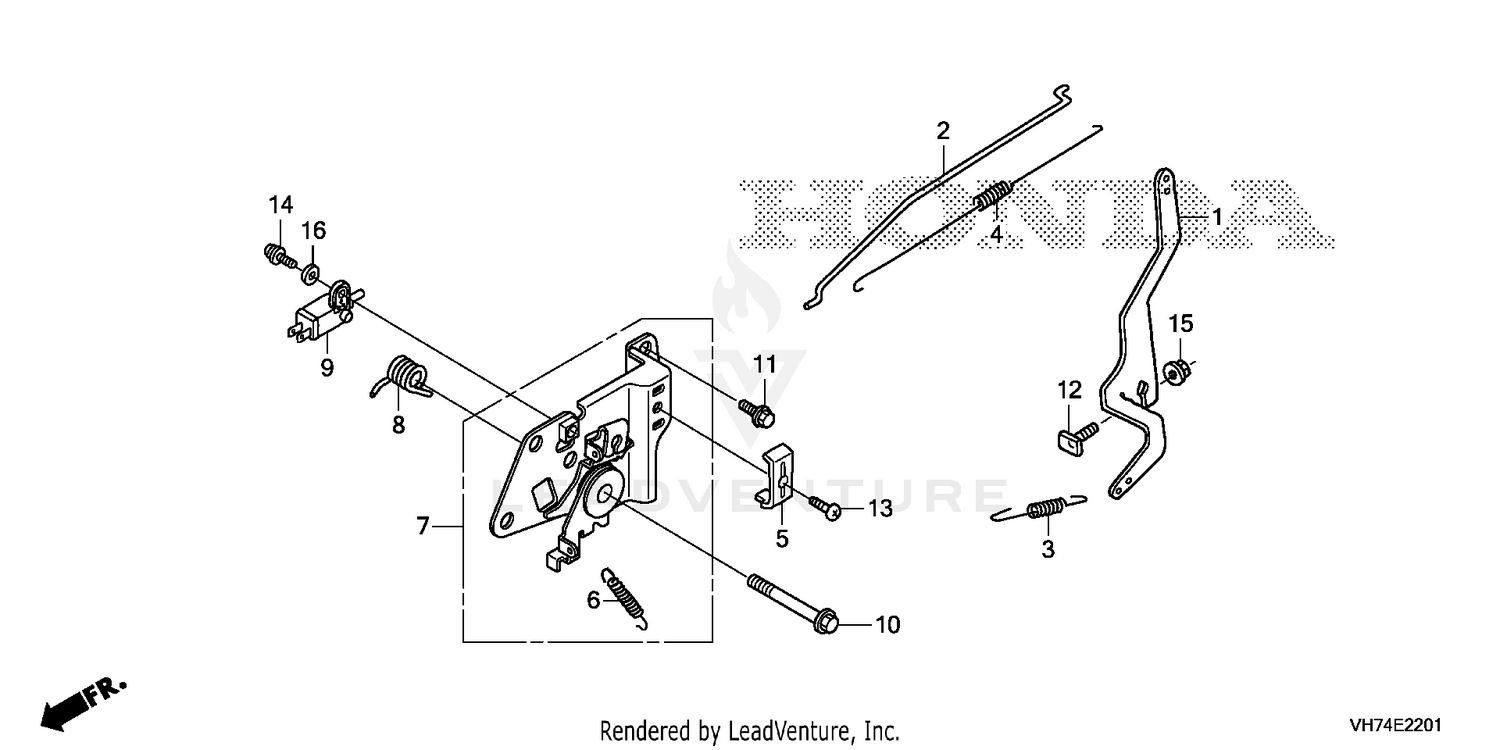

| Ref | Part Number | Description |
|---|
| 1 |
16551-Z9L-000 |
ARM, GOVERNOR Price: $6.30 |
| 2 |
16555-Z9L-000 |
ROD, GOVERNOR Price: $3.62 |
| 3 |
16561-Z9P-000 |
SPRING, GOVERNOR Price: $2.76 |
| 4 |
16562-Z9L-000 |
SPRING, THROTTLE RETURN Price: $2.82 |
| 5 |
16576-891-000 |
HOLDER, CABLE (Honda Code 0800466). Price: $5.08 |
| 6 |
16576-ZE7-300 |
SPRING, LEVER Price: $4.66 |
| 7 |
16580-Z9M-870 |
BASE, CONTROL Price: $21.92 |
| 8 |
16593-Z0L-000 |
SPRING, CONTROL LEVER RETURN Price: $27.40 |
| 9 |
35120-Z9L-811 |
SWITCH ASSY., ENGINE STOP Price: $10.90 |
| 10 |
90014-888-000 |
BOLT, FLANGE (6X50) (Honda Code 0671537). Price: $5.56 |
| 11 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 12 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 13 |
93500-05016-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557). Price: $1.14 |
| 14 |
93892-04012-00 |
SCREW-WASHER (4X12) (Honda Code 0485946). Price: $0.84 |
| 15 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
